| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO: 9001 |
| Model Number: | TND(SVC)-10000VA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 500 Units per Month |
| Product Name: | AVR Voltage Stabilizer | Product Type: | TND(SVC)-10000VA |
|---|---|---|---|
| Rated Capacity: | 10000VA | Protection Class: | IP20 |
| Working Frequency: | 50HZ 60HZ | Insulation: | Class F |
| Highlight: | auto voltage regulator,auto voltage stabilizer |
||
Digital Display Voltage Control Stabilizer 10000VA 220V 50Hz 60Hz For Pumps
1. Product Parameters
| Product Name | AVR Voltage Stabilizer |
| Product Model | TND(SVC)-10000VA |
| Rated Capacity | 10000VA |
| Phase | Single phase |
| Input Voltage Range | 150V-260V |
| Output Voltage | 220V |
| Voltage Stabilization Precision | ±2% |
| Waveform Distortion | Nil |
| Data Dispaly | Digital Voltmeters |
| Protection Class | IP20 |
| Netweight | 45kg for reference |
| Temperature Rise | <80℃ |
| Delay Time | 5 seconds |
| Protection Class | IP20 |
| Protection Functions | Over-voltage, under-voltage, short circuit, over-current, time delay etc. |
2. Product Discription
This product is a single phase AC AVR voltage stabilizer. The model of this stabilizer is TND-10KVA. Its rated capacity is 10KVA. The input voltage is 150-260V while the output voltage can be stabilized at 220V. The output precision is ±2%. It can be used in various occasions. It could be applied for industrial machines, including pumps, machine tools etc. and home appliance like air conditioner, refrigerator, computer etc.
The series of TND(SVC) is single phase voltage stabilizer. The capacity of this series ranges from 500VA to 30KVA. The input and output voltage could be customized according to different requirements. The normal output voltage could be 110V and 220V. The normal input voltage is 150V to 260V. Certainly, the input range can be wider than this if needed.
3. Competitve Advantages
| Wide input range | The input voltage range is 150V to 260V, which could satisfy the normal needs of different customers |
| High output accuracy | The precision is ±2%, which could effectively protect the stabilzier and your machine |
| High efficiency | The power factor of this stabilzier is up to 98% |
| Various protection functions | Over-voltage, over-current, over-load, under-voltage, short circuit etc. |
| Clear digital meters dispaly | Digital input and output display |
| Wide applications | Applicable for different occasions and areas |
| Easy use | Its operation method is very easy |
| Easy maintenance | Nearly no maintenance needed if the stabilizer is normally used |
| Delicate design | The parts are displayed in a proper way, which is beautiful and delicate |
| High-quality parts | The components of this stabilizer are of high quality, which could prolong the lifetime of the machine |
4. Relevant Products
① Voltage stabilizer series
② Transformer series
③ AC DC power supply series
④ Dry type reactor series
⑥ UPS series
⑦ Variable frequency driver series
5. Product Dispaly

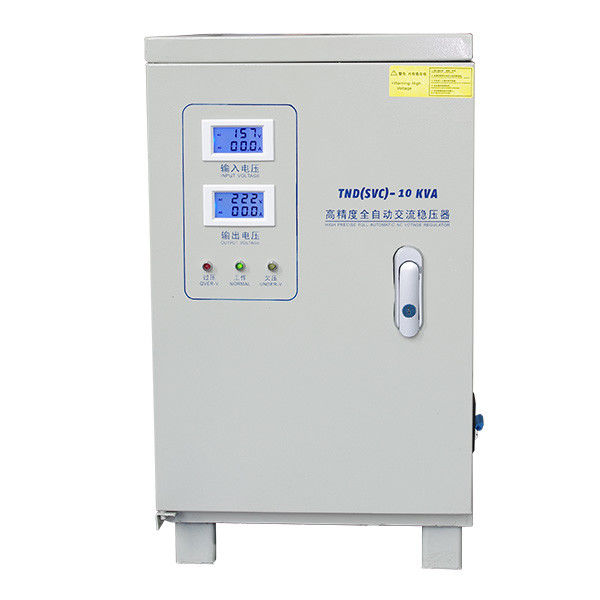

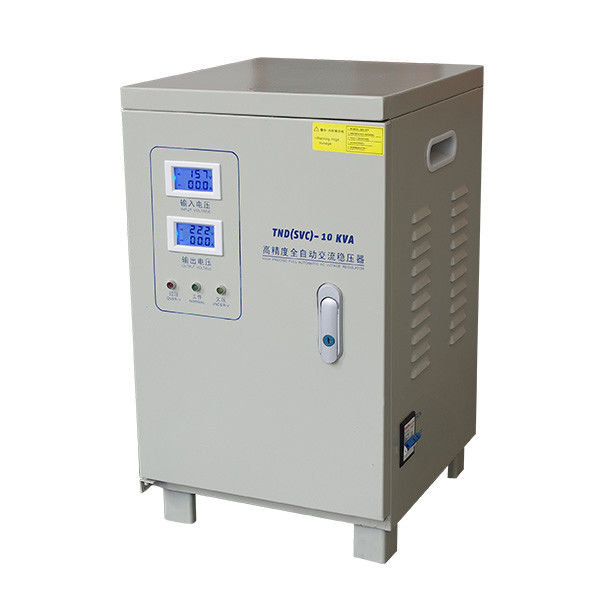

This picture shows the digital volmeters, the working conditions of the stabilizer, the model of this stabilizer, and also the product name of this stabilizer.
