| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO: 9001 |
| Model Number: | WB(DG)-10KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to your quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 200 pcs per Month |
| Name: | AVR Voltage Stabilizer (Regulated Power Supply) | Model: | WB(DG)-10KVA |
|---|---|---|---|
| Rated Capacity: | 10KVA | Phase: | Single Phase |
| Current Type: | AC | Function: | Transforming And Stabilizing Voltage |
| Highlight: | auto voltage regulator,avr voltage regulator |
||

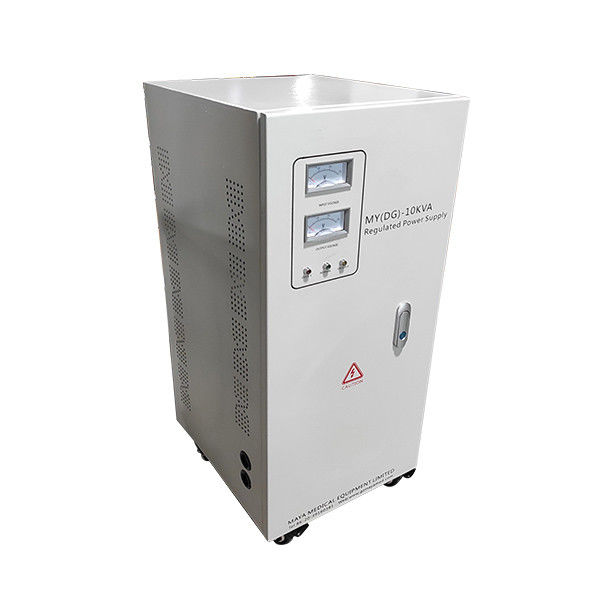

10KVA AVR Voltage Stabilizer 110V To 220V Customized Regulated Power Supply
1. Fundamental Parameters
Product name: AVR voltage stabilizer (Regulated power supply)
Item type: WB(DG)-10KVA
Brand name: Ewen Power
Phase: single phase
Rated capacity: 10KVA
Rated frequency: 50hz/60hz
Input voltage: 110V±20%
Output voltage: 220VAC
Input current: 90A
Output current: 90A
2. Detailed Specifications
| Insulation Class | F or higher as you wanted |
| Insulation Resistance | ≥2 MΩ or 5 MΩ |
| Protection Class | IP20 (normal) or IP44 (waterproof) |
| Working Efficiency | 98% |
| Ambient Altitude | ＜1000m |
| Ambient Temperature | -10℃~45℃ |
| Waveform Distortion | Nil |
| Function | Swtiching and stabilizing voltage |
| Overload Capacity | Maintaining 30 seconds with 120% of its rated capacity/working continuously with 80% of its rated capacity |
| Major Parts | Transformer and stabilzier |
3. Working Theory and Applications
This product is an integrated electrical machine for transforming voltage first and stabilizing voltage subsequently. It's a regulated power supply. The input voltage of this product is 110V single phase while the output voltage is 220V single phase. The transformer could realize the function of transforming the voltage. However, if the input voltage is not stable, the stabilizer could work automatically to stabilize the voltage at 220V.
So when your input voltage is not stable and when you want to transform the input voltage to a certain voltage, you could use this kind of product. It could realize two functions at the same time.
It is widely used for imported or exported electrical products of which the rated voltage is not the same with the one in your own country or area.
4. FAQ
Q1: How long is the lead time for such a customized product?
A1: Three to five days for 1 unit normally. If large quantity, it depends on the actual conditions.
Q2: Would you accept OEM and ODM?
A2: Yes, certainly. You could put forward your requirements.
Q3: What's the payment terms?
A3: We accept different payment ways, like TT, L/C, or etc. As for the deposit, it depends on the product you want to buy.
Q4: What about the warranty?
A4: We provide a one-year guarantee period for all customers. If there is any problem, please feel free to contact us. We would try our best to help you with it.
Q5: How should I keep the machine working longer?
A5: Firstly, 80% loads of its rated capacity at most when it works. Then keep it clean. Last, use it in a correct way.
5. More pictures
The inner layout of this regulated power supply. This part is the stabilizer.
This part is the transformer. You could see how to connect input and output wires accordingly.

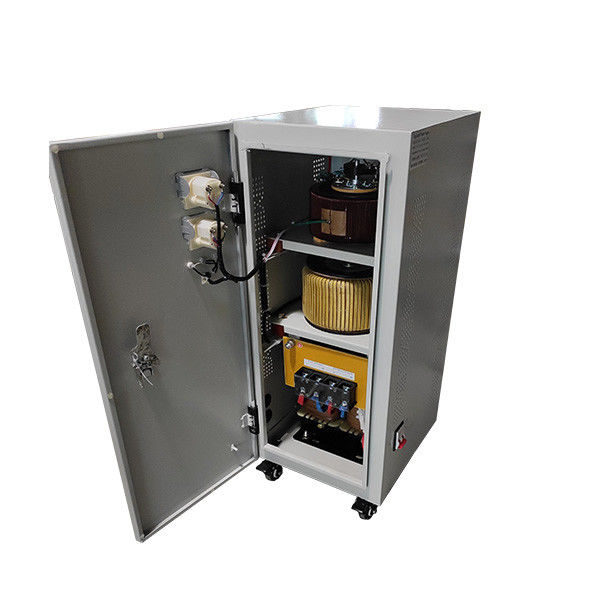

Through this picture, you could see the door and the connection between the main parts of the machine and the meters.
This is the bottom half of the stabilizer. You could see the omni-wheels and the air switch.
