| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO: 9001 |
| Model Number: | TNS(SVC)-30KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 200 pcs per Month |
| Current Type: | AC | Response Time: | ＜1s |
|---|---|---|---|
| Phase: | Three Phase | Display: | Analog Meters |
| Enclosure Color: | Silver Color | Warranty: | 12 Months |
| Highlight: | three phase automatic voltage regulator,3 phase voltage stabilizer |
||

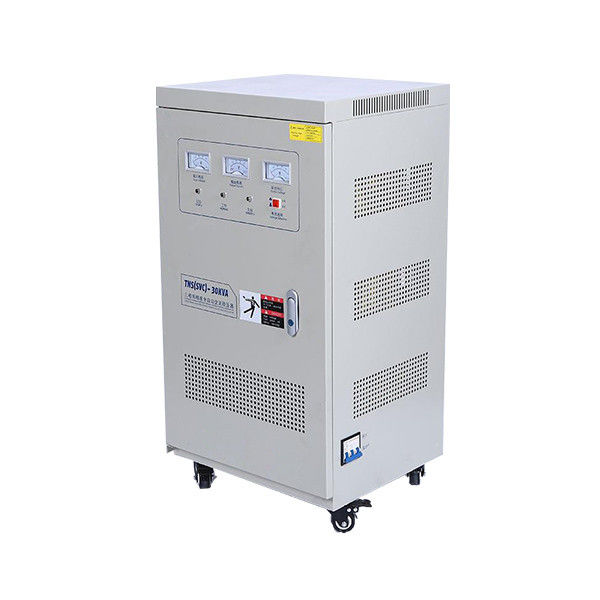

50Hz 60Hz 3 Phase Voltage Stabilizer 30kva 420V With Analog Meters Display
1. Basic Parameters
Name: Three Phase Voltage Stabilizer
Type: TNS(SVC)-30KVA/30000VA
Brand: Ewen
Phase: Three
Input V: 380V/400V/420V/440V±20%
Output V: 380V/400V/420V/440V
Frequency: 50Hz 60Hz
Input Current: 45A(for 380V output)
Output Current: 45A(for 380V output)
Insulation: Class F
Response Time: Less than 1 Second
Size: 460*420*880mm
Weight:105kg(for reference)
Electrical Strength: 2000VAC/1MIN
Product Function: Voltage Stabilization
2. More Technical Specification
| Insulation Resistance | ≥2 MΩ |
| Voltage Stabilization Precision (Output Accuracy) | ±2% |
| Power Factor | 98% |
| Ambient Temperature | -10℃~40℃ |
| Ambient Altitude | ＜1000M |
| Ambient Humidity | ＜90% |
| Protection Class | IP23 |
| Waveform Distortion | No additional Waveform Distortion |
| Protection Functions | High voltage, low voltage, short circuit, over-current, over-load etc. |
| Over-load Capacity | 30s with 120% of its rated capacity |
3. Major Components
| Servo motors | Copper Coils for Regulating Voltage |
| Carbon brush | Aluminum Coils for Compensating Voltage |
| Integrated Circuits | Enclosure |
| Air Switch | Omni-directional Wheels |
| Copper Wires | Analog Meters |
4. Main Features
① Analog meter display: it's convenient for customers to get data of the circuit.
② Durable carbon brush: it could improve the performance of the stabilizer and prolong the lifetime of it.
③ Fast response time: it's just one minute for the machine to react and stabilize the voltage.
④ High output accuracy: it can be ±2% of the rated output voltage, which could ensure the normal work of the electrical machine.
⑤ Reasonable design: the wires are displaying in a tidy way so as to keep the stabilzier looking delicate.
⑥ Heat dissipation: there are many ventilation holes on the enclosure to ensure a good ventilation of the machine, in case of very high temperature.
⑦ Suitablity for all kinds of loads: whether the load is inductive or capacitive or resistant, the stabilizer could work normally with them.
5. Product Details:

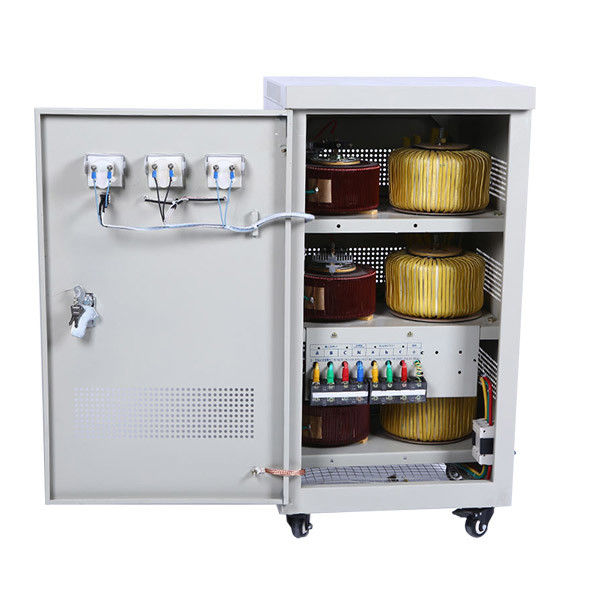

This picture shows the back of the door of the stabilizer enclosure. There are three meters here to show input voltage, output voltage, and output current.
This is the bottom half of the stabilizer, which shows you the omni-directional wheels, the door, and some other details of this product.
Please see the wiring, the coil, and the air switch here.
This picture shows the omni-directional wheel and the air switch.
If you have any other questions, please feel free to contact us through emai or other ways. We would respond to your inquiries within 24 hours. Wish a successful cooperation between you and me.
