| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO: 9001 |
| Model Number: | TND(SVC)-30KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 400 pcs per Month |
| Item Name: | Single Phase Voltage Stabilizer | Rated Power: | 30KVA |
|---|---|---|---|
| Output Voltage: | 220V2P | Rated Frequency: | 50HZ/60HZ |
| Enclosure: | Black | G.W.: | 90kg For Reference |
| Highlight: | single phase voltage regulator,industrial voltage stabilizer |
||
Black Encclosure Single Phase Voltage Stabilizer 30KVA Voltage Regulator 220v Ac
1. Quick Details
Product name: single phase voltage stabilizer (220V voltage stabilizer)
Product Model: TND-30KVA
Rated capacity: 30KVA
Rated working frequency: 50Hz/60Hz
Input voltage: 150VAC to 260VAC (ultra low and ultra high voltage could be customized if needed)
Output voltage: 200VAC/220VAC/110VAC (or single phase voltage as you request)
Place of origin: Shanghai, China
Certificates obtained: CE, ISO:9001
Ambient temperature: -10℃~50℃
Ambient humidity: 20%-90%
Ambient altitude: ＜2000m
Respnse time: ＜1s when the input voltage fluctuates less than 15V
Enclosure: black color
Display: meter display
2. Product Description
TND series single phase high precision automatic AC voltage stabilizer/regulator is a very normal product used in electric industry. It is often used as a stable power supply for electrical appliance. It's an ideal option if the voltage fluctuates frequently.
The rated capacity of this product is 30KVA. There are many types of single phase voltage stabilizer/regulator. 500VA to 50KVA is all available for you. The normal input voltage range of this stabilizer is 160V to 250V, and the normal output voltage is 220V. However, it could be tailored according to customers' needs. For example, the output voltage could be 110V or 220V. The input voltage range could be ultra high or ultra low voltage, like 70-130V.
3. Major Components Description
| Voltage regulating coil | Copper made | Good electrical conductivity |
| Voltage compensating coil | Aluminum made | Compensating voltage automatically |
| Circuit board | Made of high quality electron components | Stable performance |
| Carbon brush | 1017 type | Wearproof characteristic |
| Servo motor | Low noise and high quality | Long lifetime |
| Air switch | Famous brand | Protecting the circuit |
| Omni-directional wheels | Strong load-bearing capability | Facilitating the movement of the product |
| Enclosure | Black color | Protecting the whole components |
4. TND Series Product Model
| Model | Rated Capacity | Size (L*W*H) MM | Weight (KG) |
| TND(SVC)-500VA | 500VA | 190*160*135 | 4 |
| TND(SVC)--1000VA | 1000VA | 220*200*160 | 5.5 |
| TND(SVC)--1500VA | 1500VA | 220*200*160 | 5.8 |
| TND(SVC)--2000VA | 2000VA | 240*270*200 | 10 |
| TND(SVC)--3000VA | 3000VA | 230*295*250 | 12 |
| TND(SVC)--5KVA | 5KVA | 230*320*270 | 15 |
| TND(SVC)--7KVA | 7KVA | 250*420*360 | 16.5 |
| TND(SVC)--10KVA | 10KVA | 280*340*550 | 30 |
| TND(SVC)--15KVA | 15KVA | 340*385*655 | 64 |
| TND(SVC)--20KVA | 20KVA | 380*430*480 | 70 |
| TND(SVC)--30KVA | 30KVA | 380*430*480 | 95 |
| TND(SVC)--40KVA | 40KVA | 430*490*900 | 118 |
| TND(SVC)--50KVA | 50KVA | 430*490*1260 | 136 |

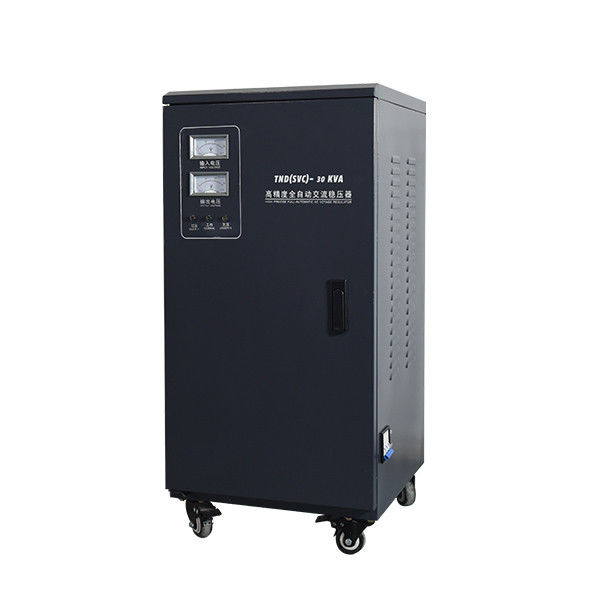

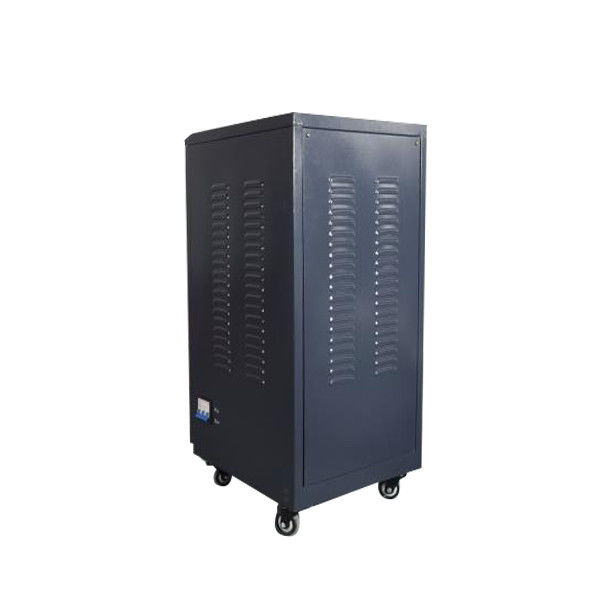

5. Product Pictures
