| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO: 9001 |
| Model Number: | TND(SVC)-10KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 400 pcs per Month |
| Phase: | Single Phase | Display: | Digital |
|---|---|---|---|
| Power: | 10KVA | Frequency: | 60Hz 50Hz |
| Type: | AVR | Output: | 220V |
| Highlight: | single phase voltage regulator,industrial voltage stabilizer |
||

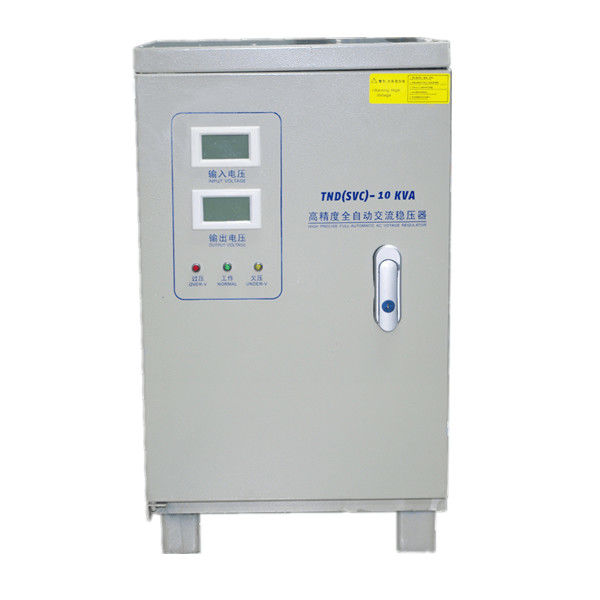

60HZ Single Phase Voltage Stabilizer 220V 10KVA AVR With Digital Display
1. TND-10KVA Specification
| Product Name | Single Phase Voltage Stabilizer | Product Brand | Ewen Power |
| Input | Voltage | 160-250VAC | or Customized |
| Frequency | 50HZ | 60HZ | |
| Display | Voltmeter | ||
| Output | Voltage | 220V | or Customized |
| Frequency | 50HZ | 60HZ | |
| Display | Voltmeter | ||
| Working Environment | Temperature | -10℃~45℃ | |
| Altitude | ＜1000m | ||
| Humidity |
20%~90% |
||
| Others | Well-ventilated | ||
| Techinical Parameters | Response Time | 1s when voltage fluctuates less than 15V | |
| Insulation Class | F | ||
| Insulation Resistance | MΩ | ||
| Power Factor | 98% | ||
| Waveform | No addtional distortion | ||
| Current type | AC | ||
| Protections | Short Circuit | ||
| Over-voltage | |||
| Under-voltage | |||
| Over-current | |||
| Appearance | Size | 280*340*550mm | |
| Enclosre | Silver Color | ||
If you want to know more information that is not mentioned above, please feel free to contact us.
2. Product Description
The product described here is a single phase voltage stabilizer/regulator. The rated capacity is 10KVA, with input voltage range 160-250V and output voltage 220V. The rated working frequency is 50Hz to 60Hz.
The technical specifications could be customized according to your requests. If you have special request, you could propose to us. We could tailor the product as you need.
The product could be used in many occasions. It could be used for house appliance. Besides, it could be used in places like hospitals, schools, and hotels where needs stable single phase voltage. What's more, it could be used with electrical equipment that needs steady single phase voltage supply.
3. Specifications of TND Series Products
| Type | Capacity | Rated Input and Output Current | Size (L*W*H) CM | Weight (KG) |
| TND-500VA | 500VA | 2.27A | 190*160*135 | 4 |
| TND-1000VA | 1KVA | 4.55A | 220*200*160 | 5.5 |
| TND-1500VA | 1.5KVA | 6.82A | 220*200*160 | 5.8 |
| TND-2000VA | 2KVA | 9.09A | 240*270*200 | 10 |
| TND-3000VA | 3KVA | 13.64A | 230*295*250 | 12 |
| TND-5KVA | 5KVA | 22.73A | 230*320*270 | 15 |
| TND-7.5KVA | 7.5KVA | 34.09A | 250*420*360 | 16.5 |
| TND-10KVA | 10KVA | 45.45A | 280*340*550 | 30 |
| TND-15KVA | 15KVA | 68.18A | 340*385*655 | 64 |
| TND-20KVA | 20KVA | 90.91A | 380*430*480 | 70 |
| TND-30KVA | 30KVA | 136.36A | 380*430*480 | 95 |
| TND-40KVA | 40KVA | 181.82A | 430*490*900 | 118 |
| TND-50KVA | 50KVA | 227.27A | 430*490*1260 | 136 |
4. Major Competitveness of Our Product and Company
① High-quality: the voltage stabilizer could work for more than ten years due to its high quality components.
② Competitve price: we are both a manufacturer and a trading company. So the price is competitive compared with other trading companies and agencies.
③ Professional expertise: we have professional technicians who designs products in a very responsible manner. Also, OEM and ODM is welcome.
④ Fast delivery: we have a professional manufacturing team, of which the members works very efficient.
⑤ Comprehensive services: we provide pre-sale services, on-purchase services, and aftersale services for you.
5. Product Details:
The inner parts of this 10KVA single phase voltage stabilizer are clearly shown through this picture. The design of it is also very beautiful.
