| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO: 9001 |
| Model Number: | TND(SVC)-30KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 400 pcs per Month |
| Product: | Automatic Voltage Regulator | Power: | 30KVA |
|---|---|---|---|
| Voltage: | 220V/110V | Frequency: | 50Hz-60Hz |
| Function: | Voltage Stabilization | Phase: | Single Phase |
| Highlight: | automatic voltage stabiliser,automatic voltage stabilizer |
||
30KVA Automatic Voltage Regulator Stabilizer Single Phase 220V 110V No Noise
1. Product Components
The chart below mainly introduces the major components of the 30KVA singple phase automatic voltage regulator:
| Copper coil |
Copper coil functions in regulating voltage automatically when the input voltage fluctuates. |
| Aluminum coil | The aluminum coil's function is voltage compensation. |
| Carbon brush |
The 1017 carbon brush moves along the copper coil to help regulate the voltage. |
| Circuit board |
The circuit board controls the whole circuit and gives out signals when the input voltage changes. |
| Servo motor | It drives the carbon brush to move. |
| Enclosure |
It is iron-made and painted in silver-white. It protects all the parts of the automatic voltage regulator. |
2. Product Specifications
The chart below introduces the basic parameters of the 30KVA single phase automatic voltage regulator:
| Name |
Automatic voltage regulator |
Brand | Ewen Electrical |
| Type | TND-30KVA | Power | 30KVA/30000VA |
| Rated Frequency | 50~60Hz | Input Voltage | 150~260V or tailored |
| Working Efficiency | 98% | Output Voltage | 220V±2% or tailored |
| Input Current | 136.36A | Output Voltage | 136.36A |
| Insulation Class | F | Temperature Rise | -15~45℃ |
|
Load-bearing Capability |
Maintaining 30 seconds for double rated current |
Respond time |
Less than one second against 10%'s voltage fluctuation |
| Dielectrical strength | 2000VAC/MIN | Waveform Distortion | Distortionless (sine wave) |
| Display |
Ampere meters and voltmeters |
Enclosure | Yes |
3. Single Phase Automatic Voltage Regulator/Stabilizer
The chart below shows the basic parameters of single phase automatic voltage regulator:
| Model | Capacity | Size (L*W*H) | Weight | Input | Output |
| SVC-500VA | 0.5KVA | 190*160*135mm | 4kg | 160-250V | 220V |
| SVC-1000VA | 1KVA | 220*200*160mm | 5kg | 160-250V | 220V |
| SVC-1500VA | 1.5KVA | 220*200*160mm | 6kg | 160-250V | 220V |
| SVC-2000VA | 2KVA | 240*270*200mm | 10kg | 160-250V | 220V |
| SVC-3000VA | 3KVA | 230*295*250mm | 12kg | 160-250V | 220V |
| SVC-5000VA | 5KVA | 230*320*270mm | 15kg | 160-250V | 220V |
| SVC-7500VA | 7.5KVA | 250*420*360mm | 18kg | 160-250V | 220V |
| SVC-10KVA | 10KVA | 280*340*550mm | 30kg | 160-250V | 220V |
| SVC-15KVA | 15KVA | 340*385*655mm | 65kg | 160-250V | 220V |
| SVC-20KVA | 20KVA | 380*430*480mm | 70kg | 160-250V | 220V |
| SVC-30KVA | 30KVA | 380*430*480mm | 96kg | 160-250V | 220V |
| SVC-40KVA | 40KVA | 430*490*900mm | 120kg | 160-250V | 220V |
| SVC-50KVA | 50KVA | 430*490*1260mm | 135kg | 160-250V | 220V |
4. Applications
① The product could be used for household appliances, like air conditioner, refrigerator, TV, induction cooker, rice cooker etc.
② It can be applied in places including school, hotel, hospital, and other places with fluctuating voltage.
③ It can be used with electrical appliance like computer, printing machine, pumps etc.
④ It could be used as a power supply in any place needing stable single phase voltage.

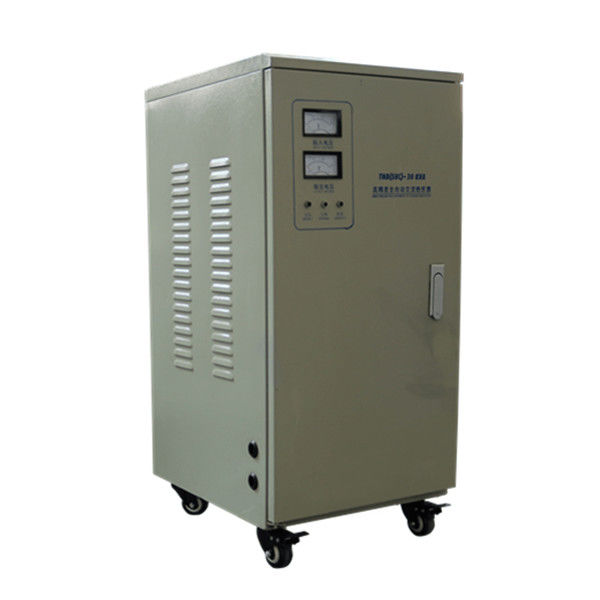

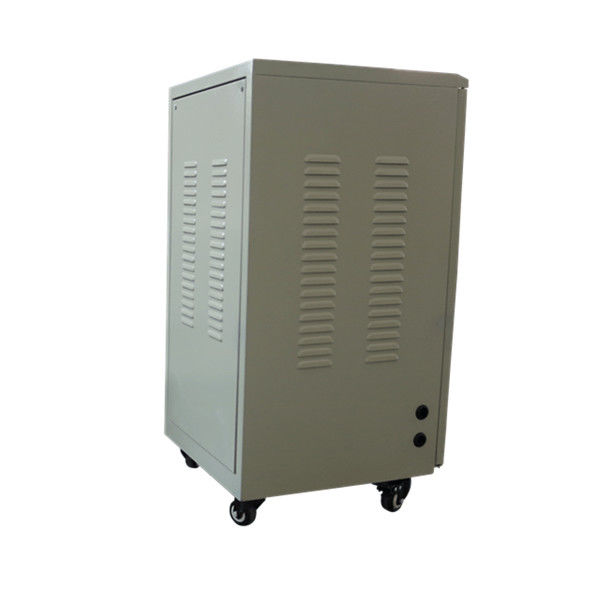

5. Product Details
