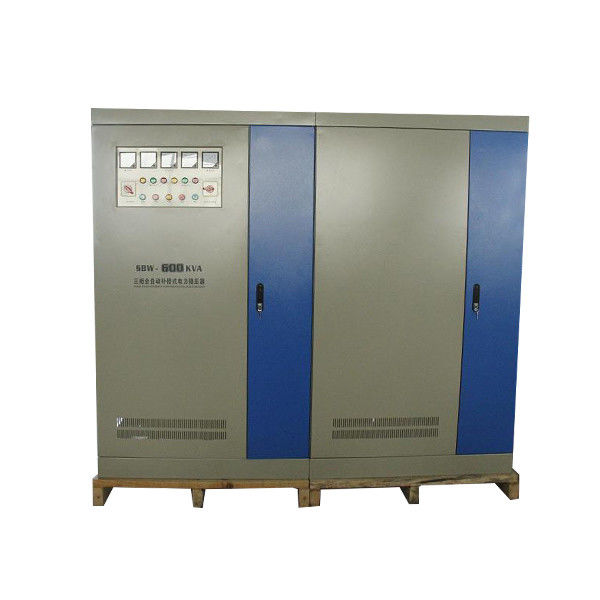

High Power Industrial Voltage Stabilizer 600KVA 380V Three Phase No Noise

1 pc
MOQ
Negotiation
Price
High Power Industrial Voltage Stabilizer 600KVA 380V Three Phase No Noise
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Industrial Voltage Stabilizer
Capacity: 600KVA
Phase: Three Phase
Output Voltage: 380V
Cabinet: Two
Regulation Way: Unified Regulation
Highlight:

electronic servo voltage stabilizer

,

industrial voltage regulator

Basic Infomation
Place of Origin: Shanghai, China
Brand Name: Ewen Power
Certification: CE, ISO:9001
Model Number: SBW-600KVA
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: According to Quantity
Payment Terms: T/T,
Supply Ability: 200 pcs per Month
Product Description

High Power Industrial Voltage Stabilizer 600KVA 380V Three Phase No Noise



1. Quick Details



The chart below shows the basic information of the product parameters.



Product name Three phase high power industrial voltage stabilizer Product type SBW-600KVA
Rated power 600KVA Phase Three phase
Input voltage range

380V/415V/440V

±20% or tailored

Rated output voltage 380/415/440V or customized
Working frequency 50HZ-60HZ Power factor

98%

Current type AC Insulation class F
Ambient temperature -10~45℃ Ambient altitude Less than 1000 meters
Relative humidity 20%~90% Ventilation condition Sound ventilation
Power loss

1% of the rated

power capacity

Electricity consumption Less than 1% of the rated power
Temperature rise Less than 80℃ Warranty One year



2. Introduction



This 600KVA three phase industrial voltage stabilizer is usually used in industrial areas. With a rated capacity of 600KVA, it could bear a large load of various electrical equipment. The input voltage is 380V±20%, or 415V/440V±20%. The output voltage is 380V/415V/440V or customized. The working frequency is 50Hz-60Hz.



It works as a voltage power supply when the input voltage fluctuates. It features in high power, strong load bearing capability, fast reaction rate, low risk of malfunction, high output precision, distortionless waveform, full protection functions, and etc.


3. Protections



There are several protection functions:



Over-voltage protection If the output voltage is too high, the voltage stabilizer would stop working.
Over-load protection The over-load protection function would work if the load is over the rated capacoty.
Under-voltage protection If the output voltage is too low, this 600KVA industrial voltage stabilizer would power off automatically.
Over-current protection The same as over-load protection function, the voltage stabilizer would power off automatically.
Time delay protection The output voltage would be delayed for several seconds before it is transmitted to the load equipment.




4. Product Recommended


Product Name Model

Input Voltage Range

Output Voltage

Rated

Current(A)

Three phase

voltage stabilizer

/regulator

TNS-9KVA

380V/415V

/440V±20%

or tailored

380V/415V

/440Vor tailored

13
TNS-15KVA 22
TNS-30KVA 45
TNS-45KVA 68
TNS-50KVA 75
TNS-60KVA 91
TNS-90KVA 136

Single phase

voltage stabilizer

/regulator

TND-10KVA

220V/110V

±20%or tailored

220V/110V or

customized

45
TND-15KVA 68
TND-20KVA 90
TND-30KVA 136
TND-40KVA 181
TND-50KVA 227

High power

voltage stabilizer

/regulator

(Single phase)

DBW-50KVA

220V/110V

±20%or tailored

220V/110V or

tailored

227
DBW-80KVA 363
DBW-100KVA 454
DBW-150KVA 681
DBW-180KVA 818
DBW-200KVA 909
DBW-300KVA 1363

High power

voltage stabilizer

/regulator

(Three Phase)

SBW-50KVA

380V/415V

/440V±20%

or tailored

380V/415V/440V

or tailored

75
SBW-80KVA 121
SBW-100KVA 151
SBW-120KVA 182
SBW-150KVA 227
SBW-200KVA 303
SBW-300KVA 455
SBW-400KVA 607
SBW-500KVA 759
SBW-600KVA 911
SBW-700KVA 1063
SBW-800KVA 1215
SBW-900KVA 1367
SBW-1000KVA 1519

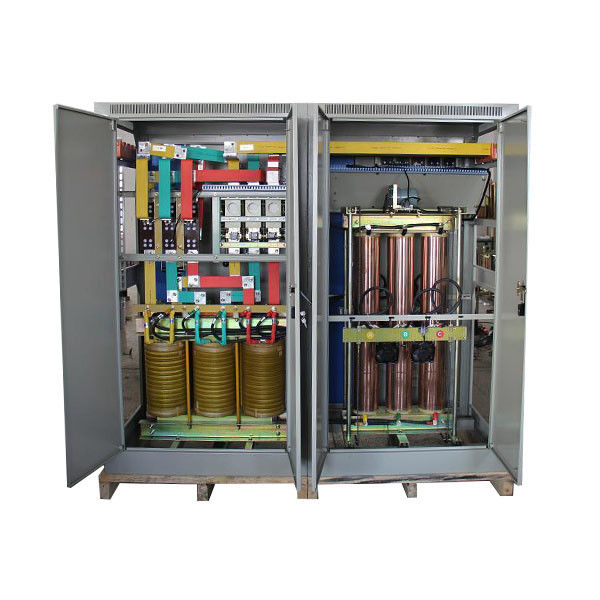

5. More Picture
High Power Industrial Voltage Stabilizer 600KVA 380V Three Phase No Noise 0
