| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power/OEM/ODM |
| Certification: | CE, ISO: 9001 |
| Model Number: | ZBW-70KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 150 pcs per Month |
| Capacity: | 70KVA | Item: | Three Phase Contactless Voltage Stabilizer |
|---|---|---|---|
| Feature: | No Noise | Type: | Dry Type |
| Insulation Class: | F | Cabinet Color: | RAL 9004 |
| Highlight: | three phase automatic voltage regulator,3 phase voltage stabilizer |
||
70KVA Three Phase Contactless Voltage Stabilizer with No Noise
1. Product Specifications
| Product name | Three phase contact-less voltage regulator |
| Product brand | Ewen Power/OEM/ODM |
| Product model | ZBW-70KVA |
| Rated capacity | 70KVA/70KW/70000VA |
| Phase | Three phase |
| Rated working frequency | 50Hz-60Hz |
| Rated input voltage | 380VAC±20% or customized |
| Rated output voltage | 380VAC±2% or customized |
| Rated input current | 106A |
| Rated output current | 106A |
| Insulation class | F |
| Di-electrical strength | 2000VAC/MIN |
| Protection class | IP21/23/44 |
| Cabinet type | Metallic type/stainless steel type |
| Cabinet color | RAL 7035/7032/9004 or customized |
| input terminals | Three phase four wires (ABC N) |
| Output terminals | Three phase five wires (ABC N PE) |
| Power factor | 80% or higher customized |
| Working efficiency | 80% or higher customized |
| Appropriate working temperature | -20~45℃ |
| Appropriate storage temperature | -20~60℃ |
| Ambient relative humidity | 20-90% |
| Ambient working altitude | Less than 2000 meters |
| Ambient working environment | Sound ventilation required |
| Output precision | ±1% |
| Size | 500*800*2000mm (customized size for this product) |
2. Product Features
High output precision: the output voltage precision is up to ±1% of the rated one. This precision is the highest among all types of voltage regulators.
Fast response rate: it reacts very quickly to voltage change, with response speed less than one second. The control circuit boards are very alert to voltage change and transmit the signals very swiftly.
Light weight: this voltage regulator is an electronic one, which is mainly composed of transformers and control circuit boards. This decides the weight is lighter than the products of same capacity.
Delicate design: the cabinet color is RAL 9004 and the size of the cabinet is customized according to customers’ demands.
No-noise design: different from traditional mechanical type of voltage regulators, this type of voltage regulator works with no noise, which meets some customers’ demands of no-noise performance.
3. Product Details Display
Get the detailed pictures of this voltage regulator through the following pictures:

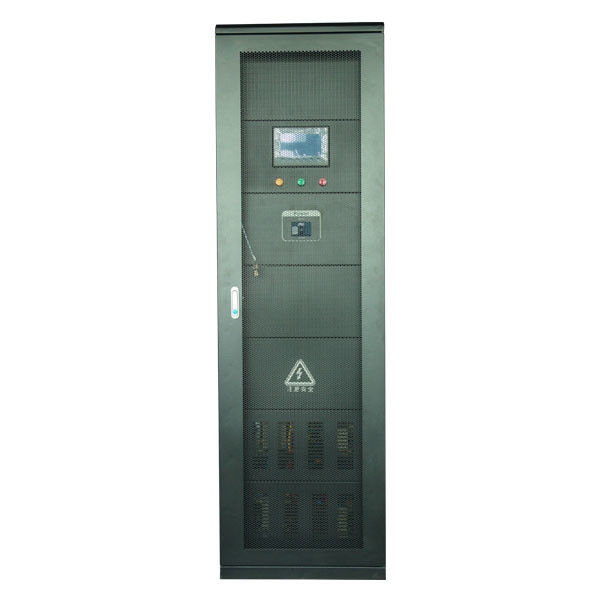

The power and the displaying LCD screen.

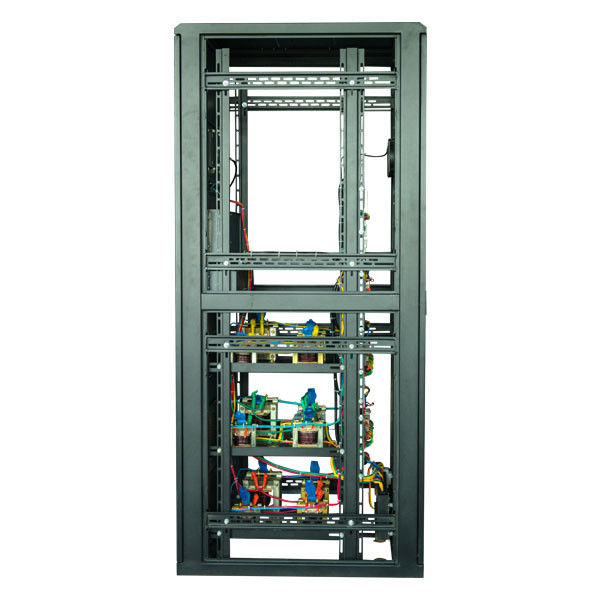

The circuit boards for controlling the signal transmission.
4. FAQs
Q: How long is the lead time for this product?
A: For one pc, it takes us 10 to 15 days. For more sets, it takes us more time to produce the product.
Q: What is the payment term?
A: We accept T/T, L/C or . 30% deposit paid when you place an order and 70% balance payment before shipment.
Q: How long is the warranty period?
A: We offer one-year warranty for our customers, during which we could supply spare parts for our customers for free.
