| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO:9001 |
| Model Number: | SBW-60KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 300 pcs per Month |
| Name: | Automatic Voltage Regulator | Model: | SBW-600KVA |
|---|---|---|---|
| Phase: | Three Phase | Power: | 600KVA |
| Warranty: | One Year | Insulation: | Class F |
| Highlight: | Class F Voltage Stabilizer,60KVA Industrial Voltage Stabilizer |
||
SBW-60KVA Industrial Servo Motor Type Voltage Stabilizer
1. Quick Details
| Product Name | Three Phase Servo Motor Type Voltage Regulator |
| Working Frequency | 50-60Hz |
| Efficiency | ≥85% |
| Protection Grade | IP 20 Or Customized |
| Cabinet Type | Metallic Type |
| Input Voltage | 380VAC±20% Or Customized |
| Output Voltage | 380VAC±2% Or Tailored |
| Output Precision | ±2% |
| Ambient Temperature | －15℃~＋50℃ |
| Warranty | 12 Months |
| Ambient Altitude | <2000 m |
2. Major Parts
| Major Components | Feature and Description |
| Regulating Column | Copper material, strong electricity conductiveness |
| Circuit Board | Advanced technology, quick response |
| Carbon Brush | Imported material |
| Servo Motor | Quick response |
| Chain Drive | Strong driving capability |
| AC Contactor | Fast reaction |
| Iron Enclosure | Painted silver-white color, protecting the whole parts of this product |
| Pointer Meters | Precise indication of current and voltage |
| Other Necessary Parts | All the parts are of high quality |
3. Product Features
| Large Capacity | 60KVA. |
| Pointer Display | The input and output voltage would be shown on the pointer meters, which is very convenient for you to read real-time data to monitor the working status of the voltage regulator. |
| User-friendly Omni-directional Wheels | This design makes it easier to move the voltage regulator in a more energy-saving way. |
| High Quality Carbon Brush | 1017 carbon brush is more durable, which prolongs its service time. |

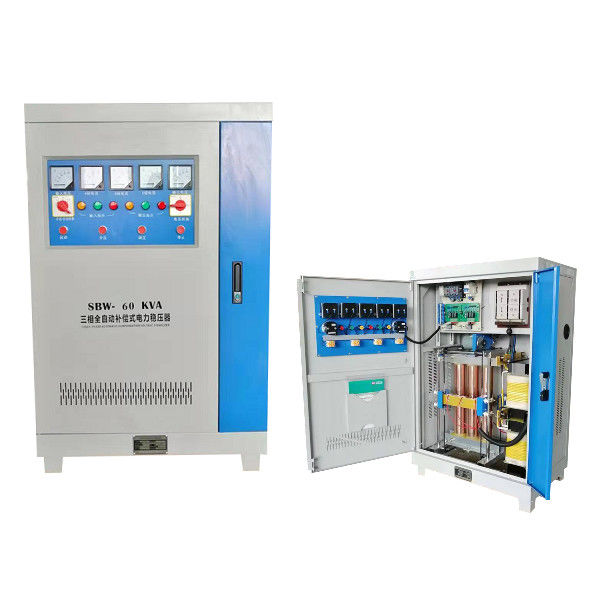

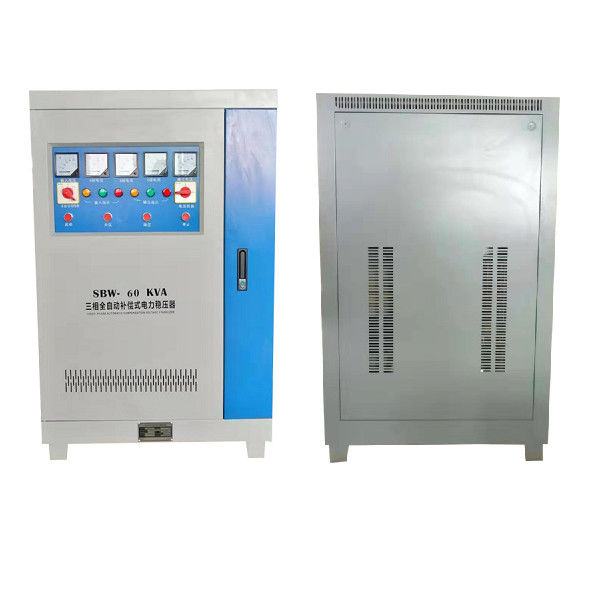

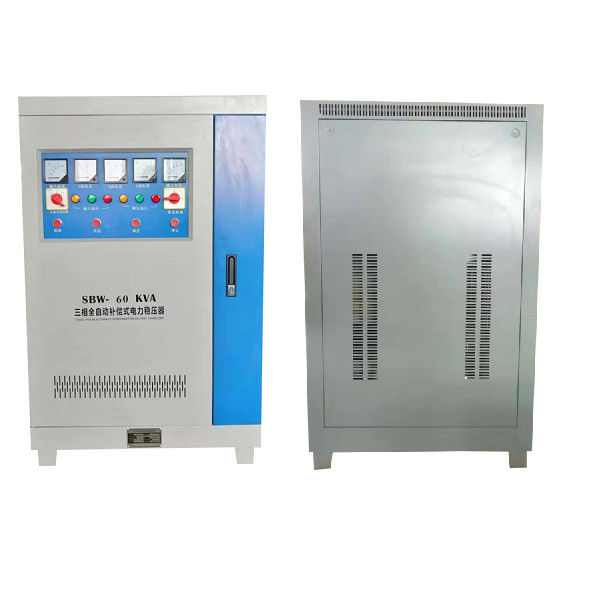

4. Product Display
5. Our Services
1.We could provide sampling service for our customers if it's needed.
2.Technical support could be offered to help you select the right product.
3.OEM/ODM services is available .Your logo could be put on the products.
4.Three years warranty is provided. We could provide you with spare parts for free if there are problems with them.
5.Installation and testing services could be provided if it's needed,with service fee paid by our customers due to the long distance.
6.FAQ
Q:How long is the lead time?
A:It's normally five to ten days. Certainly it depends on the quantity and product requirements. If the quantity is not that large, 10 days or so. If it's normal products, it takes us less than 10 days to produce it. For large quantity and customized products, it needs 20 to 30 days.
Q:How do you control product quality?
A:From material coming to product manufacturing, we have professional staff who are responsible for quality inspection. Only the product is up to standard, can we ship it to our customers.
Q:What is the payment terms?
A:FOB/CIF/CFR, normally with 30% deposit for normal products and at least 50% advance payment for tailored products and all balance paid before shipment.
Q:How long is the warranty?
A:We provide one year warranty for our customers. If there is any problem occurred to the product, we could supply the spare parts for you for free. During the warranty period, we would provide technical support with you in case there is any question.
Q:Could you please provide technical support in product installation?
A:Yes, certainly. We have a professional technical team which is responsible for product installation and application guidance for our customers.
Q:What certificates have you obtained?
A:We have obtained CE and ISO:9001 certificates so far. We are trying to get more certificates related our products.
Q:How about your packing?
A:For large products, we use strong wooden case protection. For small products, we use carton.
Q:Can you put our logo on your products?
A:Yes, we accept OEM and ODM. If the quantity is large, your logo could be put on our products.
Q:Where is your major market?
A:Our markets include central Asia, East Asia, South Asia, Africa, South America, and North America etc.
Q:What about your capacity?
A:It depends on the product. For instance, for small-power products, we could produce ten thousand pieces a month while 2000 pieces for large-power products.
Q:What is the material of your products?
A:The major material is copper and aluminum. It is decided upon your requirements and your budget.
