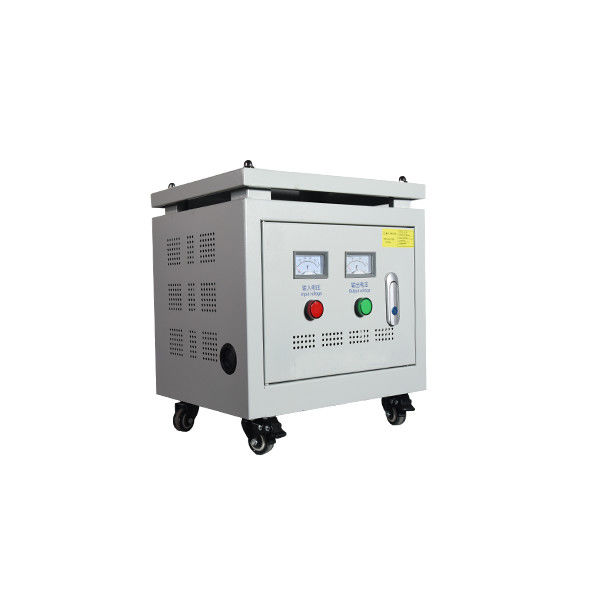

Dry Type Industrial Three Phase Transformer 480v To 208v 10KVA IP21 Enclosure

Dry Type Industrial Three Phase Transformer 480v To 208v 10KVA IP21 Enclosure

3 phase transformer

three phase power transformer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power


CE, ISO:9001

Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
Three Phase Transformer
Product Model:
Coil Structure:
Coil Number:
Dry Type
Input Voltage:
690/660/440/415/380/220V Etc
Output Voltage:
380/220/200V Etc
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Wooden Case
Delivery Time
Based on Your Quantity
Payment Terms
Supply Ability
300 pcs per Month
Product Description

Dry Type Industrial Three Phase Transformer 480v To 208v 10KVA IP21 Enclosure


1. Product Overview


This product is three phase transformer, which is be used to tranform the voltage according to your needs. The rated capacity of this one is 10KVA. However, it can be 500VA to 1000KVA based on the capacity of the electrical appliance. The primary voltage can be customized to your needs too. For example, it can be 380V, 220V, 415V, 440V, 660V, 690V 1140V etc. Also, the secondary voltage could be 220V, 380V, 200V, 208V, or any other voltage that you need.


It is widely used in industrial areas and for all kinds of industrial electrical equipment. For instance, CNC, production line, numerically-controlled machine tool, robots, imported equipment etc. It helps to solve the problems brought by different voltages. So it's now used more and more frequently in all those areas.


2.  Product Specifications


Product Name Three Phase Dry Type Transformer
Product Model SG-10KVA
Rated Capacity 10KVA
Rated Frequency 50Hz~60Hz
Input Voltage 1140V, 690V, 660V, 440V, 415V, 380V, 220V etc (which can be customized)
Output Voltage 380V, 220V, 208V, 200V etc (which can be customized)
Phase Three Phase
Wave Distortion Distortionless
Output Precision ±2%
Insulation Class Class F
Insulation Resistance ≥2
Material Copper Coil or Aluminum Coil (according to your needs)
Type Dry Type
Cooling Way Air Cooling
Function Voltage Tranformation
Working Efficiency >85%
Working Temperature -10℃~40℃
Working Humidity 90%
Noise 35db (within a certain distance)
Temperature RIse ≤60℃
Over-load Capacity Maintaining 10 minutes with 120% of the Rated Capacity
Dielectric Strength 3000VAC/1min
Lifetime 10-20 Years (under the condition of normal use and maintenance)
Size 450*400*450mm
Wire Connection Mode Y/Y, △/Y etc


3. Main Advantages


① Very low loss of capacity of the transformer, which could develop the whole loading potential.

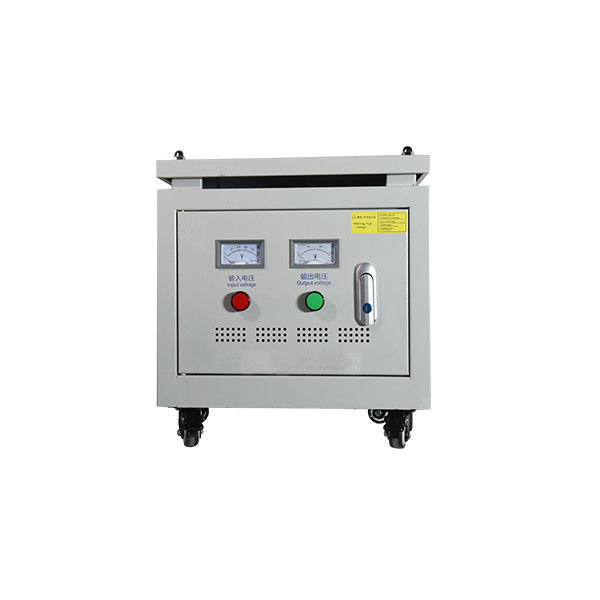

② Clear display of input and output voltage of the transformer, which facilitates the easier manipulation of the voltage change.


③ IP21 enclosure, protecting the core parts of the transformer and prolonging the lifetime of the transformer.


④ Inexpensive price with high quality.


⑤ Reasonable Design and tidy outlook of the transformer, facilitating the use of this product.


⑥ High-quality parts, helps to lengthen the lifetime of the transformer.


4. Usage and Maintenance


First, check the package intact or not when you receive the package after a long shipment.


Second, if it's perfect, then disassemble the package and get the transformer out.


Third, check if the transformer ok or not.


Fourth, open the enclosure of the transformer and cut off your power supply.


Fifth, Connect the wires correctly and then turn on the power.


Sixth, after you use it for a period of time, please clear it regularly to wipe off the dust to ensure the sound performance of the product.


5. Warranty and Aftersale Services


① The warranty period is one year since you buy the product.


② If there are tiny problem occuring to the transformer, we could provide support for you immediately. For example, if the problem is the malfunction of small parts, we would mail you some small parts promptly.


③ If there are emergencies that needing our help, we would respond within 48 hours through video calling.


④ If any problem happens after the warranty period, we would also like to help you.


6. More Pictures of the Product


Dry Type Industrial Three Phase Transformer 480v To 208v 10KVA IP21 Enclosure 0

You could see the inner structure of the transformer including the wiring board, coils, and other important parts.

Dry Type Industrial Three Phase Transformer 480v To 208v 10KVA IP21 Enclosure 1

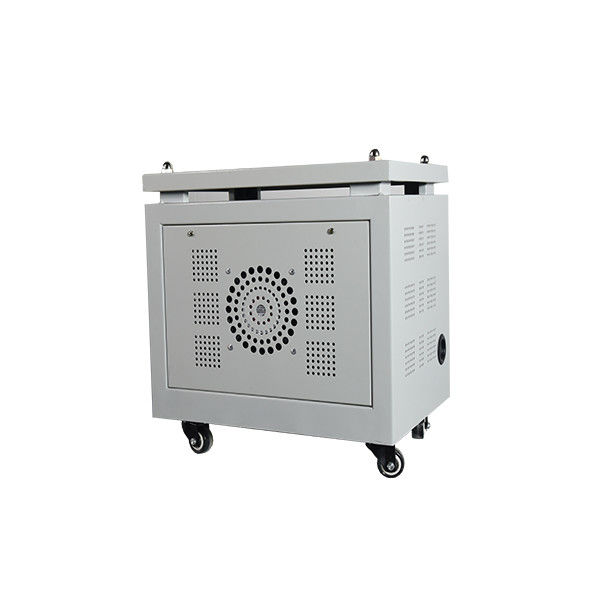

This is the back of the transformer. You could see the heat dissipation holes and the fan in the enclosure of the transformer.
