Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO:9001
Model Number:
TNS(SVC)-60KVA

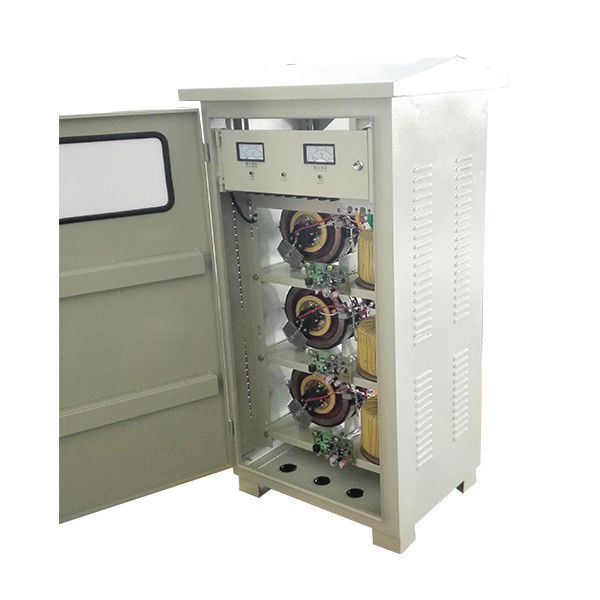

60KVA 3 Phase Servo Controlled Voltage Stabilizer 50Hz 380V 440V Rain Proof
1. Product Profile
The product introduced here is a three phase voltage stabilizer, which is widely used for industrial areas. The rated capacity of this voltage stabilizer is 60KVA, with input voltage 304-456V and output voltage 380V/400V/420V/440V. Its model is TNS(SVC)-60KVA. It's a ideal power supply for places needing stable three phase voltage supply.
The rated capacity of this product could range from 6KVA to 3000KVA, which is determined by the actual load it needs to bear. The input and output voltage all could be tailored to your demands. Also, it could be used in a frequency of 47 to 63Hz.

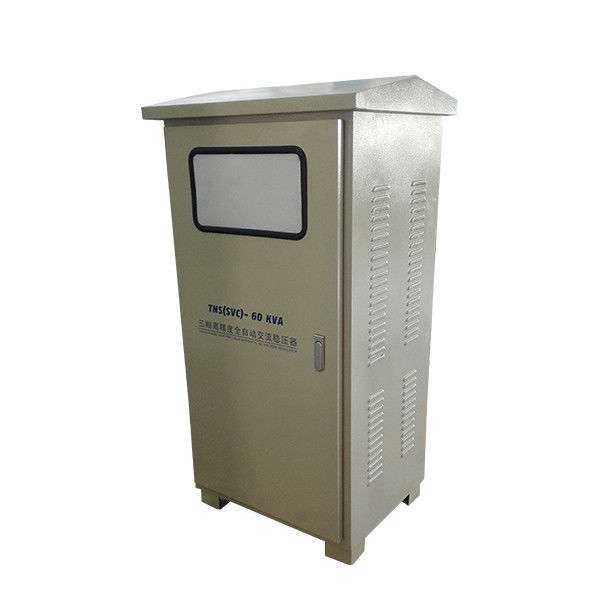

The main feature of this product is that it's waterproof and rain-proof. It could be used at outdoor environment. For instance, it could be used for marine electrical device. The specially-designed enclosure effectively protects the stabilizer from rain and water.
2. Basic Parameter
| Product Name |
Three Phase Voltage Stabilizer |
Product Type | TNS(SVC)-60KVA |
| Input V |
380V±20% or customized |
Output V | 380V or customized |
|
Voltage Stabilization Precision |
±2% | Rated Capacity |
60KVA |
| Response Time | Less than one second | Ambient Altitude | <1000m |
| Ambient Temperature | -10℃~40℃ | Working Efficiency | 98% |
| Input Current | 91A | Output Current | 91A |
| Insulation Class | F | Insulation Resistance | ≥2 MΩ |
| Protection Class | IP44 | Waveform Distortion | Less than 5% |
| Function | Voltage Stabilization | Overload Capacity |
10s with 150% of rated capacity |
3. Other Products of TNS(SVC) Series
Please have a look at the chart below to get more information of the products of this series.
| Model | Rated Capacity | Input Voltage | Output Voltage | Output Current |
| TNS(SVC)-6KVA | 6000VA |
380V±20% or customized |
380V±2% or 400V, 420V, 440V, 460V, or tailored |
9A |
| TNS(SVC)-9KVA | 9000VA | 13A | ||
| TNS(SVC)-15KVA | 15000VA | 22A | ||
| TNS(SVC)-20KVA | 20000VA | 30A | ||
| TNS(SVC)-30KVA | 30000VA | 45A | ||
| TNS(SVC)-40KVA | 40000VA | 60A | ||
| TNS(SVC)-50KVA | 50000VA | 75A | ||
| TNS(SVC)-60KVA | 60000VA | 91A | ||
| TNS(SVC)-90KVA | 90000VA | 136A | ||
| TNS(SVC)-100KVA | 100000VA | 151A |
4. Use Instruction
① Checking the package first when you receive the product.
② Unpacking the wooden case, check if the product is undamaged after a long-time shipment.
③ To read the users' manual for instruction before you use the stabilizer.
④ Please power off before you connect wires to ensure your safety.
⑤ To connect wires according to the text indications on the wiring board.
⑥ After you connect all the wires, check again if the wires are correctly connected to the right position.
⑦ Power on after finishing all the procedures above mentioned.
⑧ If there is any unexpected situation, please power off immediately.
