Small Size Three Phase Voltage Stabilizer 6KVA 380V 220V 6000VA Regulator

  • Small Size Three Phase Voltage Stabilizer 6KVA 380V 220V 6000VA Regulator
  • Small Size Three Phase Voltage Stabilizer 6KVA 380V 220V 6000VA Regulator
Place of Origin Shanghai, China
Brand Name Ewen Power
Certification CE, ISO: 9001
Model Number TNS(SVC)-6KVA
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Wooden Case
Delivery Time According to Quantity
Payment Terms T/T,
Supply Ability 400 pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase Three Phase Frequency 47Hz-63Hz Available
Power Factor 98% Waveform Distortion ＜0.1%
Rated Capacity 6000VA Product Weight 35kg For Reference
Highlight

3 phase voltage regulator

,

3 phase voltage stabilizer
Leave a Message
Product Description

Small Size Three Phase Voltage Stabilizer 6KVA 380V 220V 6000VA Regulator



1. Product Profile



6KVA three phase high precision full automatic AC voltage stabilizer is introduced here. As shown in the product title, the rated capacity of it is 6KVA, or written as 6000VA. The output voltage could be 380V3P, 220V3P, or any other three phase voltage could be customized. Accordingly, the input voltage range can be tailored based on the value of output voltage or actual voltage fluctuation range.



It could be used in the working circumstances of 47Hz to 63Hz. So, you don't need to worry about the frequency as long as it is in this range. This three phase voltage stabilizer could be used in many places and areas. Also, it is available for various electrical equipment. It's an ideal choice for places and appliance with unstable power supply.



The product pictures shown here is a standard one made by our company. If you have any requirements about the outlook and the interior design of this product, we could customize the product according to your needs. In other words, OEM and ODM are acceptable.



2. Product Parameters



Input Voltage 380V±20%
220V±20%
400V±20%
Or customzied voltage
Output Voltage 380V, 220V, 400V, 440V, 460V or tailored according to your needs
Rated Capacity 6KVA, 6000VA or customized according to your load capacity
Working Frequency 47-63Hz
Ambient Environment Temperature: -10~45℃
Humidity: less than 90%
Altitude: less than 2000m
Ventilation: good
Insulation Class: F
Resistance: ≥2MΩ
Performance Fast response
Good electricity inductiveness
Low maintenence rate
Long lifetime
Strong load bearing capability
Various protection functions: under-v, over-v, short circuit, over-current etc.
Indications

Voltage meter, current meter, indication lights
Size 290mm*330mm*690mm for reference
Weight 35kg for reference



3. Major Features



① Fast response time One-second response time
② High voltage stabilization accuracy ±2% of output voltage
③ Sound heat dissipation function Ventilation holes are widely spread on the enclosure to ensure the heat dissipation
④ Clear data display Analog meter display helps customers to get clear data
⑤ Long lifetime 10-year lifetime with appropriate maintenence
⑥ Suitablity for different loads Available for inductive or capacitive or resistant loads



4. Three Phase Voltage Stabilizer Models



Model Size(cm) Weight(kg)
TNS-3KVA 51*34*18 28
TNS-6KVA 29*33*69 35
TNS-9KVA 33*34*77 60
TNS-15KVA 36*44*77 70
TNS-20KVA 43*39*86 80
TNS-30KVA 46*42*88 105
TNS-45KVA 55*46*120 160
TNS-50KVA 55*46*120 170
TNS-60KVA 55*46*120 180
TNS-75KVA 62*41*134 210
TNS-90KVA 62*51*134 230
TNS-100KVA 62*51*134 257



5. Product Pictures

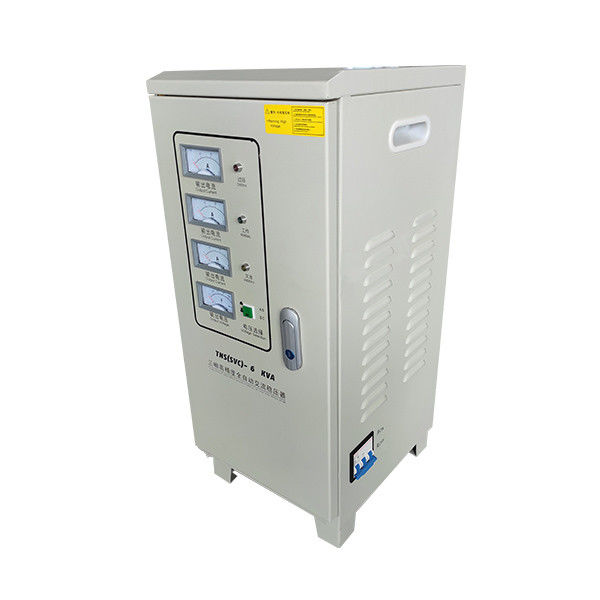

Small Size Three Phase Voltage Stabilizer 6KVA 380V 220V 6000VA Regulator 0

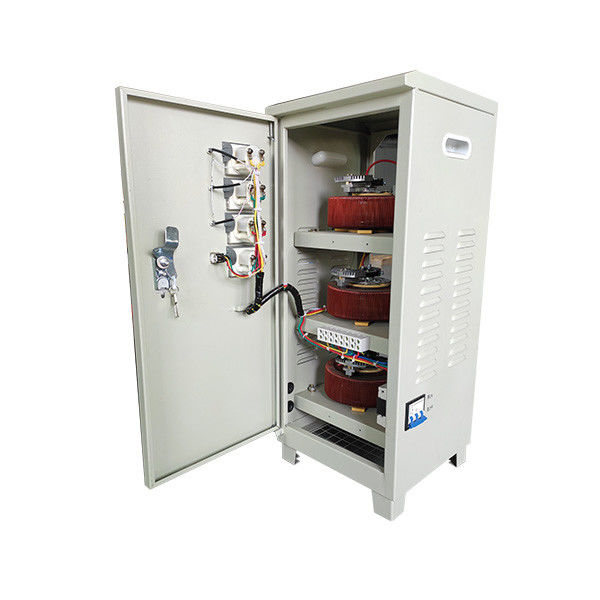

Small Size Three Phase Voltage Stabilizer 6KVA 380V 220V 6000VA Regulator 1
