Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO: 9001
Model Number:
TNS(SVC)-15KVA
Printer Three Phase Voltage Stabilizer 15KVA 380V , 3 Phase Voltage Regulator
1. Quick Details
Product name: three phase voltage stabilizer (AC voltage stabilizer, high precision voltage stabilizer etc.)
Product model: TNS(SVC)-15KVA
Product brand: Ewen Power
Place of origin: Jiading District, Shanghai, China
Rated power: 15KVA/15000VA
Rated frequency: 50Hz/60Hz
Rated input voltage: 380V±20% or customized
Rated output voltage: 380V±2% or tailored
Rated current: 22.79A (when the output voltage is 380V)
Display: LCD display
Insulation class: Class F
Insulation resistance: ≥2MΩ
Dielectric strength: 2000V/1min
Temperature Rise: ＜80℃
Ambient temperature: -15~45℃
Appropriate humidity: ＜90%
Working altitude: ＜2000m
Ventilation conditions: well-ventilated place
For further information, please contact us without any hesitation.
2. Protection Functions
| Protections | How to function |
| Short Circuit | When there is a short circuit, the stabilizer would cut off the power automatically to protect the whole circuit. |
| Over-voltage | When the input or output voltage is higher than the set value, the product would stop working automatically to protect both the stabilzer and the electrical equipment. |
| Under-voltage | This protection function is the same as the over-voltage. When the voltage is too low, the stabilizer would power off automatically. |
| Over-current | When the working current is over the rated one, the voltage stabilizer would respond and cut off the power to protect the product from malfunction. |
| Over-load | The same as the protection function of over-current. If there is an over-current situation, over-load situation would happen accordingly. |
3. Major Competitveness
① Beautiful exterior design.
② User-friendly interior design.
③ Fast response rate.
④ Very high voltage stabilization precision.
⑤ Various protection functions.
⑥ High-quality elements and long lifetime.
⑦ Clear display of different data on LCD meters.
4. Three Phase Voltage Stabilizer Models
| Product Model | Size W*D*H (mm) | Weight (kg) |
| TNS(SVC)-3KVA | 510*340*180 | 28 |
| TNS(SVC)-6KVA | 290*330*690 | 35 |
| TNS(SVC)-9KVA | 330*340*770 | 60 |
| TNS(SVC)-15KVA | 360*440*770 | 70 |
| TNS(SVC)-20KVA | 430*390*860 | 80 |
| TNS(SVC)-30KVA | 460*420*880 | 105 |
| TNS(SVC)-45KVA | 550*460*1200 | 160 |
| TNS(SVC)-50KVA | 550*460*1200 | 170 |
| TNS(SVC)-60KVA | 550*460*1200 | 180 |
| TNS(SVC)-75KVA | 620*410*1340 | 210 |
| TNS(SVC)-90KVA | 620*510*1340 | 230 |
| TNS(SVC)-100KVA | 620*510*1340 | 257 |

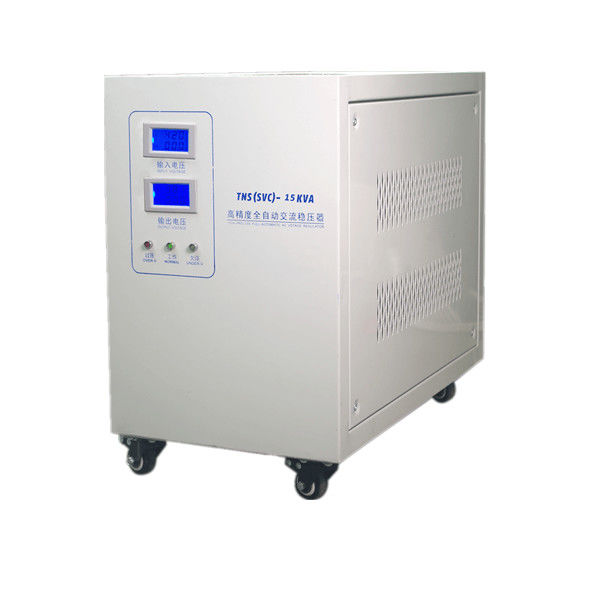

5. Product Picture
From this picture, you could see the input voltage is 415V while the output could be stabilized at 380V. The data is shown clearly on the LCD meters, from which you could get a direct data of the working status of the stabilizer.
