High Precision Three Phase Voltage Stabilizer 40KVA Copper Coil Material

High Precision Three Phase Voltage Stabilizer 40KVA Copper Coil Material

3 phase voltage regulator

3 phase voltage stabilizer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power


CE, ISO: 9001

Model Number:


Contact Us
Request A Quote
Product Details
Rated Capacity:
Voltage Phase:
Three Phase
Product Usage:
Voltage Stabilization
Working Efficiency:
Coil Material:
Enclosure Color:
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Wooden Case
Delivery Time
According to Quantity
Payment Terms
Supply Ability
400 pcs per Month
Product Description

High Precision Three Phase Voltage Stabilizer 40KVA Copper Coil Material


1. Quick Details


Item name Three Phase High Precision Voltage Stabilzier
Item Type TNS(SVC)-40KVA
Current Type AC
Voltage Phase 3 Phase
Working Frequency 50Hz/60Hz
Input Voltage 304-456V or customized range
Output Voltage

380V or customized

Working Temperature -10℃~45℃
Working Altitude Less than 2000M
Working Humidity Less than 90%
Power Factor 98%
Working Efficiency 98%
Insulation Class Class F
Insulation Resistance ≥2MΩ
Protections Over-load, over-current, over-voltage, under-voltage, phase failure, time delay, short circuit, etc.


2. Protection Functions of the Voltage Stabilizer


Protections How to work
Short circuit protection When there is a short circuit, the stabilizer would power off automatically in case there happens more severe situations.
Over-voltage protection When the input or output voltage is higher than the set value, the product would cut off the power to protect both the stabilzer and the electrical equipment from being damaged.
Under-voltage protection The same as the over-voltage protection function, if the voltage is too low, the stabilizer would stop working automatically.
Over-current protection If the current is over the rated one, the voltage stabilizer would cut off the power to protect the product from malfunction.
Over-load protection If there is an over-current situation, over-load situation would happen accordingly. Then the voltage stabilizer would stop working if it is over-loaded.
Time delay There is a five-second time delay. The voltage is stabilized before it outputs to electrical equipment.
Phase failure protection This protection fucntion could be added if it is needed.


3. Main Features


① Beautiful exterior design: the exterior design of this stabilizer is pleasing, with silver enclosure and numerous ventilation holes on the enclosure.

② User-friendly interior design: the coils are placed in order and the wiring board is very clear shown to customers.

③ Fast response: the response time is only one second when the voltage fluctuates less than 10% of the rated one.

④ Very high voltage stabilization precision: the accuracy is ±2%, which could effectively protect the electrical appliance.

⑤ Various protection functions: as mentioned in part two, there are many protection functions of the stabilizer.

⑥ High-quality elements and long lifetime: the components of this product is of high quality so that the lifetime of it could be up to 10 years in a condition of normal use and maintenence.

⑦ Clear display of different data on analog meters: this gives you a direct data, base on which you could judge whether it's working normally or not.


4. Relevant Products Recommended


① Single Phase High Precision Voltage Stabilizer.

② High Power Voltage Stabilizer

③ Contactless Voltage Stabilizer (Brushless Voltage Stabilizer)

④ Three Phase Transformer

⑤ Single Phase Transformer

⑥ Servo Transformer

⑦ Dry Type Reactor


5. Product Pictures

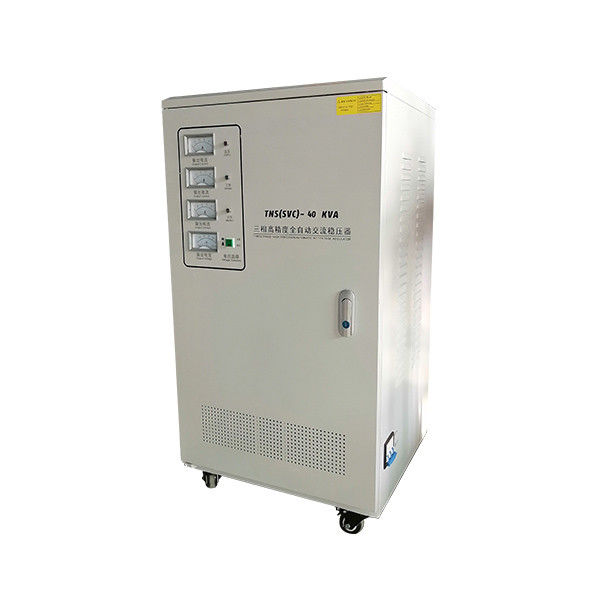

High Precision Three Phase Voltage Stabilizer 40KVA Copper Coil Material 0

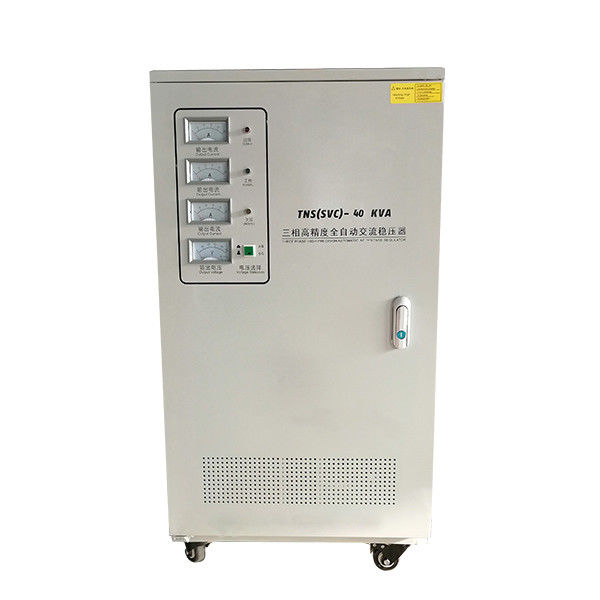

High Precision Three Phase Voltage Stabilizer 40KVA Copper Coil Material 1
