Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO: 9001
Model Number:
TNS(SVC)-90KVA

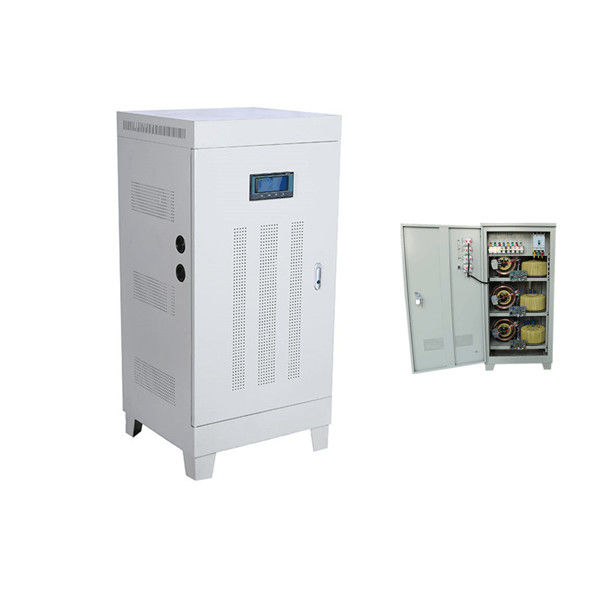

Vertical 90KVA Three Phase Voltage Stabilizer 50Hz Avr Auto Voltage Regulator
1. Product Parameters
| Product name | Three Phase Voltage Stabilizer |
| Product Model | TNS(SVC)-90KVA |
| Input Voltage | 304-456V |
| Output Voltage | 380V |
| Technology | Servo motor control system+Micro computer programmed control |
| Input voltage | Three phase AC 380V±20% |
| Output voltage | Three phase 380V±2% |
| Phase | Three-phase |
| Frequency | 50Hz-60Hz |
| Regulation time | ＜1 second (against 10% input voltage deviation) |
| Over-voltage protection | ＞456V |
| Protection lack voltage | ＜304V |
| Delay time | Five second |
| Temperature protection | 110℃ |
| Ambient temperature | -10~45℃ |
| Relative humidity | ＜90% |
| Wave form distortion | No additional waveform distortion |
| Working Efficiency | ＞98% |
| Dielectric strength | 2000V/min |
| Insulation resistance | ≥5MΩ |
| Altitude | ＜1000m |
| Temperature rise | ＜80℃ |
2. Product Features
① Wide input voltage range: three phase 304VAC to 456VAC or customized according to your needs.
② High technology: micro computer programmed control
③ High accuracy of output voltage: 380V±2%
④ Quality ensurance: the spare parts of this product are of high quality.
⑤ Various protection fucntions: over-voltage, under-voltage, over-load, over-current, short circuit, phase failure, and time delay etc.
⑥ Pleasing outlook and reasonable interior design: user-freindly design makes it convenient for customers to use it.
⑦ High efficiency: it's up to 98%.
3. Product Recommended
| Product Name | Product Model |
| Three Phase Full Automatic Voltage Stabilizer | TNS(SVC)-6KVA |
| TNS(SVC)-9KVA | |
| TNS(SVC)-15KVA | |
| TNS(SVC)-20KVA | |
| TNS(SVC)-30KVA | |
| TNS(SVC)-45KVA | |
|
TNS(SVC)-50KVA |
|
| TNS(SVC)-60KVA | |
| TNS(SVC)-75KVA | |
| Single Phase High Precision Voltage Stabilizer | TND(SVC)-10KVA |
| TND(SVC)-15KVA | |
| TND(SVC)-20KVA | |
| TND(SVC)-30KVA | |
| TND(SVC)-40KVA | |
| TND(SVC)-50KVA | |
| Three Phase High Power Voltage Stabilizer | SBW-80KVA |
| SBW-100KVA | |
| SBW-120KVA | |
| SBW-150KVA | |
| SBW-200KVA | |
| SBW-300KVA | |
| SBW-400KVA | |
| SBW-500KVA | |
| SBW-800KVA | |
| SBW-1000KVA | |
| Three Phase Contactless Voltage Stabilizer | ZPW-10KVA |
| ZPW-20KVA | |
| ZPW-30KVA | |
| ZPW-40KVA | |
| ZPW-50KVA | |
| ZPW-60KVA | |
| ZPW-80KVA | |
| ZPW-100KVA |
If you are interested in any of these product models, please feel free to let us know. We would send you product parameters and quotation as soon as possible.
4. FAQ
Q1: What is the MOQ ?
A1: 1 pc.
Q2: Is OEM/ODM acceptable?
A2: Yes, absolutely acceptable. The stabilizer could be customized according to your needs. Our company has technical team to help you with the design of the product.
Q3: Can we put our own Logo on the voltage stabilizer?
A3: Yes, you could show your own terms of payment?
A4: T/T, L/C, etc.
Q5: How long is the delivery time ?
A5: It depends on your order quantity and it normally takes 5 days for small quantity and less than 20 days for large quantity.
Q6: How long is the lifetime of the product?
A6: It's normally more than 10 years.
Q7: How long is the service life ?
If you have any other question, please feel free to contact us.
5. Component Show

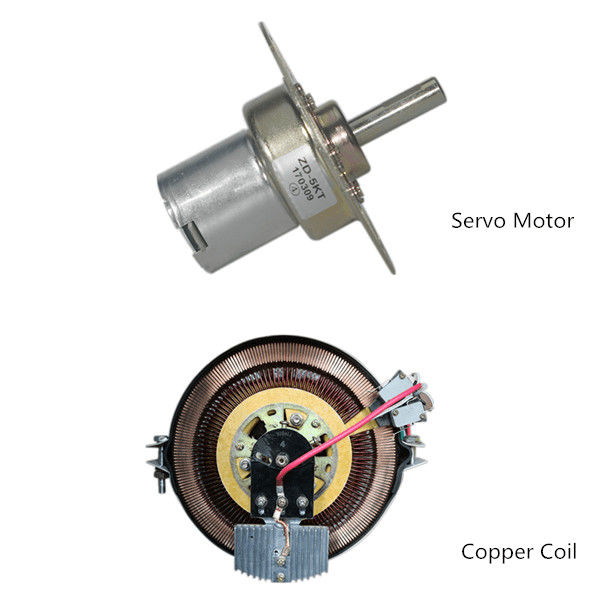

Please see the picture of servo motor and copper coil. If you want to know more about the spare parts, contact us without any hesitation please.
