Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO:9001
Model Number:
TNS(SVC)-60KVA
Video

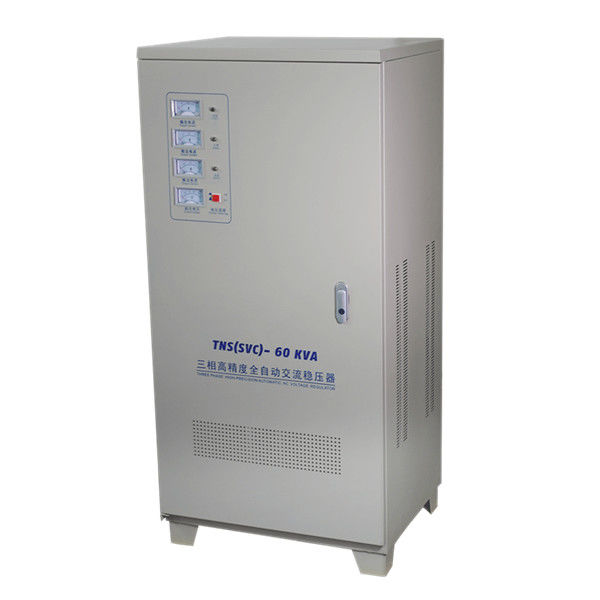

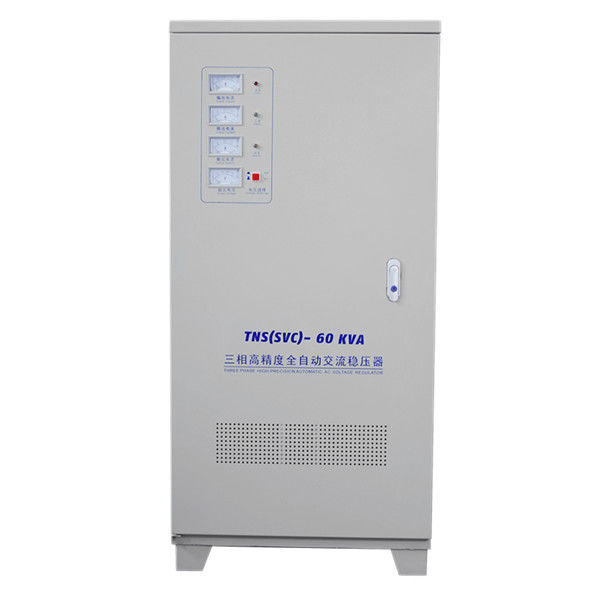

60KVA AC Power Stabilizer 50Hz Three Phase 380V 400V 440V For Industrial Use
1. Product Profile
This product is a three phase AC power stabilizer/regulator, with a rated capacity of 60KVA. Its input voltage and output voltage can be customized according to your technical requirements. Normal input and output voltage is 380V±20% and 380V±2% repectively. The working frequency is 50HZ-60HZ.
This product is widely used as a power supply for industrial uses. It could be an ideal power supply for industries like air compressor, generator, laser-cutting machines etc. When there is unstable three phase voltage supply, this 60KVA three phase AC power stabilizer is a good option.
2. Product Parameters
Name: three phase AC power stabilizer
Type: servo motor
Model: TNS-60KVA
Frequency: 50HZ-60HZ
Capacity: 60KVA
Efficiency: 98%
Input voltage: 380V±20% or customized
Output voltage: 380V/400V/440V or customized
Output precision: ±2%
Rated current: 91A
Insulation class: F
Protection class: IP23
Enclosure: Yes
Dimension: 55*46*120cm
Weight: 175kg for reference
3. Parameters of Three Phase AC Power Stabilizer
| Type | Capacity | Input Voltage Range | Output Voltage | Output Current |
| TNS-6KVA | 6000VA | 380V±20% or customized | 380V±2% or customized | 9A |
| TNS-9KVA | 9000VA | 380V±20% or customized | 380V±2% or customized | 13A |
| TNS-15KVA | 15,000VA | 380V±20% or customized | 380V±2% or customized | 22A |
| TNS-20KVA | 20,000VA | 380V±20% or customized | 380V±2% or customized | 30A |
| TNS-30KVA | 30KVA | 380V±20% or customized | 380V±2% or customized | 45A |
| TNS-40KVA | 40KVA | 380V±20% or customized | 380V±2% or customized | 60A |
| TNS-50KVA | 50KVA | 380V±20% or customized | 380V±2% or customized | 75A |
| TNS-60KVA | 60KVA | 380V±20% or customized | 380V±2% or customized | 91A |
| TNS-90KVA | 90KVA | 380V±20% or customized | 380V±2% or customized | 136A |
| TNS-100KVA | 100KVA | 380V±20% or customized | 380V±2% or customized | 151A |
4. Parameters of Single Phase AC Power Stabilizer
| Type | Power | Input Voltage Range | Output Voltage | Output Current |
| TND-5KVA | 5000VA | 220V±20% or customized | 220V±2% or customized | 22A |
| TND-10KVA | 10KVA | 220V±20% or customized | 220V±2% or customized | 45A |
| TND-15KVA | 15KVA | 220V±20% or customized | 220V±2% or customized | 68A |
| TND-20KVA | 20KVA | 220V±20% or customized | 220V±2% or customized | 90A |
| TND-30KVA | 30KVA | 220V±20% or customized | 220V±2% or customized | 136A |
| TND-40KVA | 40KVA | 220V±20% or customized | 220V±2% or customized | 180A |
| TND-50KVA | 50KVA | 220V±20% or customized | 220V±2% or customized | 227 |
5. More Pictures
