5000VA AC Power Stabilizer 5KVA 220V Single Phase 50Hz With Dual Output

5000VA AC Power Stabilizer 5KVA 220V Single Phase 50Hz With Dual Output

ac automatic voltage regulator

adjustable ac voltage regulator

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power

Certification:

CE, ISO: 9001

Model Number:

TND(SVC)-5KVA

Contact Us
Request A Quote
Product Details
Item:
AV Power Stabilizer
Rated Power:
5KVA/5000VA
Phase:
Single Phase
Output Voltage:
Dual Output Of 220V/110V
Working Frequency:
50Hz-60Hz
Weight:
13kg For Reference
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiation
Packaging Details
Carton for Each Voltage Stabilizer
Delivery Time
According to Quantity
Payment Terms
T/T,
Supply Ability
1000 Units per Month
Product Description

5000VA AC Power Stabilizer 5KVA 220V Single Phase 50Hz With Dual Output



1. Product Specification



Product name: AC Power stabilizer

Item type: TND-5KVA/5000VA

Brand: Ewen Power or OEM/ODM

Place of origin: Shanghai, China



Phase: single phase

Rated capacity: 5KVA/5000VA

Working frequency: 50Hz-60Hz

Input voltage range: 150-260VAC/80-130VAC or customized range

Output voltage: 220V/110V or tailored

Rated current: 22.7A for 220V output voltage; 45.5A for 110V output voltage



Power factor: 98%

Coil: copper coil

Protection class: IP23

Output accuracy: ±2%

Working efficiency: 98%

Insulation class: F

Temperature rise: <85℃

Working temperature: -10~45℃



Protection functions: under-voltage, over-voltage, over-current, over-load, time delay ect.

Enclosure: silver-grey color

Output voltage display: pointer meters

Dual output: 220V/110V

Portable handle: two handles at both sides of the stabilizer


2. Major Selling Points



① Low power loss

② Portability

③ Multiple protections

④ Strong electricity inductiveness

⑤ Low risk of malfunction

⑥ Long service time of the product

⑦ Pretty exterior and interior design

⑧ Sound voltage stabilization performance

⑨ Sound ventilation

⑩ High quality parts and components


3. Major Components and Its Features



Copper coil for voltage regulation This is a key part of the 5KVA AC power voltage stabilizer. The copper coil is of goof electricity inductivenss, which strengthens the voltage stabilization function of this product.
Circuit board As it's micro-computer programmed, it is of high precision and fast reaction speed.
Carbon brush 1017 carbon brush is used for this AC power voltage stabilizer, which is very durable.
Copper wire The copper wires connects the whole electrical circuit.
Enclosure The enclosure protects all the parts of the single phase voltage stabilizer, which effectively reduces the risk of damage.
Pointer meters Input and output voltmeters are designed with this product, which facilitates easier reading of the voltage data.


4. Trade Terms



MOQ: One unit is the MOQ for you to buy the product.



Lead time: five to twenty days normally. It depends on the quantity and the requirements of the products. If it is customized, we need more time to produce the product.



Port: Shanghai is the top priority. Besides, other ports near Shanghai or specified port you designate are also acceptable.



Packing: carton for each 5KVA single phase voltage stabilizer, tray for large-quantity products.



Payment terms: T/T, with 30% advance payment and 70% balance for normal goods, while at least 40% advance payment and 60% balance for customized goods.

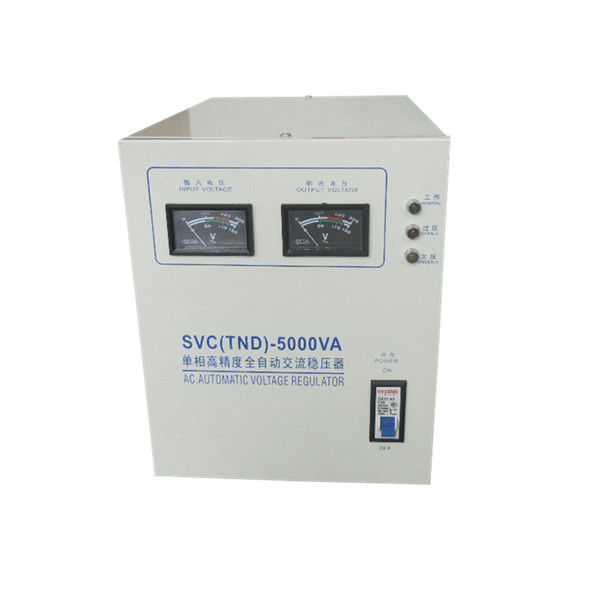

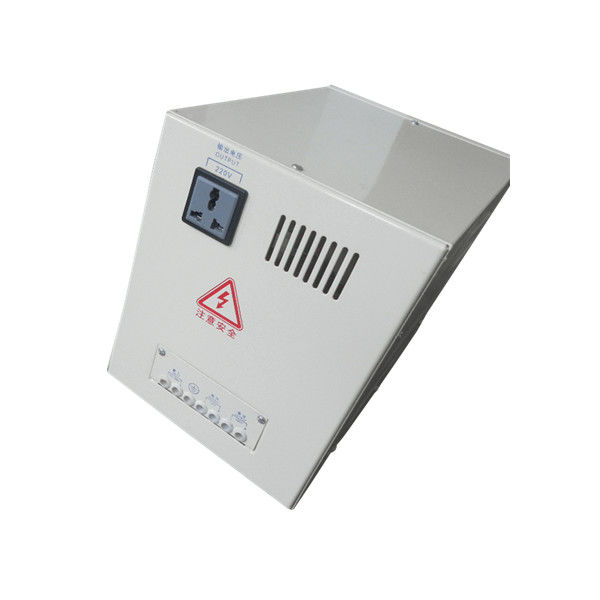

5. Product Pictures
5000VA AC Power Stabilizer 5KVA 220V Single Phase 50Hz With Dual Output 0

Please have a look at the product pictures. If you are interested in our product, please send us messages without any hesitation. We would respond within 24 hours.
