Electric Single Phase Auto Transformer 20KVA 50Hz 60Hz With Double Windings

Electric Single Phase Auto Transformer 20KVA 50Hz 60Hz With Double Windings

1 phase transformer

single phase isolation transformer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power


CE, ISO:9001

Model Number:


Contact Us
Request A Quote
Product Details
Single Phase Transformer
Waveform Distortion:
No Additional Waveform Distortion
Cooling Way:
Air Cooling
Double Windings
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Wooden Case
Delivery Time
Based on Quantity
Payment Terms
Supply Ability
1000 pcs per Month
Product Description

Electric Single Phase Auto Transformer 20KVA 50Hz 60Hz With Double Windings


1. Product Specifications


Product Name Single Phase Transformer
Product Model BK-20KVA
Product Brand Ewen/OEM/ODM
Origin Place Shanghai, China
Rated Input Voltage 380VAC/220VAC etc
Rated Output Voltage 220VAC/200VAC/110VAC etc
Working Frequency 50~60Hz
Working Temperature -10℃~45℃
Working Altitude Less than 3000m
Relative Humidity 20%-90%
Temperature Rise <80℃
Coil Structure EI
Insulation Class Class F
Wire Copper or Aluminum
Core Silicon Steel Sheet
Cooling Method Air Cooling
Wiring Mode V/V
Noise <35db
Dielectrical Strength 3000VAC/min
Over-load Capability 10 Minutes with 1.2 times of rated capacity
Lifetime Ten to twenty years normally


2. Product Introduction


The rated capacity of this single phase transformer is 20KVA. The input voltage and output voltage could be customized according to your request.


Normally, the rated capacity of single phase transformer ranges from 50VA to 500KVA. The normal input voltage includes 380V, 220V, 200V, 110V, 100V while the normal output voltage includes 220V, 200V, 110V, 100V, 48V, 36V, 24V, 12V etc. The working frequency is 50Hz-60Hz. Normally, a little bit deviation is available for the product to work.


3. Product Features


Delicate design Double windings design makes the transformer more delicate.
Strong load bearing capability The maximum working efficiency of this transformer is up to 98%.
Low no-load loss The no-load loss of this 20KVA single phase transformer is nearly zero. It's very energy-saving.
High insulation class The normal insulation class is F. It could be customized as H or even higher class.
Sound heat dissipation Due to high quality silicon steel sheet and double windings design, the heat dissipation performance is very sound.


4. Product Show

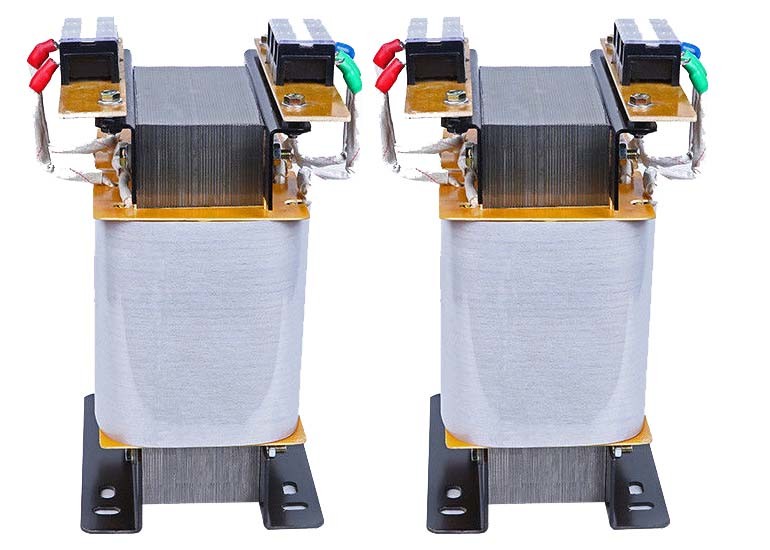

 Electric Single Phase Auto Transformer 20KVA 50Hz 60Hz With Double Windings 0


5. Product Advantages

① Small size due to the high quality of materials

② Sound performance due to the heat dissipation achieved through special air vents

③ Safe and simple cable connection achieved through the use of special terminals

④ Easy installation

⑤ Reliability achieved through high standards of quality control carried out by state-of-art, calibrated instruments at all stages of production, from receipt of raw materials to inspection of final products.


6. Aftersale Services


We provide 12 months' warranty for our customers. Since you receive the product, as long as there is any problem, we would help you with it. We have a professional technical team and aftersale service team to tackle with any aftersale problem.


Please feel free to contact us if you have any question. Your inquiry would be on our top priority.
