60Hz 60kva 3 Phase Transformer 380V 400V Used In Photovoltaic Industry

60Hz 60kva 3 Phase Transformer 380V 400V Used In Photovoltaic Industry

three phase power transformer

3 phase isolation transformer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power

Certification:

CE, ISO:9001

Model Number:

SGF-60KVA

Contact Us
Request A Quote
Product Details
Product Name:
3 Phase Photovoltaic Transformer
Rated Capacity:
60KVA
Rated Frequency:
50Hz/60Hz
Working Efficiency:
98%
Usage:
For Photovoltaic Industry
Insulation:
Class F
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiation
Packaging Details
Wodden Case
Delivery Time
According to Quantity
Payment Terms
T/T,
Supply Ability
600 pcs per Month
Product Description

60Hz 60kva 3 Phase Transformer 380V 400V Used In Photovoltaic Industry



1. Quick Details



Item: three phase transformer (power distribution cabinet for photovoltaic power generation)

Model: SGF-60KVA

Origin place: Jiading District, Shanghai

Brand: Ewen or OEM/ODM

Rated power: 60KVA

Primary voltage: 380V/400VAC

Secondary voltage: 380V/400VAC

Rated frequency: 50Hz-60Hz

Working efficiency: 98%

Appropriate working temperature: -15~50℃

Appropriate working altitude: <3000m

Appropriate relavant humidity: 20%-90%

Ventilation requirement: sound ventilation to ensure heat dissipation

Output accuracy: ±3V-5V

Reaction speed: less than two seconds

Connection way: △/Y, Y/Y, Y/△ etc.

Cooling way: air cooling

Type: dry type

Noise: <35db

Temperature rise: less than 80℃

Dielectrical strength: 3000vac/min

Over-load bearing capability: 30s for 120% rated power

Time relay device: yes, for time control



2. Product Overview



The product described is a 60KVA three phase transformer, or more precisely, a three phase isolation power distribution cabinet with a 60KVA transformer. The product is specially designed for photovoltaic power generation. The input voltage and the output voltage are 380V or 400V. It's customized according to your requirement.



The enclosure is specially designed, with control system at the upper half and the transformer holding room at the bottom half of the cabinet. The input and output voltage could be shown in the pointer meters. Or it could be shown in LCD displaying meters. This could be changed if needed.



If you have any requirement, please let us know. The product could be customized according to your needs and the real situation.



3. Product Features


Anti-interference The primary and the secondary is separated from each other, which could resist the interference of harmonics.
Over-current protection Over-current protection is design with this product. In case of over-load or over-current, an air switch is designed to protect the transformer.
Time control A time relay is designed with the product, which enables you to set the time to power on or power off.
Grid connected The output voltage could be circuit grid connected because the electricity generated through this transformer is purified, without any impurity.
Delicate design The upper half of the product is the control system and the bottom half is the transformer.



4. Product Functions



① Used for photovoltaic power generation

② Used as city power

③ Anti-impurities

④ Isolation primary from secondary voltage



5. Company Advantages



① Manufacturer and trading company

② Quick response rate

③ Inexpensive goods

④ Professional techincal team

⑤ Strong production team

⑦ All-round pre-sale and on-purchase services

⑧ Comprehensive aftersale services



6. Product Pictures

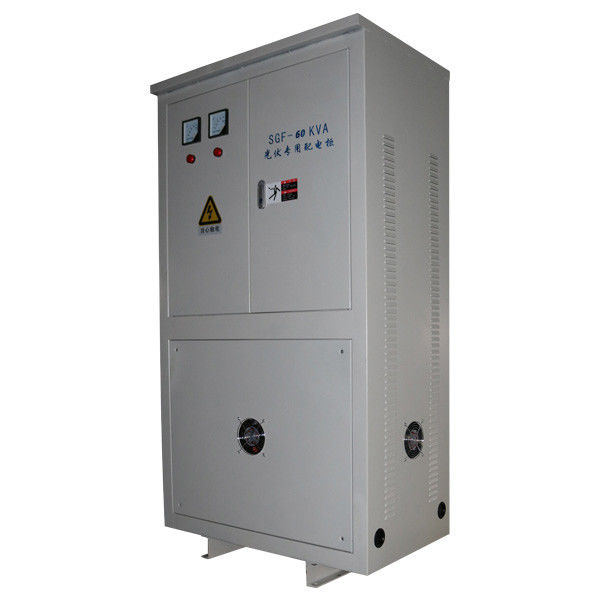

60Hz 60kva 3 Phase Transformer 380V 400V Used In Photovoltaic Industry 0

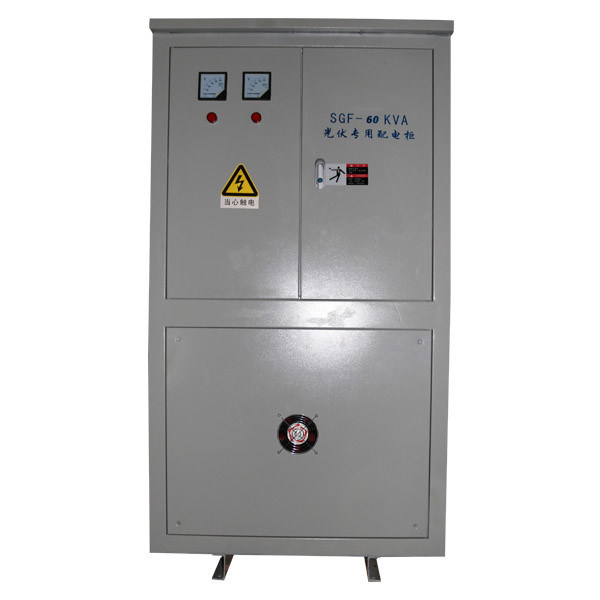

60Hz 60kva 3 Phase Transformer 380V 400V Used In Photovoltaic Industry 1
