AVR 10KVA Three Phase Voltage Stabilizer 50Hz With Pointer Meters Display

AVR 10KVA Three Phase Voltage Stabilizer 50Hz With Pointer Meters Display

three phase automatic voltage regulator

3 phase voltage stabilizer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power/OEM/ODM


CE, ISO:9001

Model Number:


Contact Us
Request A Quote
Product Details
Three Phase Voltage Stabilizer
Pointer Meters
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Standard Export Wooden Case
Delivery Time
5-8 work days (based on your quantity)
Payment Terms
T/T, , L/C
Supply Ability
400 pcs per Month
Product Description


AVR 10KVA Three Phase Voltage Stabilizer 50Hz with Pointer Meters Display
1. Product Profile

Three phase voltage stabilizer/regulator is an electrical equipment applied in various occasions. It is usually used to solve the problem of unstable voltage supply.


The product described here is a three phase voltage stabilizer with rated capacity of 10KVA, input voltage range 280VAC to 430VAC, output voltage 380VAC.
2. Product Specifications

Get the detailed product specifications of this 10KVA three phase voltage stabilizer from the following chart:

Product name Three phase automatic voltage stabilizer/regulator Product model TNS-10KVA
Place of origin Shanghai, China Product brand Ewen
Rated capacity 10KVA Rated frequency 50Hz-60Hz
Rated input voltage 380VAC or other voltage locally (3 phase 4 wires) Rated input voltage range 280VAC-430VAC or customized
Rated output voltage 380VAC or customized Output accuracy ±2%
Phase Three phase Insulation class F
Voltage regulation Independent phase control Admitted load variation 0-100%
Waveform distortion Nil Operation temperature -15℃~45℃
Storage temperature -15℃~60℃ Protection degree IP23
Cabinet type Metallic cabinet Display Pointer meters/digital meters alternative
Cabinet color RAL 7035 Terminal board Input and output terminals

3. Product Features

There are many advantages of this three phase voltage stabilizer. Following description is a part of the features of this product:


① Full automatic voltage regulation: the voltage stabilizer/regulator works automatically to stabilize the voltage when it fluctuates.


② High precision: the output voltage is ±2% of the rated output voltage, which ensures sound performance of the load equipment.


③ Fast response speed: the voltage regulator reacts quickly to voltage change. Normally one second for mild voltage change and two seconds for great voltage fluctuation.


④ Clear voltage display: pointer meters or digital meters show the input and output data clearly.


⑤ Convenient wiring terminals: the terminal board is very convenient for you to connect wires. There are indications telling how to connect wires correctly.


⑥ Light weight: the weight of this TNS-10KVA three phase voltage stabilizer is relatively light. It’s easy to be moved and installed.


⑦ Strong load bearing capability: the servo motor type voltage stabilizer/regulator has a strong load bearing capability.


⑧ Long lifetime: high quality electronic components makes it have a long service time. Normally it could function more than ten years under proper maintenance and usage.


4. FAQs

Q1: What is the MOQ:

A1: The MOQ is one set.


Q2: How long is the lead time for this product?

A2: The lead time depends on the product quantity and the product requirements. If the quantity is not that large, it’s five to ten days. Besides, if the product you need is normal products, the lead time could be shorter than customized products.


Q3: What certificates have you obtained?

A3: We have got CE and ISO: 9001 certificates. If necessary, we would try to get more certificates.


Q4: How long is the warranty?

A4: We provide one-year warranty for our customers. During this period of time, we would provide spare parts for you for free.



5. Product Display

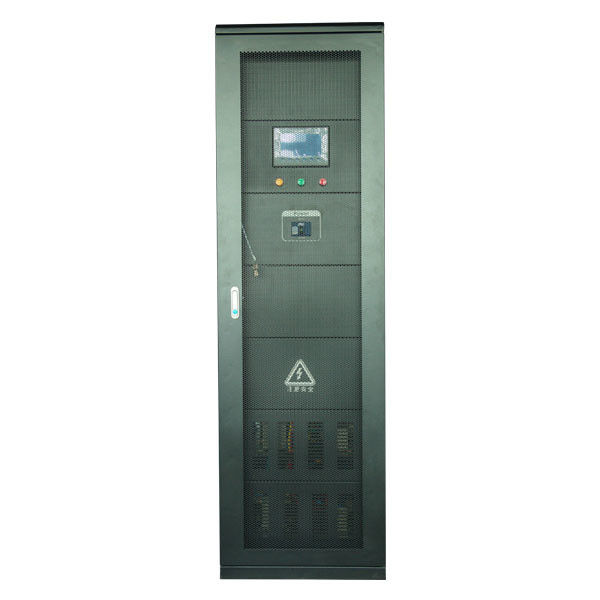

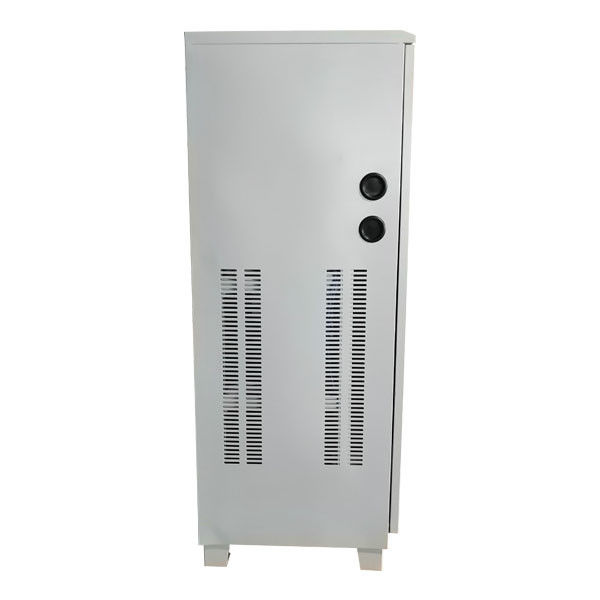

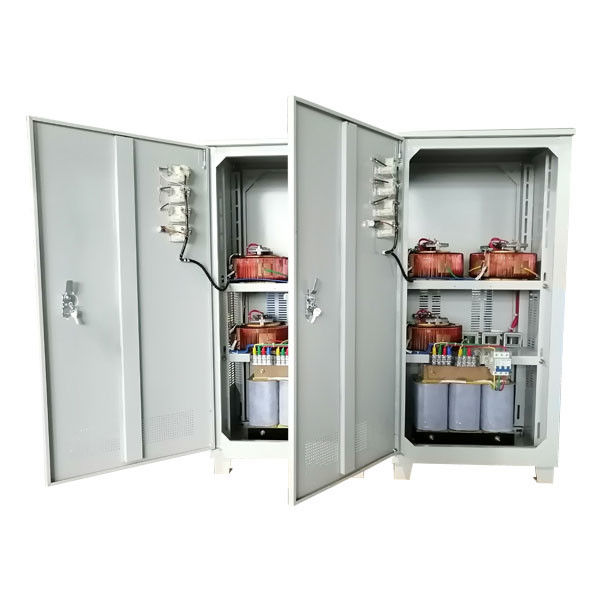

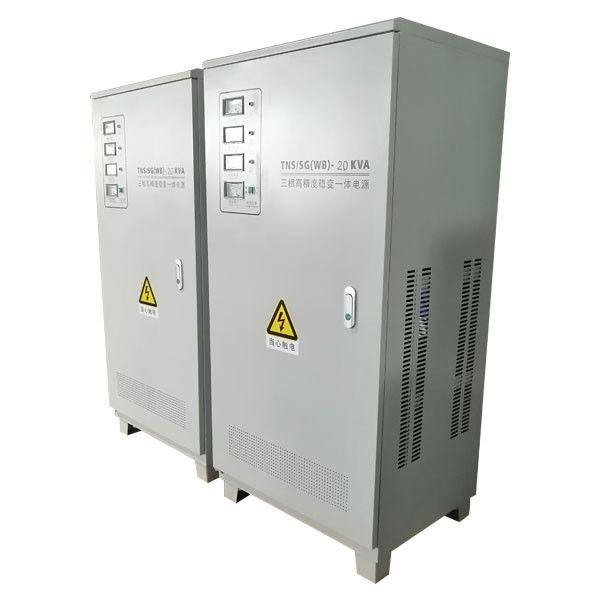

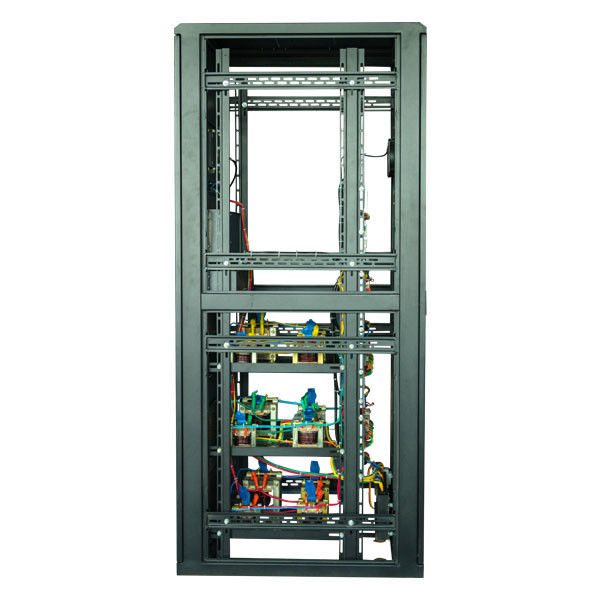

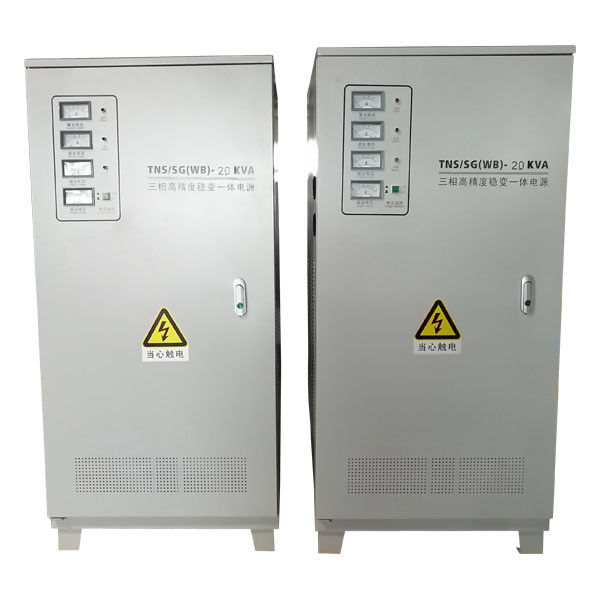

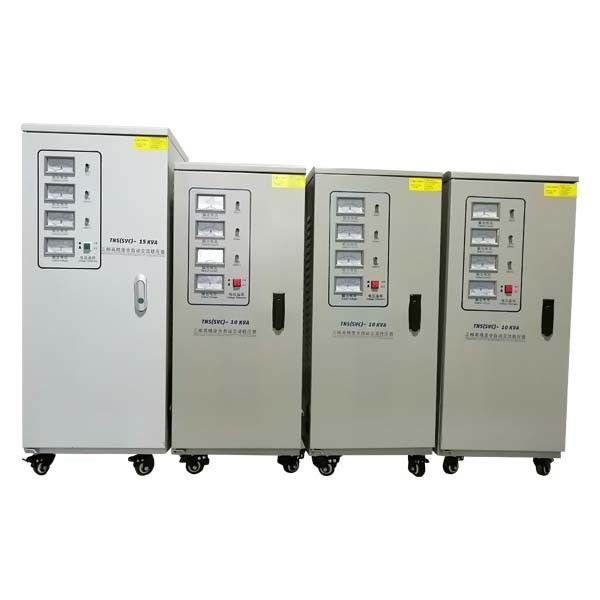

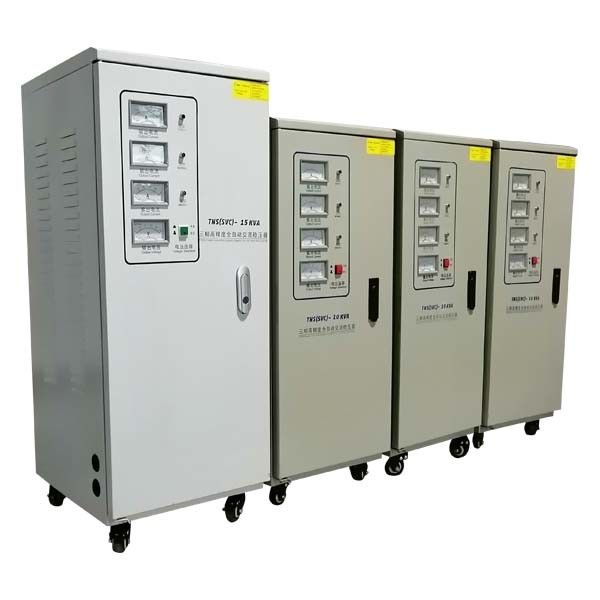

AVR 10KVA Three Phase Voltage Stabilizer 50Hz With Pointer Meters Display 0
