Oil Immersed Three Phase Voltage Stabilizer AVR 1000KVA 380V With Digital Display

Oil Immersed Three Phase Voltage Stabilizer AVR 1000KVA 380V With Digital Display

three phase automatic voltage regulator

3 phase voltage stabilizer

Place of Origin:

Shanghai, PRC

Brand Name:

Ewen Power/OEM/ODM

Certification:

CE, ISO: 9001

Model Number:

TNSJA-1000KVA

Contact Us
Request A Quote
Product Details
Name:
Three Phase Voltage Stabilizer
Type:
Oil Immersed
Material:
Copper
Voltage Stabilization:
380V 400V 415V 440V Etc. Or Customized
Capacity:
1000KVA
Load Bearing Capacity:
One Hour For 120% Load
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Standard Export Wooden Case
Delivery Time
According to Quantity
Payment Terms
T/T, , L/C
Supply Ability
300 pcs per Month
Product Description



Oil Immersed Three Phase Voltage Stabilizer AVR 1000KVA 380V with Digital Display







1. Product Parameters



Product name Three phase oil-immersed voltage regulator/stabilizer
Product brand Ewen Power/OEM
Place of origin Shanghai, China
Product model TNSJA-1000KVA
Rated capacity 1000KVA
Input voltage 380V±20% wire voltage/220V phase voltage
Output voltage 380V±2% wire voltage/220V phase voltage
Insulation class F
Protection class IP21/23/44 alternative
Working temperature -10~50℃
Storage temperature -20~60℃
Working altitude Less than 2000m
Working relative humidity 20-90%
Load bearing capability Maintaining one hour for 120% loads
Display Digital meters showing input and output voltage
Dimension 1230*1260*1950mm







2. Product Features



High working efficiency: the working efficiency of this TNSJA series voltage regulator is up to 90%, much more higher than dry type one.



Long lifetime: the machine could work for more than 10 years if under proper maintain and usage.



Strong load bearing capability: the load bearing capability of this kind of voltage regulator is higher than other types of voltage regulators.



Quick response speed: the oil-immersed voltage regulator TNSJA series respond quickly to voltage change within one to two seconds.







3. Product Details Display



Get more details of this product through the following pictures.

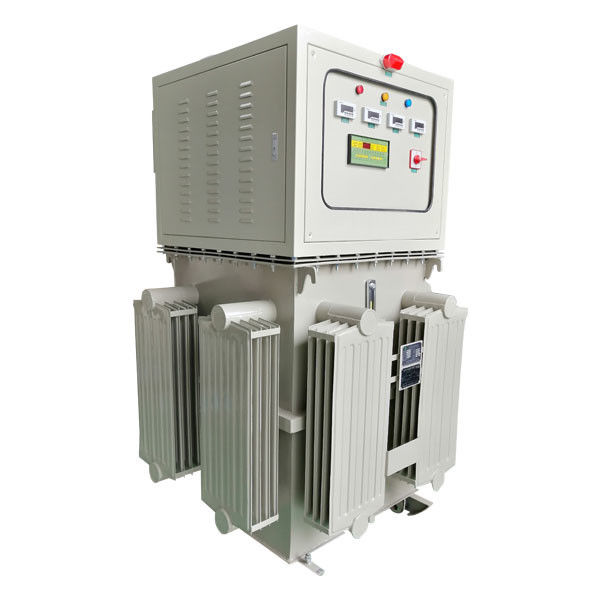

Oil Immersed Three Phase Voltage Stabilizer AVR 1000KVA 380V With Digital Display 0



The front side of the 1000KVA three phase oil-immersed voltage regulator/stabilizer.

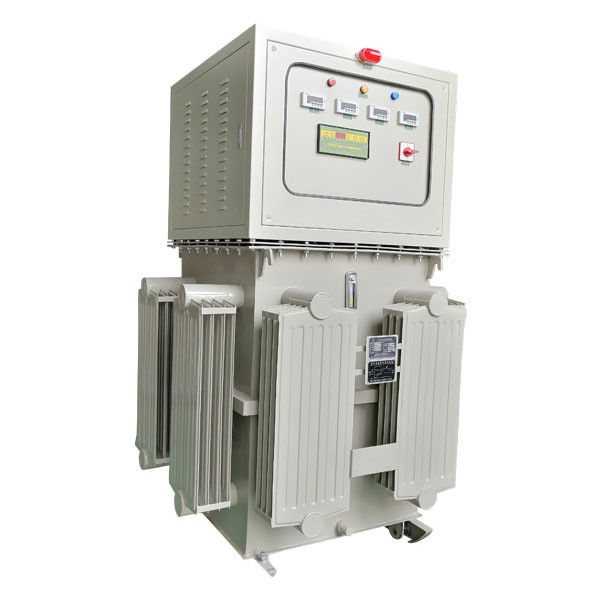

Oil Immersed Three Phase Voltage Stabilizer AVR 1000KVA 380V With Digital Display 1



The back side of the product.





4. FAQs



Q: How can I order your product ?

A: First, please let us know the model and quantity you need. Then we would make PI for you accordingly. After you confirm the PI, we would arrange the order for you after receiving your deposit. When the goods are finished, we would send you the goods and inform you the tracking number. Besides, we would track your goods until you receive the goods.



Q: How long is your warranty period?

A: One-year warranty is provided for our customers. Within this period of time, we could supply spare parts for you for free.



Q: How can I contact you?

A: You could get to us through email, WhatsApp, Skype, Facebook and other social media etc. We would get back to you within 24 hours.



Q: What's your shipment method?

A: We ship by Express, by Air, by Sea, by Train. Normally we would check and compare the shipment method and then provide our customers with the most proper one.



Q: What's about MOQ?

A: The MOQ is one pc.



Q: If i want to make an order to your company, what's the payment method you accept ?

A: We accept T/T, Paypal, , and L/C,etc.
