China AVR Voltage Stabilizer manufacturer

AVR Vertical Volt Stabilizer Analog Meter Display 120KVA Fast Reaction Speed

Product Details:
Place of Origin: Shanghai, China
Brand Name: Ewen Power
Certification: CE, ISO:9001
Model Number: SBW-120KVA
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: According to Quantity
Payment Terms: T/T,
Supply Ability: 400 pcs per Month

Detail Information

Product Name: AVR Voltage Stabilizer Rated Capacity: 120KVA
Display: Analog Meter Display Customization: Available
Working Frequency: 50-60Hz Working Efficiency: 80%-90%
High Light:

auto voltage regulator

,

avr voltage regulator

Product Description







120KVA AVR Voltage Stabilizer Analog Meter Display Customization Available



1. Product Specifications



Item name AVR voltage stabilizer Item brand Ewen
Item model SBW-120KVA Rated capacity 120KVA
Phase Three phase Frequency 50Hz/60Hz
Input Voltage 380V/415V/440V±20% or customized according to your needs
Output voltage 220V/200V/280V or customized according to your needs
Product function Voltage stabilization and transformation
Working theory The product helps stabilizing voltage first and then transform the voltage to a certain figure that you need
Display Analog meter display: input voltage, output voltage, phase A current, phase B current, phase C current.
Protection functions Over-voltage, under-voltage, over-current, over-load, time delay, phase failure etc.
Load bearing capability The product could bear 80% to 90% load of its rated capacity. Its instantaneous over-load bearing capability is very strong.
Product features High voltage regulation accuracy, fast reaction speed, long lifetime, strong load bearing capability, large capacity, copper material etc.



If you have any question on the product parameters, please fell free to let us know.



2. Product Structure



Please have a general idea of the product appearance and its structure through the following pictures. It shows the major parts of this voltage stabilizer: copper column for voltage regulation, transformer for voltage compensation, transformer for voltage switch, knife switch, circuit control board, displaying system etc.



AVR Vertical Volt Stabilizer Analog Meter Display 120KVA Fast Reaction Speed 0



AVR Vertical Volt Stabilizer Analog Meter Display 120KVA Fast Reaction Speed 1



3. Product Purchase Terms



Payment term: T/T, FOB Shanghai/CIF destination port.



Payment amount: 30% advance payment for normal products and at least 50% advance payment for customized product.



Package: standard export wooden case package.



MOQ: 1 set.



Lead time: 10 days normally.





4. Product Maintenance and After-sale Service



It’s easy for you to maintain the product. Firstly, dusting regularly to ensure the normal operation of the product. Secondly, to check all the small parts regularly. If there is any problem, please replace the worn-out one. Thirdly, to observe the operation performance of the product regularly.



As for after-sale service, we make a promise that: first, we provide you with a one-year warranty; second, we would respond within 24 hours after receiving your enquiry; third, we could offer services on telecommunication guidance; fourth, we offer life-long maintenance services with cost price for you.

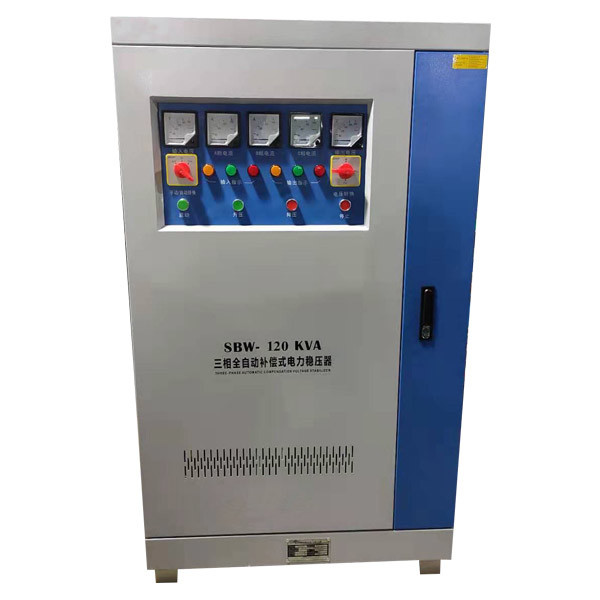

5. Product Show



AVR Vertical Volt Stabilizer Analog Meter Display 120KVA Fast Reaction Speed 2



The product appearance is like the picture above. Certainly, the color of the cabinet and the size of the cabinet all could be tailored according to your needs.
