China AVR Voltage Stabilizer manufacturer

High Power Industrial Voltage Stabilizer 380V 150KVA 50Hz 60Hz Three Phase

Product Details:
Place of Origin: Shanghai, China
Brand Name: Ewen Power
Certification: CE, ISO:9001
Model Number: SBW-150KVA
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: According to Quantity
Payment Terms: T/T,
Supply Ability: 400 pcs per Month

Detail Information

Product Name: Industrial Voltage Stabilizer Rated Capacity: 150KVA
Input Voltage: 380V±20% Or Tailored Output Voltage: 380V±2
Rated Frequency: 50Hz/60Hz Feature: High Power
High Light:

industrial servo voltage stabilizer

,

industrial voltage regulator

Product Description

High Power Industrial Voltage Stabilizer 380V 150KVA 50Hz 60Hz Three Phase



1. Product Parameters



Item name Industrial voltage stabilizer Phase Three phase
Model SBW-150KVA Capacity 150KVA
Frequency 50HZ-60HZ Feature High power
Input voltage 304-456V Output votlage 380V
Input current 227A Output current 227A
Insulation Class F Dielectrical strength 2000VAC/1min
Ambient environment Temperature -10℃~45℃
Altitude <1000m
Humidity 20%-90%
Ventilation Sound ventilation
Vibration No severe vibration



2. Applicaitons



The product decribed here is a three phase high power industrial voltage stabilizer. Its rated capacity is 150KVA. The input voltage range could be 304V to 456V while the output voltage is 380V (Customization is accepted). There are lots of places and areas that need this 150KVA industrial voltage stabilizer as a stable power supply.



Firstly, it can be applied in large factories and plants to be a general power supply for all the electrical appliance. Secondly, it could be used in hospitals, schools, and other places that need the product as a power supply. Thirdly, it could be used with single or several electric equipment, like generator, laser-cutting machine, air compressor, and other device etc. As long as there are unstable three phase input voltage, the voltage stabilizer could be used as a three phase voltage power supply.


3. Product Features



① High output accuracy: the output voltage accuracy is ±2% of the rated one.

② Changeble working models: manual regulation and automatic regulation could be switched according to your needs.

③ Quick response rate: one second is enough for 10% fluctuation. For great fluctuation, less than six seconds.

④ Strong load-bearing capability: its load bearing capability is relatively strong, whatever the load is.

⑤ Delicate design: both inner and outer design is pleasing.


4. Relative Product Recommended



Name

Type Power

Input

Voltage

Range

Output

Voltage

C(A)

Three phase voltage stabilizer (high precision) TNS-15K 15KVA

380V±20%

or tailored

380V or

customized

22
TNS-30K 30KVA

380V±20%

or tailored

380V or

customized

45
TNS-45K 45KVA

380V±20%

or tailored

380V or

customized

68
TNS-50K 50KVA

380V±20%

or tailored

380V or

customized

75
TNS-60K 60KVA

380V±20%

or tailored

380V or

customized

91
TNS-90K 90KVA

380V±20%

or tailored

380V or

customized

136
Single phase voltage stabilizer (high precision ) TND-10K 10KVA

220V±20%

or tailored

220V or

customized

45
TND-15K 15KVA

220V±20%

or tailored

220V or

customized

68
TND-20K 20KVA

220V±20%

or tailored

220V or

customized

90
TND-30K 30KVA

220V±20%

or tailored

220V or

customized

136
TND-40K 40KVA

220V±20%

or tailored

220V or

customized

181
TND-50K 50KVA

220V±20%

or tailored

220V or

customized

227
High power voltage stabilizer (Single phase) DBW-50K 50KVA

220V±20%

or tailored

220V or

customized

227
DBW-80K 80KVA

220V±20%

or tailored

220V or

customized

363
DBW-100K 100KVA

220V±20%

or tailored

220V or

customized

454
DBW-150K 150KVA

220V±20%

or tailored

220V or

customized

681
DBW-180K 180KVA

220V±20%

or tailored

220V or

customized

818
DBW-200K 200KVA

220V±20%

or tailored

220V or

customized

909
DBW-300K 300KVA

220V±20%

or tailored

220V or

customized

1363

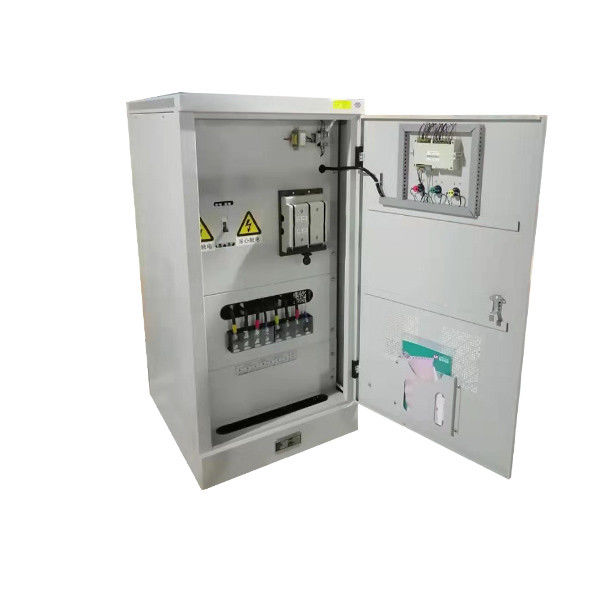

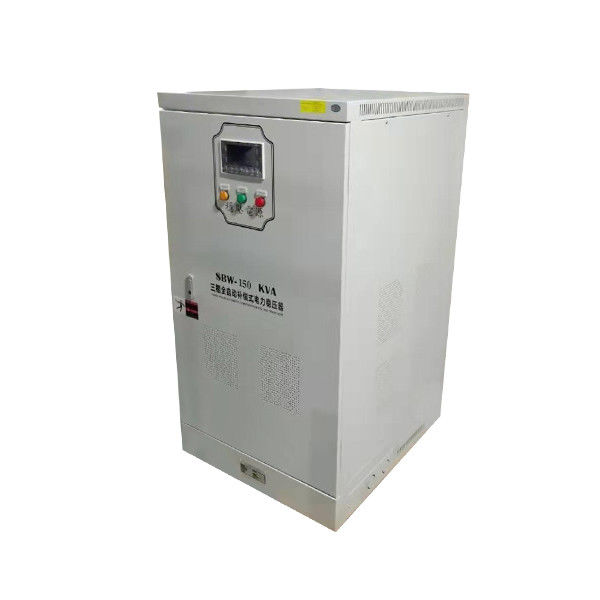

5. Product Pictures


High Power Industrial Voltage Stabilizer 380V 150KVA 50Hz 60Hz Three Phase 0

High Power Industrial Voltage Stabilizer 380V 150KVA 50Hz 60Hz Three Phase 1

High Power Industrial Voltage Stabilizer 380V 150KVA 50Hz 60Hz Three Phase 2
