China AVR Voltage Stabilizer manufacturer

Multiple Output Switching Power Supply 220VAC 24VDC 36VDC 50HZ 60HZ 42A

Product Details:
Place of Origin: Shanghai, China
Brand Name: Ewen Power
Certification: CE, ISO:9001
Model Number: LS-1000-24
Payment & Shipping Terms:
Minimum Order Quantity: 3 pc
Price: Negotiation
Packaging Details: Carton
Delivery Time: According to Quantity
Payment Terms: T/T,
Supply Ability: 1500 pcs per Month

Detail Information

Product Type: LS-1000-24 Rated Power: 1000W
Working Frequency: 47Hz-63Hz Input Voltage: 85-264V AC (Customization Available)
Output Voltage: 24V DC (Customization Available) Output Current: 41.67A
High Light:

smps power supply

,

universal switching power supply

Product Description

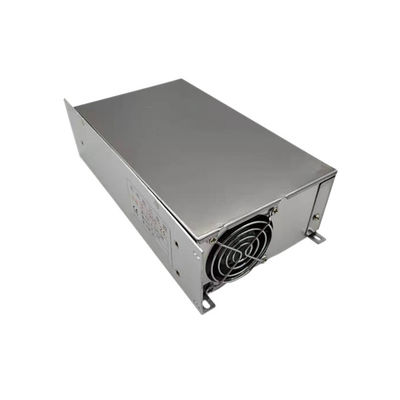

Multiple Output Switching Power Supply 220VAC 24VDC 36VDC 50HZ 60HZ 42A



1. Product Specification



Product name AC DC switching power supply Product type LS-1000-24
Rated capacity 1000W Rated frequency 50Hz-60Hz
Input voltage range 85VAC-264VAC or customized Input current 4.55A
Output voltage  24VDC or customized Output current 41.67A
Output precision ±2% Working efficiency 98%
Working Temperature -10℃~60℃ Storage Temperature -20℃~85℃
Working Humidity 20%~90% Storage Humidity 10%~90%
Protections Over-load Protection, over-temperature protection, short circuit protection, over-voltage protection.



These are the basic parameters of the 1000W AC DC switching power supply. For furthermore information, please contact us without any hesitation.



2. Product Features



The chart below introduces the main features of this LS-1000-24 AC DC switching power supply:



Wide application This product is widely used in ACS, medical and beauty device, LED lighting, electrical power system, communication system and others.
Authority certificates Some models has been approved by CE and ISO:9001 authority organizations.
Various models There are more than 1000 models optional.
High working efficiency The working efficiency of this AC DC switching power supply could be 98%.
Wide input range The input voltage could be 85VAC to 264VAC.
Full protections OVer-temperature, over-current, over-load, over-voltage protections.
Sound ventilation Temperature-control fan is designed with the product.



3. Applications



AC DC switching power supply is widely used in industrial areas. It could be used with various equipment like the followings:



LED lights

Tablet

Water purifier

Router

LCD

Motor

Medical machine

POS machine

Beauty & Health equipment

Humidifier

etc.



4. Product Advantages



Low temperature rise The product is designed with temperature-control fan. The calorific value is very low.
High stability The AC DC switching power supply could work stably and constantly.
High security It is suitable for environment like high humidity, high dust, and strong vibration.
Long lifetime design Normally the product could work for 60,000 hours.
Quality control The product passes the corresponding tests like temperature testing, aging testing, efficacy testing, short circuit testing etc.
Customization available The power supply module could be customized according to your needs.
High precision The output voltage is very precise to the rated output one.
Fast reaction speed The power supply module respond very quickly to satisfy the needs of 24VDC power supply.
