| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO:9001 |
| Model Number: | SBW-50KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 400 pcs per Month |
| Product Name: | Three Phase High Power Voltage Stabilzier | Operating Frequency: | 50Hz~60Hz |
|---|---|---|---|
| Rated Capacity: | 50KVA | Working Temperature: | -10℃~45℃ |
| Input Voltage(V): | 304-456 | Output Voltage(V): | 380±2% |
| Highlight: | avr auto voltage regulator,high power voltage regulator |
||
380V Industrial Solid State Voltage Stabilizer 50KVA 50Hz 60Hz With Copper Column
1. Product Profile
380V Industrial High Power Voltage Stabilizer 50KVA introduced here is a three phase voltage regulator. It's widely used for industrial areas. The rated capacity of this product is 50KVA, with input voltage of 304 to 456V and output voltage 380V. Certainly, the capacity, input voltage, and output voltage all could be customized according to practical conditions.
It could be used for electrical equipment like machine tools, pumps, large-capacity printers, laser-cutting machines, and air compressors etc. Also, it could be used in places including hospitals, schools, construction sites, mining areas, work plants, and factories etc.
For more detailed parameters of this 50KVA high power voltage stabilizer, please see part two.
2. Detailed Specifications
| Product Name | Three Phase High Power Voltage Stabilizer |
| Product Brand | Ewen Power (OEM & ODM available) |
| Place of Origin | Shanghai, China |
| Product Type | SBW-50KVA |
| Rated Power (KVA) | 50 |
| Working Frequency (HZ) | 50 to 60 |
| Input Voltage (V) | 304~456 or customized |
| Output Voltage (V) | 380 or customized |
| Input Current (A) |
75 (based on the voltage) |
| Output Current (A) | 75 (based on the voltage) |
| Voltage Stabilization Accuracy | ±2% |
| Insulation Class | F |
| Insulation Resistance (MΩ) | ≥2 |
| Protection Class | IP20 |
| Working Temperature (℃) | -10~45 |
| Working Altitude (m) | ＜1000 |
| Product Efficiency | ＞98% |
| Product Usage | Stabilizaing the output voltage for electrical appliance |
| Power Loss | 1% of rated capacity |
| Product Protections | Short circuit, over-voltage, over-current, under-voltage, overload, over temperature, and delay protection etc. |
If you want to know more information about this 50KVA voltage regulator, please contact us.
3. Product Features
| Feautres | Discription |
| Higher load-bearing capability | This high power compensation voltage regulator has a better load-bearing capability than normal three phase voltage stabilizers. |
| Two working modes | you can change the working mode of the voltage stabilizer between power supply and stabilizing the voltage manually. |
| High voltage stabilization accuracy | The precision is ±2%. |
| Fast response rate | This stabilzier would respond quickly to the voltage change and output a stable voltage to the electrical equipment. |
| Low risk of machine malfunction | The stabilzier performs very stably and has a low risk of malfunction. |
| Long lfetime | The lifetime of the stabilizer is more than 10 years normally. |
| Different protections | Over-voltage, under-voltage, short circuit, over-current, over-load, time delay, bypass etc. |
4. Our Services
① Sampling service: we could provide samples for you with a charge of sampling fees. You could propose your ideas to us and the product could be customized according to your needs.
② One-year warranty period: 12 months are provided as a warranty period. In this period of time, as long as there is any problem, you could contact us without any hesitation. We would try our best to help you with the probelm.
③ OEM and ODM service: putting your logo on the product is acceptable. You could provide drawings, based on which the product would be produced.
④ Remote guidance: due to the long distance, our professional technicians could guide our customers in wiring or using the stabilizer.

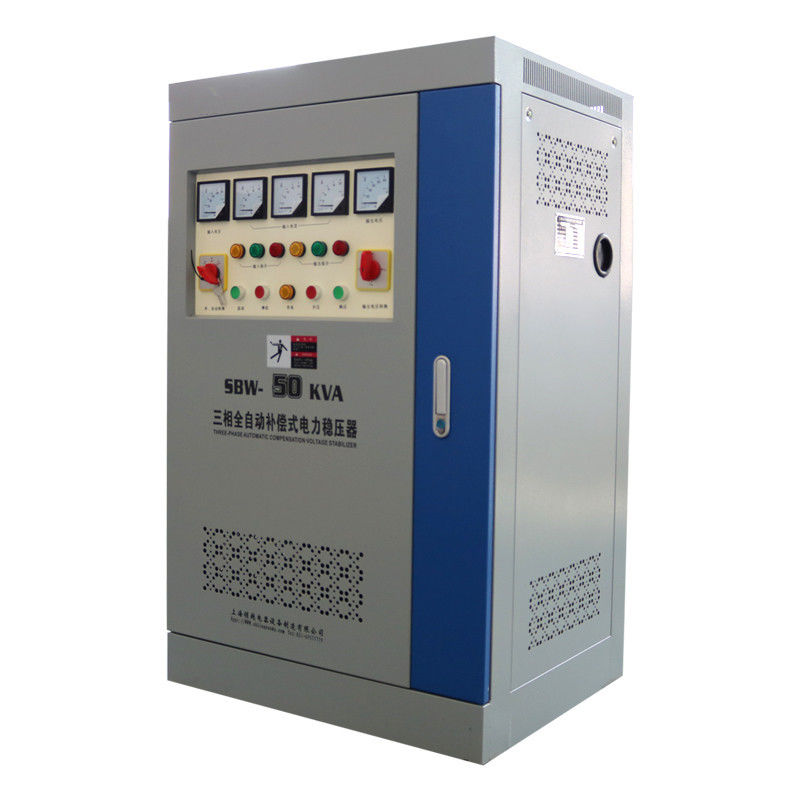

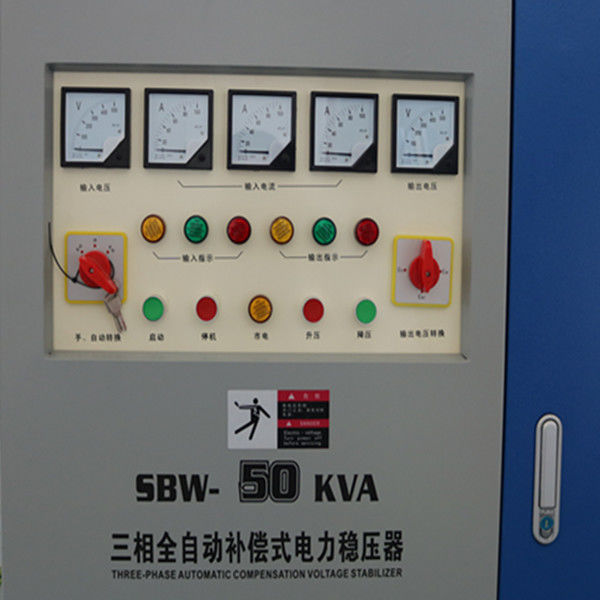

5. Product Display
