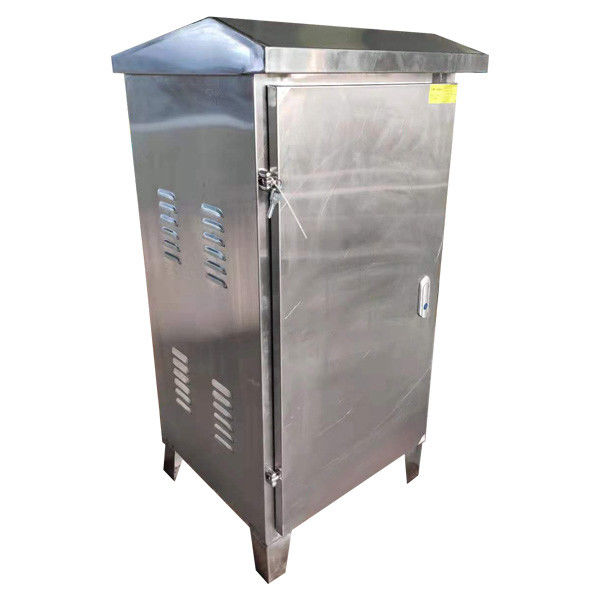

30 KVA Industrial Servo Voltage Stabilizer With Stainless Waterproof Enclosure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItem | Industrial Voltage Stabilizer | Phase | 3P |
---|---|---|---|
Input | 380V±20% | Power | 30KVA |
Enclosure | Stainless & Waterproof | Dimension | Customized |
Highlight | industrial servo voltage stabilizer,industrial voltage regulator |
30 KVA Industrial Servo Voltage Stabilizer With Stainless Waterproof Enclosure
1. Basic Information
Item Name | Three Phase Voltage Stabilizer |
Item Model | TNS(SVC)-30KVA/30000VA |
Product Brand | Ewen |
Phase | Three |
Input Voltage | 380V/400V/415V/440V±20%/15%/30% or any range customized |
Output Voltage | 380V/400V/415V/440V±2% or any voltage you need |
Rated Frequency | 50Hz to 60Hz |
Input Current | 45.5A (based on 380V output) |
Output Current | 45.5A (based on 380V output) |
Insulation | Class F |
Response Time | Less than one second with 10% voltage deviation |
Size | Customized |
Weight | 110KG for reference |
Feature | High precision, quick response, stable performance, stainless enclosure, availabity for outdoor use. |
2. Technical Specification
Insulation Resistance | ≥2 MΩ |
Voltage Stabilization Precision | ±2% |
Power Factor | 98% |
Electrical Strength | 2000VAC/MIN |
Appropriate Temperature | -15℃~50℃ |
Appropriate Altitude | <3000M |
Appropriate Humidity | 20%~90% |
Protection Class | IP23 |
Waveform Distortion | Nil |
Protection Functions | High voltage, low voltage, short circuit, over-current, over-load etc. |
Over-load Bearing Capacity | 30s with double rated capacity |
Function | Voltage stabilization for industrial use |
Selling Point | Waterproof, stainless enclosure |

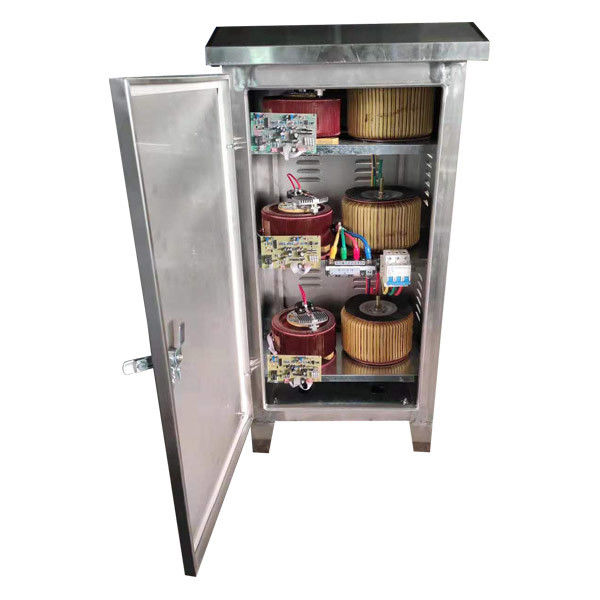

3. Major Components
Copper Coils for Regulating Voltage | Aluminum Coils for Compensating Voltage |
Carbon brush | Integrated Circuits |
Servo motors | Stainless Enclosure |
Copper Wires | Omni-directional Wheels |
Air Switch | Analog Pointer Meters |
The components introduced above are major parts of this 30KVA three phase voltage stabilizer with waterproof and stainless enclosure.
4. Main Features
① Clear analog meter display
② Durable carbon brush
③ Fast response speed
④ High output precision
⑤ Delicate design
⑥ Sound heat dissipation
⑦ Suitablity for all kinds of loads
⑧ Waterproof (suitability for outdoor use)
⑨ Strong load bearing capability
⑩ Copper coils (strengthening electricity conductiveness)
5. Product Details
