| Place of Origin: | Shanghai, PRC |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO: 9001 |
| Model Number: | TNS(SVC)-60KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | Depending on Quantity |
| Payment Terms: | T/T, , L/C |
| Supply Ability: | 300 pcs per Month |
| Item: | Three Phase Voltage Stabilizer | Capacity: | 60KVA/KW |
|---|---|---|---|
| Display: | Digital Meters | Wheels: | Movable/Omnidirectional |
| Cabinet Type: | Metallic Type | Cabinet Color: | RAL 7035 |
| Highlight: | three phase automatic voltage regulator,3 phase voltage stabilizer |
||
60KVA 60KW 3 Phase Voltage Stabilizer with Digital Meters and Movable Wheels
1. Product Parameters
| Item | Three phase automatic voltage regulator/stabilizer |
| Rated capacity | 60KVA |
| Product model | TNS(SVC)-60KVA |
| Rated frequency | 50HZ-60HZ±2% |
| Rated input voltage | 380VAC±20% or customized |
| Rated output voltage | 380VAC±2% or customized |
| Output precision | ±2% |
| Working efficiency | 80% or higher customized |
| Power factor | 80% or higher tailored |
| Insulation class | F or higher customized |
| Insulation resistance | ≥2MΩ |
| Di-electrical strength | 2500VAC/MIN |
| Cabinet color | RAL 7035 or tailored as you need |
| Omnidirectional wheels | Installed |
| Cabinet type | Metallic type |
| Protection degree | IP23/21/44 |
| Wiring board | Bus bar wiring terminals |
| Wiring position | Bottom of the machine |
| Admitted load variation | 0-100% |
| Admitted phase imbalance | 0-100% |
| Regulation way | Three phase independent regulation |
| Size | 500*550*1095mm |
| Weight | 158kg for reference |
2. Product Display

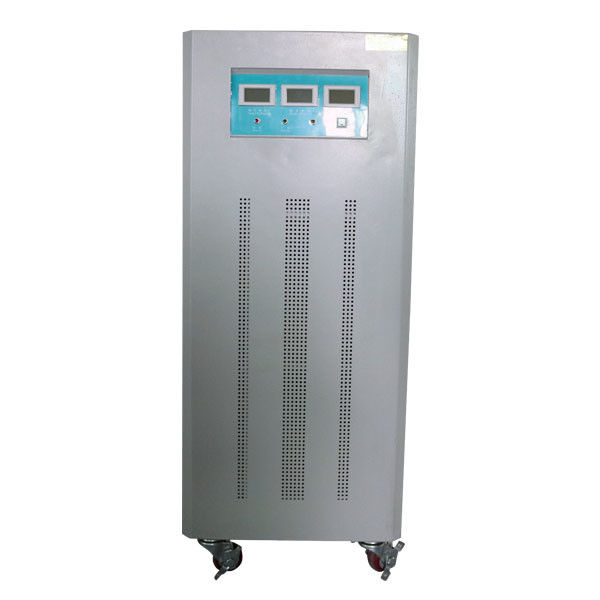

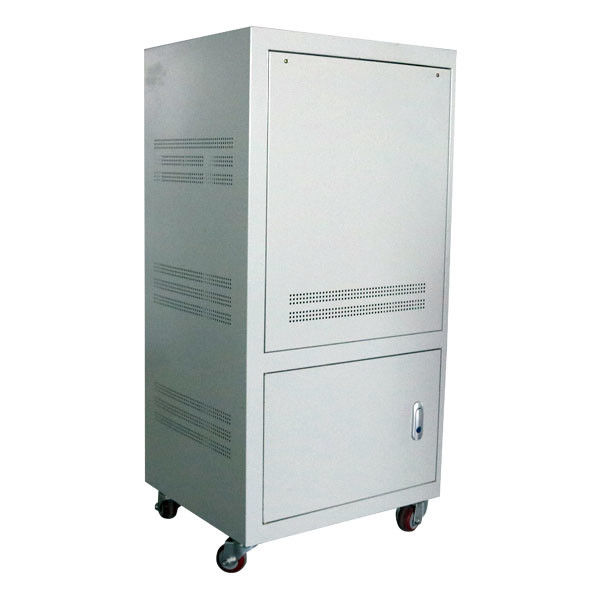

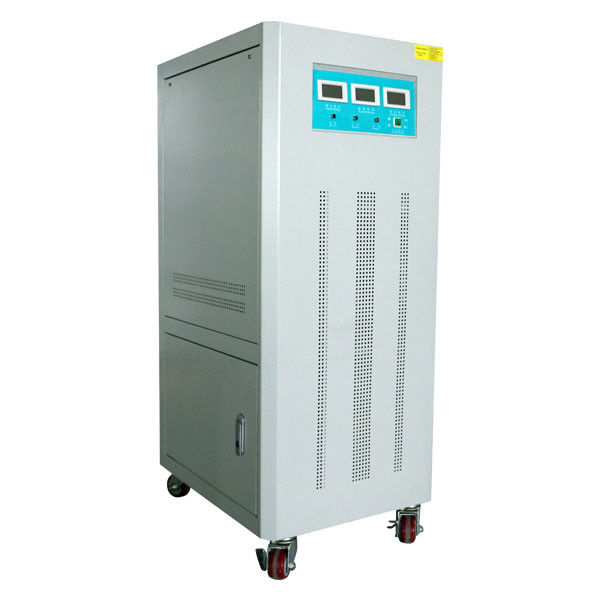

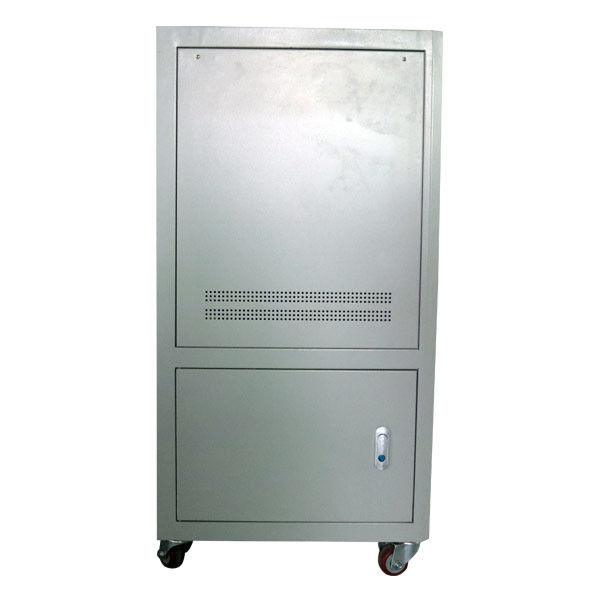

Get the overall appearance through the folowing pictures:
See the spare parts pictures to get more information of the product:
The digital meters.
The wiring terminals.
The cabinet lock.
The omnidirectional wheels.
The heat ventilation holes.
3. Product Advantage
Easy for movement: the omnidirectional wheel design facilitates easier movement of the product.
High output precision: the output voltage is very precise to rated one.
Fast response speed: the voltage regulator reacts quickly to voltage change within one to two second.
Clear data display: there are two digital meters showing input voltage and output voltage respectively.
Easy maintenance: it’s very convenient for customers to maintain the product by just checking the working condition and the performance of the product regularly.
4. Three Phase Voltage Regulator Types
| Type | Capacity | Input | Output | Display |
| TNS-6KVA | 6KVA | 380V±20%/customized | 380V±2%/Customized | Pointer meter/digital meter alternative |
| TNS-9KVA | 9KVA | |||
| TNS-15KVA | 15KVA | |||
| TNS-20KVA | 20KVA | |||
| TNS-30KVA | 30KVA | Pointer meter/digital meter/LCD displaying screen alternative | ||
| TNS-40KVA | 40KVA | |||
| TNS-45KVA | 45KVA | |||
| TNS-50KVA | 50KVA | |||
| TNS-60KVA | 60KVA | |||
| TNS-75KVA | 75KVA | |||
| TNS-90KVA | 90KVA | |||
| TNS-100KVA | 100KVA |
5. FAQs
Q: What certificates have you obtained yet?
A: We have obtained CE and ISO:9001 certificates. We are trying to get more certificates related to our products.
Q: Tell me the package of your products?
A: For large products, we use strong and standard export wooden case for protection. For small products, we use carton.
Q: Can you put our logo on your product?
A: Yes, we accept OEM and ODM. If the quantity is relatively large, your logo could be put on our products.
Q: Where is your major market?
A: Our markets include central Asia, East Asia, South Asia, Africa, South America, and North America etc.
