| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO:9001 |
| Model Number: | TNS(SVC)-20KVA |
| Minimum Order Quantity: | 1 Unit |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, |
| Supply Ability: | 500 pcs per Month |
| Rated Power: | 20KVA | Rated Current: | 30A (When Output Voltage Is 380V) |
|---|---|---|---|
| Rated Input: | 304V To 456V | Rated Output: | 380V |
| Output Precision: | ±2% ±3% | Environment: | Both Indoor And Outdoor |
| Highlight: | three phase automatic voltage regulator,3 phase voltage stabilizer |
||

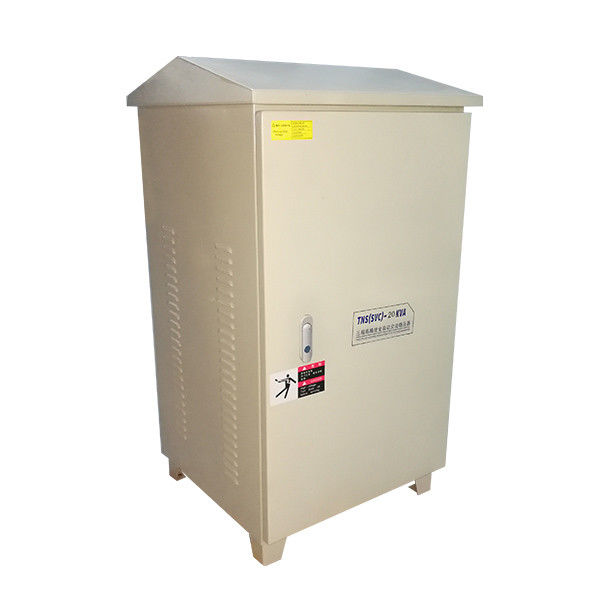

Outdoor Three Phase Voltage Stabilizer 20KVA 50Hz 380V 400V Energy Saving
1. Quick Details
Please get a quick profile of this 20KVA three phase voltage stabilizer:
Product name: Three phase voltage stabilizer
Product type: TNS(SVC)-20KVA
Main feature: waterproof
Working frequency: 47~63Hz
Ambient temperature: -10℃ to 45℃
Input voltage: 304 to 456V
Output voltage: 380V±2%
Input and output current: 30A
Insulation class: F
Insulation resistance: ≥2MΩ
Temperature Rise: ＜80℃
Cooling method: air cooling
Display: Voltmeter, Ampere meter
Place of origin: Shanghai City, PRC
Brand: Ewen
2. Product description
The TNS(SVC) series product of three phase voltage stabilizer is widely used in industrial areas. Its major function is to stabilize the fluctuating voltage at 380V or 400V or any other voltage that you need. The input voltage range is 304V to 456V (for normal 380V output), while the output voltage is 380V±2%.
This product intorduced is a waterproof voltage stabilizer. It can be used outdoor, whatever the weather is. The rated capacity is 20KVA. Certainly, it could be customized according to your loads.
The applications are various. It could be used in plants and workshops of large companies. It could be applied for medical device. Also, it can be used for all kinds of electrical equipment which needs stable power supply. It could be used for mining equipments, generators, laser-cutting machines, etc.
3. More Technical Parameters
For more technical parameters, please see the following chart:
| Output Accuracy | ±2% | Response Time | ＜1s |
| Working Efficiency | 98% | Working Frequency | 47Hz to 63Hz |
| Working Altitude | Less than 1500m | Electric Resistance | 2000VAC/1Min |
| Input Current | 30A | Output Current | 30A |
| Protection Class | IP44 | Waveform Distortion | No addtional waveform distortion |
| Function | Stabilizing voltage at a certain value | Overload Capacity | 30s with 120% of its rated capacity |
4. Dimension of TNS(SVC) Series (Normal Products)
Through the following chart, you could have a general idea of the dimension of this series of product:
| Product Type | Dimension (mm) |
| TNS-3KVA | 180*340*510mm |
| TNS-6KVA | 290*330*690mm |
| TNS-9KVA | 330*340*770mm |
| TNS-15KVA | 360*440*770mm |
| TNS-20KVA | 430*390*860mm |
| TNS-30KVA | 460*420*880mm |
| TNS-40KVA | |
| TNS-45KVA | 550*460*1200mm |
| TNS-50KVA | |
| TNS-60KVA | |
| TNS-75KVA | 620*510*1340mm |
| TNS-90KVA | |
| TNS-100KVA |
Thia chart shows the size of normal three phase voltage stabilizer. It's for reference. If you have more questions about this series of product or other relevant products, please feel free to contact us. We would respond within 24 hours to your inquiry and try to help you with the questions.
