Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO:9001
Model Number:
SBW-150KVA
Video
Video
High Power Industrial Voltage Stabilizer 380V 150KVA 50Hz 60Hz Three Phase
1. Product Parameters
| Item name | Industrial voltage stabilizer | Phase | Three phase |
| Model | SBW-150KVA | Capacity | 150KVA |
| Frequency | 50HZ-60HZ | Feature | High power |
| Input voltage | 304-456V | Output votlage | 380V |
| Input current | 227A | Output current | 227A |
| Insulation | Class F | Dielectrical strength | 2000VAC/1min |
| Ambient environment | Temperature | -10℃~45℃ | |
| Altitude | ＜1000m | ||
| Humidity | 20%-90% | ||
| Ventilation | Sound ventilation | ||
| Vibration | No severe vibration | ||
2. Applicaitons
The product decribed here is a three phase high power industrial voltage stabilizer. Its rated capacity is 150KVA. The input voltage range could be 304V to 456V while the output voltage is 380V (Customization is accepted). There are lots of places and areas that need this 150KVA industrial voltage stabilizer as a stable power supply.
Firstly, it can be applied in large factories and plants to be a general power supply for all the electrical appliance. Secondly, it could be used in hospitals, schools, and other places that need the product as a power supply. Thirdly, it could be used with single or several electric equipment, like generator, laser-cutting machine, air compressor, and other device etc. As long as there are unstable three phase input voltage, the voltage stabilizer could be used as a three phase voltage power supply.
3. Product Features
① High output accuracy: the output voltage accuracy is ±2% of the rated one.
② Changeble working models: manual regulation and automatic regulation could be switched according to your needs.
③ Quick response rate: one second is enough for 10% fluctuation. For great fluctuation, less than six seconds.
④ Strong load-bearing capability: its load bearing capability is relatively strong, whatever the load is.
⑤ Delicate design: both inner and outer design is pleasing.
4. Relative Product Recommended
|
Name |
Type | Power |
Input Voltage Range |
Output Voltage |
C(A) |
| Three phase voltage stabilizer (high precision) | TNS-15K | 15KVA |
380V±20% or tailored |
380V or customized |
22 |
| TNS-30K | 30KVA |
380V±20% or tailored |
380V or customized |
45 | |
| TNS-45K | 45KVA |
380V±20% or tailored |
380V or customized |
68 | |
| TNS-50K | 50KVA |
380V±20% or tailored |
380V or customized |
75 | |
| TNS-60K | 60KVA |
380V±20% or tailored |
380V or customized |
91 | |
| TNS-90K | 90KVA |
380V±20% or tailored |
380V or customized |
136 | |
| Single phase voltage stabilizer (high precision ) | TND-10K | 10KVA |
220V±20% or tailored |
220V or customized |
45 |
| TND-15K | 15KVA |
220V±20% or tailored |
220V or customized |
68 | |
| TND-20K | 20KVA |
220V±20% or tailored |
220V or customized |
90 | |
| TND-30K | 30KVA |
220V±20% or tailored |
220V or customized |
136 | |
| TND-40K | 40KVA |
220V±20% or tailored |
220V or customized |
181 | |
| TND-50K | 50KVA |
220V±20% or tailored |
220V or customized |
227 | |
| High power voltage stabilizer (Single phase) | DBW-50K | 50KVA |
220V±20% or tailored |
220V or customized |
227 |
| DBW-80K | 80KVA |
220V±20% or tailored |
220V or customized |
363 | |
| DBW-100K | 100KVA |
220V±20% or tailored |
220V or customized |
454 | |
| DBW-150K | 150KVA |
220V±20% or tailored |
220V or customized |
681 | |
| DBW-180K | 180KVA |
220V±20% or tailored |
220V or customized |
818 | |
| DBW-200K | 200KVA |
220V±20% or tailored |
220V or customized |
909 | |
| DBW-300K | 300KVA |
220V±20% or tailored |
220V or customized |
1363 |

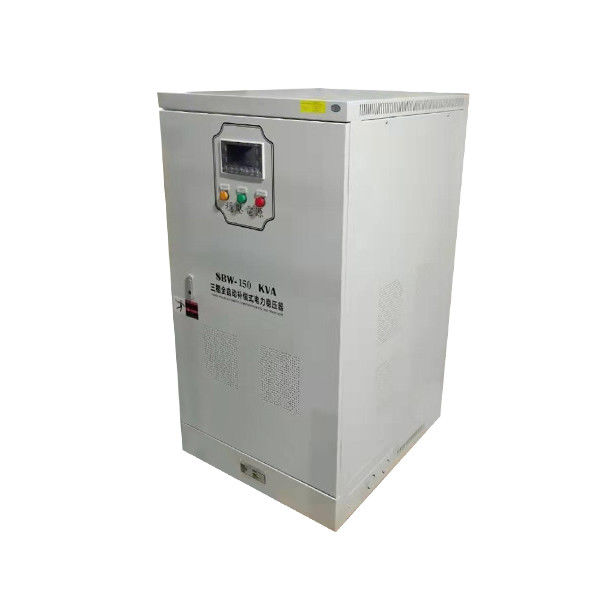

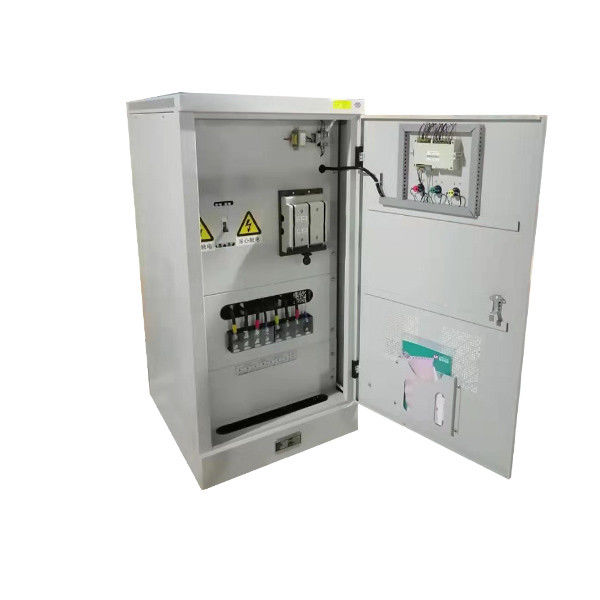

5. Product Pictures
