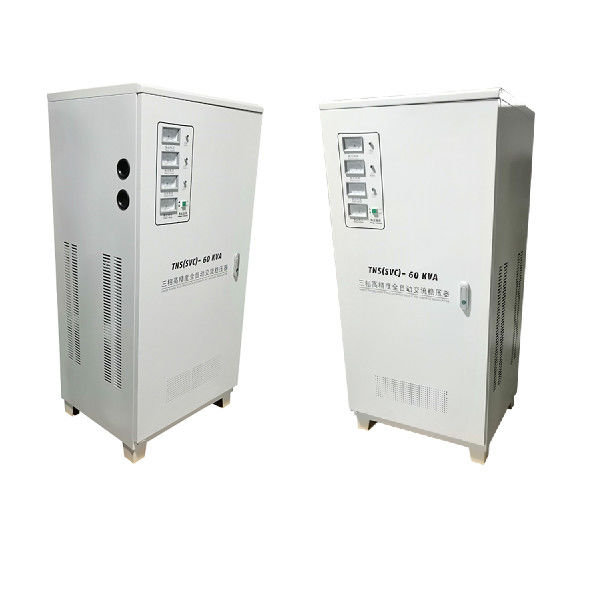

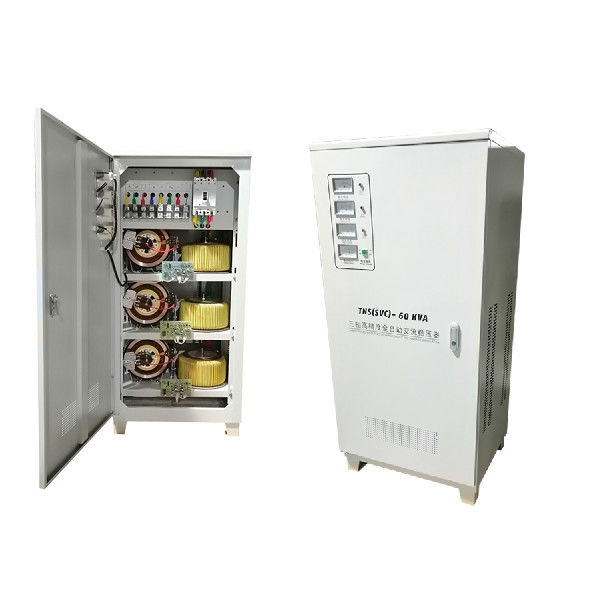

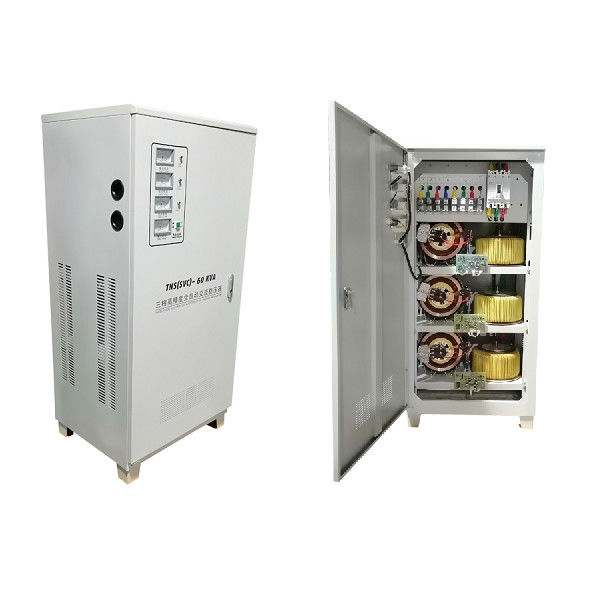

Pointer Meters Alternative AC 60KVA 3 Phase Industrial Auto High-precision Voltage Stabilizer/Regulator
Place of Origin | Shanghai, China |
---|---|
Brand Name | Ewen Power |
Certification | CE, ISO: 9001 |
Model Number | TNS(SVC)-60KVA |
Minimum Order Quantity | 1 pc |
Price | Negotiation |
Packaging Details | Standard Export Wooden Packing |
Delivery Time | 5-20 work days (according to quantity) |
Payment Terms | T/T, |
Supply Ability | 400 pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 3 Phase Automatic Voltage Regulator | Main Material | Aluminum/Copper And Iron |
---|---|---|---|
Dielectrical Strength | 2000VAC/MIN | Insulation Resistance | ≥5MΩ |
Working Frequency | 50-60Hz | Cabinet Color | RAL 7035 Or Customized |
Highlight | LCD Screen Voltage Stabilizer,3 Phase Industrial Voltage Stabilizer |
Pointer Meters Alternative AC 60KVA 3 Phase Industrial Auto High-precision Voltage Stabilizer/Regulator
1.Quick Details
Item Name | 3 Phase Industrial Voltage Regulator |
Working Efficiency | 50-60Hz |
Warranty | 12 Months |
Display | Pointer Meters Alternative |
Temperature Rise | <60℃ |
Response Time | <1 S |
Ambient Altitude | <2000 m |
Ambient Relative Humidity | 20%-90% |
Input Voltage | 380V±20% Or Tailored |
Output Voltage | 380V±2% Or Customized |
2. Main Features
Waveform distortion | There is no waveform distortion of this voltage regulator. |
Suitability for customization | Any request could be proposed. |
Strong load-bearing capability | Due to large capacity of full capacity, the voltage stabilizer has a strong load-bearing capability. |
High output voltage precision | The output voltage precision is ±2%, which ensures sound performance of the voltage regulator. |
Full protection functions | various protection functions are designed with the product, including under-voltage, over-voltage, short circuit, time dealy, over-current and etcarious protection functions are designed with the product, including under-voltage, over-voltage, short circuit, time dealy, over-current and etc. |
Fast response speed | It takes the voltage regulator less than one second to react to voltage change. |
LCD display screen | All the data would be shown on the LCD displaying screen. |
3. Product Recommended
Product name | Product model | Description |
Three phase high precision voltage stabilizer | TNS-6KVA to TNS-100KVA | High precision, full-automation, availability for industrial equipment. |
Three phase high power voltage stabilizer | SBW-30KVA to SBW-F-3000KVA | Strong load-bearing capability and long lifetime, agailability for large industrial equipment. |
Three phase contactless voltage stabilizer | ZBW-10KVA to ZBW-2000KVA | No noise, contactless, high output precision, and fast response rate. |
Three phase purifed voltage stabilizer | JSW-10KVA to JSW-100KVA | High precision, purified voltage, availability for high-precision equipment demanding accurate voltage. |
4.Product Usage Introduction
5. More Pictures
5. Services
1.We could provide sampling service for our customers if it's needed.
2.Technical support could be offered to help you select the right product.
3.OEM/ODM services is available .Your logo could be put on the products.
4.One-year warranty is provided. We could provide you with spare parts for free if there are problems with them.
5.Installation and testing services could be provided if it's needed,with service fee paid by our customers due to the long distance.
