Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO: 9001
Model Number:
TND(SVC)-2KVA
High Efficiency 2KVA Automatic Voltage Regulator Servo Motor Stabilizer
1. Product Parameters
| Item name | Single phase automatic voltage regulator (AVR) | |
| Item type | TND-2000VA/2KVA | |
| Rated power | 2KVA/2000VA | |
| Phase | Single phase | |
| Rated frequency | 50Hz-60Hz | |
| Rated input voltage range | 160VAC-250VAC or 110V±20% | |
| Rated output voltage | 220VAC/110VAC | |
| Power factor | 98% | |
| Working efficiency | 98% | |
| Working precision | ±2% | |
| Power range | 0.5KVA-50KVA | |
| Insulation class | F | |
| Working environment | Temperature requirement | -10-45℃ |
| Relative humidity request | 20%-90% | |
| Altitude requirement | <1000m | |
| Ventilation requirement | Nice ventilation condition | |
| Vibration request | No great vibration | |
| Protection functions | Over-voltage | 256V±4V |
| Under-voltage | 156V±4V | |
| Time delay | Five seconds | |
| Over-current | ＞9A | |
2. Major Competitiveness
There are many competitiveness of this single phase automatic voltage regulator/stabilizer.
① 220V/110V input terminals: you could choose one of the input voltage terminals to connect wires.
② High precision: the output accuracy is ±2%.
③ Full protection functions: over-voltage, under-voltage, over-current, over-load and time delay protections are provided.
④ Clear display of input and output voltage: the voltmeters show input and output voltage respectively to you.
⑤ Portability: there is a handle at the top of the 2KVA voltage stabilizer, which is convenient for you to handle it.
3. TND Series Automatic Voltage Regulator
There are many types of automatic voltage regulators. Below is the chart describing the single phase automatic voltage regulator:
| Model | Capacity | Input Voltage Range | Output Voltage | Note |
| TND-500VA | 0.5KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Dual output voltage could be achieved (220V/110V) |
| TND-1000VA | 1KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Dual output voltage could be achieved (220V/110V) |
| TND-2000VA | 2KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Dual output voltage could be achieved (220V/110V) |
| TND-3000VA | 3KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Dual output voltage could be achieved (220V/110V) |
| TND-5000VA | 5KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Dual output voltage could be achieved (220V/110V) |
| TND-10KVA | 10KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Dual output voltage could be achieved (220V/110V) |
| TND-15KVA | 15KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Any single output voltage (220V or 110V or 100V etc.) |
| TND-20KVA | 20KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Any single output voltage(220V or 110V or 100V etc.) |
| TND-30KVA | 30KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Any single output voltage(220V or 110V or 100V etc.) |
| TND-40KVA | 40KVA |
150-260 or 80-130V or customized |
220V/110V or customized |
Any single output voltage(220V or 110V or 100V etc.) |
| TND-50KVA | 50KVA |
150-260 or 80-130V
or customized |
220V/110V or customized |
Any single output voltage(220V or 110V or 100V etc.) |

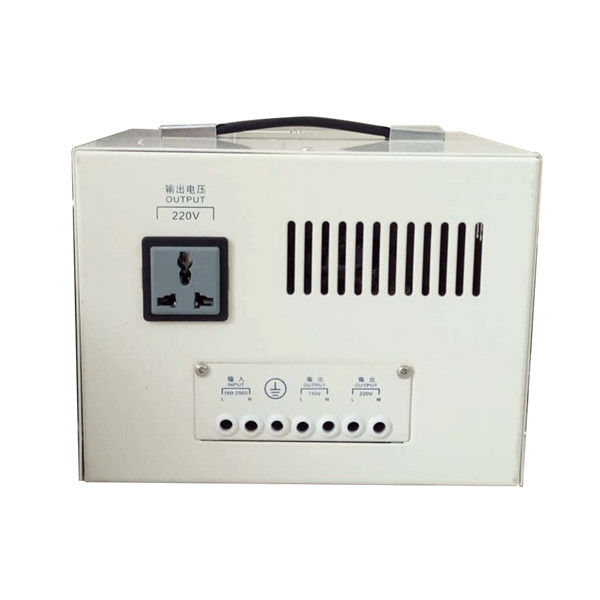

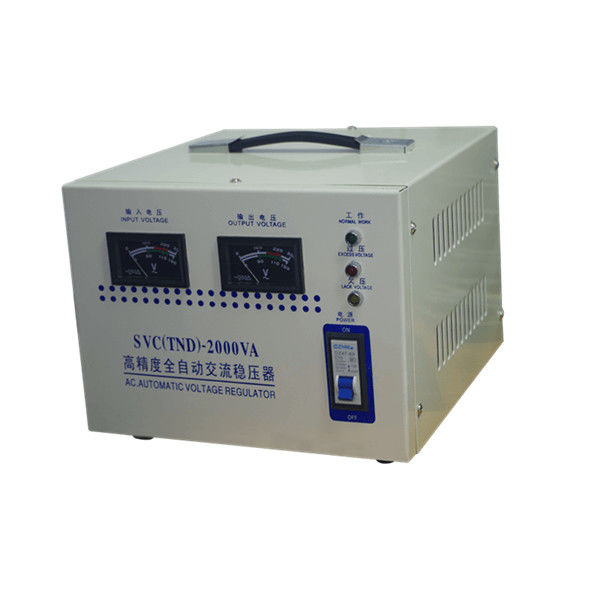

4. Appearance and Inner Structure Diagram
