1 Kva Automatic Stabilizer Avr Single Phase Stabilizer 110v 220v Small Size

1 Kva Automatic Stabilizer Avr Single Phase Stabilizer 110v 220v Small Size

automatic voltage stabiliser

voltage control stabilizer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power

Certification:

CE, ISO: 9001

Model Number:

TND(SVC)-1KVA

Contact Us
Request A Quote
Product Details
Name:
Single Phase Automatic Voltage Stabilizer
Type:
TND(SVC)-1KVA
Power:
1000VA
Input:
220V±20% Or Tailored
Output:
220V/110V±2% Or Tailored
Advantage:
Small Size
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiation
Packaging Details
Carton for Each Product
Delivery Time
According to Quantity
Payment Terms
T/T,
Supply Ability
1000 Units per Month
Product Description

1 Kva Automatic Stabilizer Avr Single Phase Stabilizer 110v 220v Small Size



1. Quick Details



Name: single phase automatic voltage stabilizer

Brand: Ewen/OEM & ODM acceptable

Place of origin: Shanghai, China

Type: TND(SVC)-1KVA/1000VA

Capacity: 1KVA/1000VA

Phase: single phase

Frequency: 50-60Hz

Input voltage: 220V±20% or 110V±20% or customized

Output voltage: 220V or 110V or  customized

Rated current: 4.5A (for 220V); 9.09A (for 110V)

Insulation: Class F

Temperature rise: less than 85℃

Dielectrical strength: 2000VAC/1MIN

Advantage: small size, portability, full protections etc.



2. Protection Functions



There are several protection functions designed with the automatic voltage regulator/stabilizer. Please get detailed information through the following chart:



Protections Functions Description
Over-voltage If the output voltage is relatively higher than the set figure, the stabilizer would power off automatically to protect the AVR itself and the load equipment. The over-voltage figure is 256V±4V.
Under-voltage

If the output voltage is much lower than the set figure, the regulator would stop working automatically. The under-voltage figure is 156V±4V.

Over-current The rated current for this single phase automatic voltage regulator is 4.5A (for 220V). If the loading current is higher than this value, the regulator would cut off the power automatically.
Over-load If the load is more than the rated capacity, the stabilizer would power off automatically.
Time delay There is five-second delay before the voltage is outputed to the latter load equipment.



3. Major Competitiveness



Competitiveness Introduction
Small dimension and light weight The size of this 1000VA single phase automatic voltage regulator is about 220*200*160mm while the weight is about 5.5kg. It's very room saving.
Dual output voltage design For 220V single phase users, you could connect wires to the 220V terminal. For 110V users, connect wires to the 110V terminal.
Copper coil The copper coil brings about high electricity inductiveness.
High voltage stabilization precision The precision is 220V±4V or 110V±2V.
Short response time For input voltage fluctuating within 15V (for 220V output voltage), it takes the regulator one second to respond. For voltage fluctuating greatly, it takes it no more than six seconds to react.
Automatic voltage stabilization The votlage regulator is full automatic. You don't have to regulate the voltage manually.



4. Product Choosing



This automatic voltage regulator is often used at home. The product introduced here is a single phase voltage stabilizer with 1000VA's rated capacity. You have to choose a regulator with proper capacity. So how do you judge the capacity of the regulator you need?



You could first consider the total load. Then purchase a automatic voltage regulator with doule or even tripple capacity. If you are not sure, please send us messages. We'd like to help you with the problem.

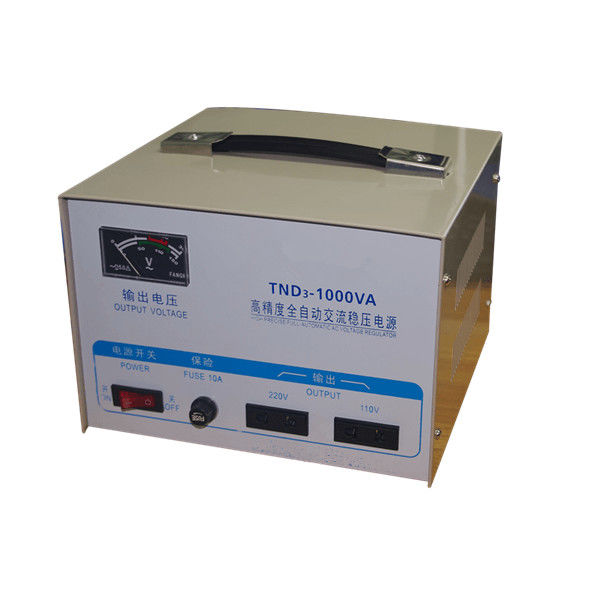

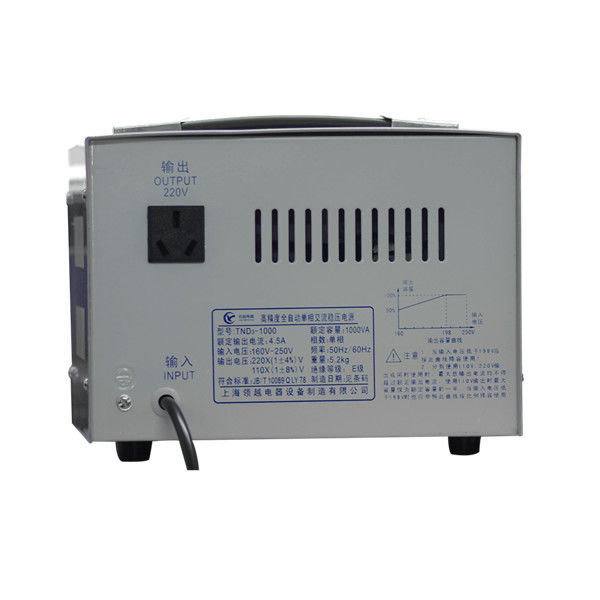

5. Product Display

1 Kva Automatic Stabilizer Avr Single Phase Stabilizer 110v 220v Small Size 0
