| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO: 9001 |
| Model Number: | TND-10KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 400 pcs per Month |
| Product Name: | AC Power Stabilizer | Rated Power: | 10KVA |
|---|---|---|---|
| Rated Voltage: | 220V | Working Frequency: | 50-60HZ |
| Certifications: | ISO, CE | Material: | Copper |
| Highlight: | ac automatic voltage regulator,ac automatic voltage stabilizer |
||
Automatic 220v Single Phase Stabilizer 10KVA 50Hz With ISO / CE Certified
1. Product Description
The product described here is a single phase AC power stabilizer. The rated power is 10KVA. The input voltage range is 160-250VAC while output voltage could be stabilized at 220VAC. The power, input votlage range, and output voltage all could be customized according to your requirements.
This 10KVA single phase AC power stabilizer could work automatically to stabilize the voltage. When the input votlage fluctuates, the stabilizer would respond within one second to regulate voltage at 220V soon. It is widely used for large-capacity home appliance like air conditioner and for electrical equipment with 220V rated single phase voltage.
2. Product Specifications
| Item name | Single phase AC Power Stabilizer | Item Model | TND-10KVA |
| Brand | Ewen/OEM/ODM | Capacity | 10KVA |
| Input | 160-250VAC or customized | Output | 220VAC or customized |
| Current | 45.5A | Frequency | 50Hz-60Hz |
| Insulation class | F | Working efficiency | 98% |
| Power factor | 98% | Temperature rise | ＜80℃ |
| Ambient environment | Relative humidity | 20%-90% | |
| Temperature | -10~45℃ | ||
| Altitude | Less than 2000m | ||
| Ventilation | Nice ventilation condition | ||
| Protection functions | Over-current | When the current is more than 45.5A | |
| Over-voltage | When the output voltage is over 240V | ||
| Under-votlage | When the output voltage is under 200V | ||
| Short circuit | When it develops a short circuit | ||
| Time delay | Five seconds delay before outputing voltage | ||
3. Major Competitiveness
| Main competitiveness | Introduction |
| Clear input and output voltage display | The input and output voltage is displayed through voltmeters, which is convenient for users to read the data directly, without measuring it through the multimeter. |
| Short reaction time | The 10KVA AC power stabilizer reacts quickly to the voltage fluctuation with just one second. |
| Stable voltage regulation performance | Its performance is very stable and reliable. |
| High output accuracy | The output votlage could be ±4V for 220V output voltage. ±2V for 110V output voltage. The accuracy is very high. |
| Portability design | There are two handles at both sides of the AC power stabilizer, to facilitates easier movement. |
| Strong load-bearing capability | The rated capacity of this voltage stabilizer is 10KVA, which has a relatively strong load-bearing capability when it is applied to voltage stabilization for home appliance. |
4. Crucial Parts
① Copper coil for voltage regulation
② Aluminum coil for compensating voltage
③ Durable 1017 Carbon brush
④ Servo motor with sound performance
⑤ Iron enclosure painted in silver-grey color
⑥ Voltmeters for displaying input and output votlage
⑦ Circuit borads for receiving and sending signals

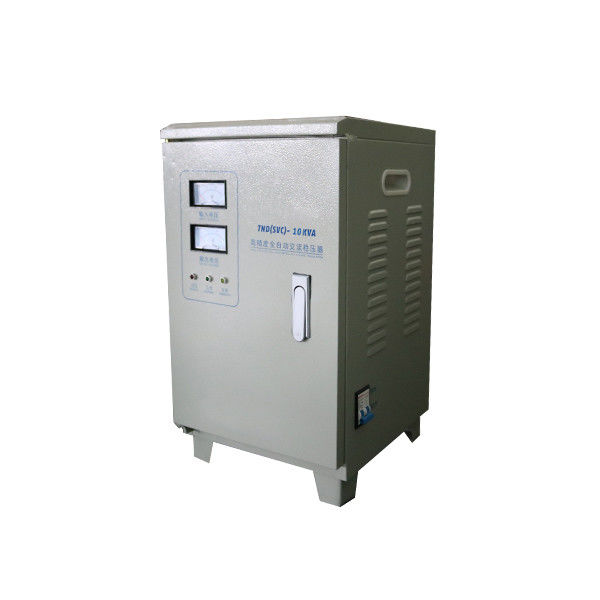

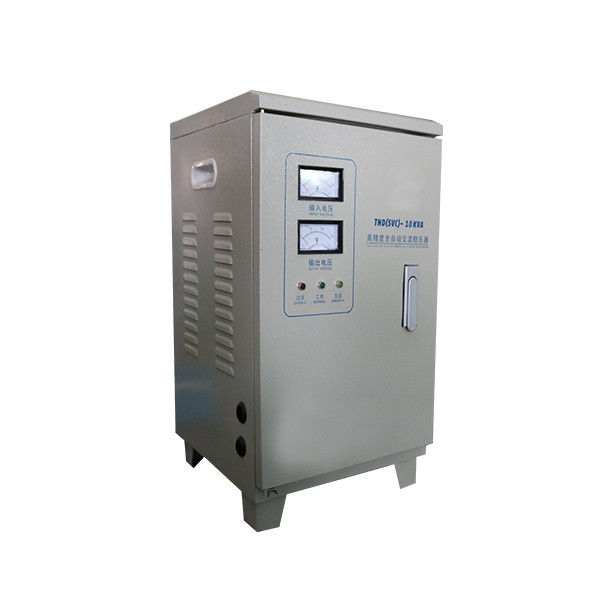

5. Product Diagram
