Portable Handle AC Power Stabilizer Single Phase 220 Voltage Regulator IP23

1 pc
MOQ
Negotiation
Price
Portable Handle AC Power Stabilizer Single Phase 220 Voltage Regulator IP23
Features Gallery Product Description Request A Quote
Features
Specifications
Name: AC Power Stabilizer
Phase: Single Phase
Model: TND-500VA/0.5KVA
Frequency: 60HZ/50HZ
Feature: Portability
Size: 19cm*16cm*13.5cm
Highlight:

ac automatic voltage regulator

,

ac automatic voltage stabilizer

Basic Infomation
Place of Origin: Shanghai, China
Brand Name: Ewen Power
Certification: CE, ISO: 9001
Model Number: TND-500VA
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: According to Quantity
Payment Terms: T/T,
Supply Ability: 1000 Units per Month
Product Description

Portable Handle AC Power Stabilizer Single Phase 220 Voltage Regulator



1. Product Parameters



Product name: single phase AC power stabilizer

Product model: TND-500VA

Rated power: 500VA

Rated frequency: 50Hz~60Hz

Power factor: 98%

Working efficiency: 98%

Input voltage: 160-250VAC

Output voltage: 220VAC

Input current: 2.27A

Output current: 2.27A

Insulation class: F

Protection class: IP23

Temperature rise: less than 80℃

Ambient temperature: -10℃~45℃

Ambient relative humidity: 20%~90%

Ambient working altitude: less than 2000 meters

Dielectrical strength: 2000V/1MIN



2. Product Selling Points



Dual output voltage design 220V and 110V output votlage terminals are desidned for you choice.
Room-saving characteristic The volume of the stabilizer is 19*16*13.5cm, which is room-saving for you to use.
High working efficiency The efficiency is 98%.
Sound voltage stabilizaition performance The AC power stabilizer could work constantly to stabilize the voltage at 220V.
High precision of output voltage The output votlage is 220V±2%.
Wide input voltage range The input votlage range is 160-250VAC. If the input voltage fluctuates within this range, the stabilizer would regulate the output voltage at 220V automatically.
Fast reaction rate The stabilizer reacts quickly to voltage change, with only one second for voltage fluctuation less than 15V.
Waveform keeping The output voltage waveform is still sine wave, which will cause no effect on the load equipment.



3. FAQ



What is the MOQ ? The minimum quantity is 1 set.
Is OEM/ODM available for you? Yes, we accept OEM/ODM. The product could be customized according to your requirements.
What about the terms of payment? T/T, L/C, and are all acceptable.
How long is the lead time? It depends on the quantity first. For quantity no more than 5 pcs, it usually takes us less than 5 days to produce. For 5 plus quantity, we need more time. Then, it's up to the requirements of the product. For normal product, it takes us less time. But for customized products, it takes us more time to prepare the raw material.
Are you a manufacturer? Yes, we are both a manufacturer and t
How long is the warranty? The warranty period is 12 months after you buy the product.
How about the shipment terms? FOB and CIF terms are available for us.


4. Our Services



① Sampling service: we could provide sample for you, with the sampling cost and freight paid by you.



② OEM/ODM servic: we could put your logo on the product and the product could be designed according to your drawing and requirements.



③ Aftersale service: 12 month's warranty is provided for you. As long as there is any problem, we would make every effort to help you with the problem.



5. Product Display

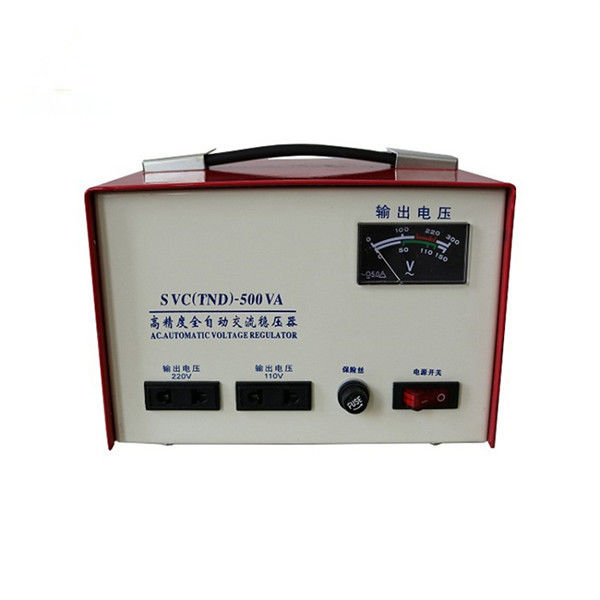

Portable Handle AC Power Stabilizer Single Phase 220 Voltage Regulator IP23 0
