Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO: 9001
Model Number:
TNS(SVC)-9KVA
Three Phase Automatic Voltage Regulator 9KVA 380V For Pumps / Generators
1. Basic Information
| Product name | Three phase automatic voltage regulator |
| Product brand | Ewen Power/OEM/ODM |
| Place of origin | Shanghai |
| Rated power | 9KVA/9000VA |
| Input voltage range | 304~456VAC |
| Output voltage | 380VAC |
| Input current | 13.67A |
| Output current | 13.67A |
| Working frequency | 50Hz/60Hz |
| Working efficiency | 98% |
2. Technical Parameters
| Insulation class | F |
| Insulation resistance | ≥2 MΩ |
| Dielectrical strength | 2000VAC/MIN |
| Load-bearing capability | Double load for thirty seconds |
| Temperature rise | ＜80℃ |
| Display | Pointer meters |
| Ambient temperature | -10~45℃ |
| Ambient humidity | 20%~90% |
| Ambient altitude | ＜2000m |
| Ventilation condition | Sound ventilation |
| Protections |
Over-voltage, under-voltage, short circuit, over-load, over-current, and etc. |
3. Product Components
| Copper coil for regulating voltage | Strong electricity inductiveness |
| Carbon brush |
1017 carbon brush is of high quality, which is very durable. |
| Servo motor | High reaction rate. |
| Air switch | Protecting the circuit |
| Copper wire | Strong electricity inductiveness |
| Enclosure | Protecting the whole parts |
| Pointer meters | Displaying voltage clearly to you |
| Other necessary parts | High quality |
4. Major Competitveness
① High output precision
② Fast reaction speed to voltage change
③ Sound and stable performance
④ Strong electricity inductiveness
⑥ Covenience for movement
⑦ No additional waveform distortion
⑧ Clear display of voltage data
5. Products Recommended
|
Product Model |
Input Voltage | Output Voltage | Size W*D*H | Weight |
|
TNS(SVC) -3KVA |
304V-456VAC |
380VAC or customization |
510*340*180 MM |
28KG |
|
TNS(SVC) -6KVA |
304V-456VAC |
380VAC or customization |
290*330*690 MM |
35KG |
|
TNS(SVC) -9KVA |
304V-456VAC |
380VAC or customization |
330*340*770 MM |
60KG |
|
TNS(SVC) -15KVA |
304V-456VAC |
380VAC or customization |
360*440*770 MM |
70KG |
|
TNS(SVC) -20KVA |
304V-456VAC |
380VAC or customization |
430*390*860 MM |
80KG |
|
TNS(SVC) -30KVA |
304V-456VAC |
380VAC or customization |
460*402*880 MM |
105KG |
|
TNS(SVC) -45KVA |
304V-456VAC |
380VAC or customization |
550*460*1200 MM |
160KG |
|
TNS(SVC) -50KVA |
304V-456VAC |
380VAC or customization |
550*460*1200 MM |
170KG |
|
TNS(SVC) -60KVA |
304V-456VAC |
380VAC or customization |
550*460*1200 MM |
180KG |
|
TNS(SVC) -75KVA |
304V-456VAC |
380VAC or customization |
620*410*1340 MM |
210KG |
|
TNS(SVC) -90KVA |
304V-456VAC |
380VAC or customization |
620*510*1340 MM |
230KG |
|
TNS(SVC) -100KVA |
304V-456VAC |
380VAC or customization |
620*510*1340 MM |
257KG |

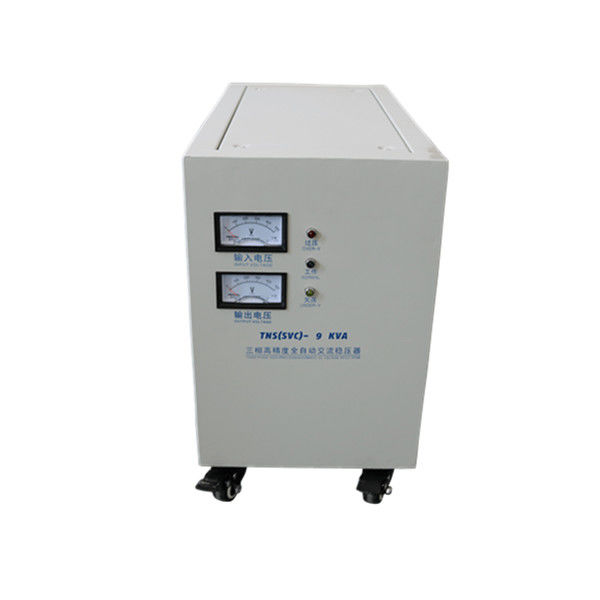

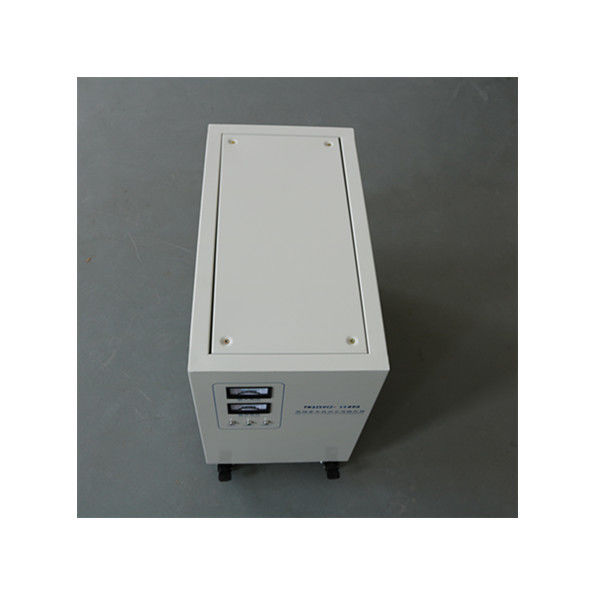

6. Product Pictures
