Send Message
Products
PRODUCTS DETAILS
Home > Products >
Single Phase Ac Voltage Regulator 3kva Voltage Stabilizer 110v 220v 50Hz 60Hz

Single Phase Ac Voltage Regulator 3kva Voltage Stabilizer 110v 220v 50Hz 60Hz

MOQ: 1 pc
Price: Negotiation
Standard Packaging: Carton
Delivery Period: According to Quantity
Payment Method: T/T,
Supply Capacity: 500 Units per Month
Detail Information
Place of Origin
Shanghai, China
Brand Name
Ewen Power
Certification
CE, ISO: 9001
Model Number
TND-3KVA
Phase:
Single Phase
Capacity:
3KVA/3000VA
Name:
AC Power Stabilizer
Frequency:
50Hz/60Hz
Input Voltage:
220V/110V±20%
Output Voltage:
220V/110V
Minimum Order Quantity:
1 pc
Price:
Negotiation
Packaging Details:
Carton
Delivery Time:
According to Quantity
Payment Terms:
T/T,
Supply Ability:
500 Units per Month
High Light:

ac automatic voltage regulator

,

ac automatic voltage stabilizer

Product Description

Single Phase Ac Voltage Regulator 3kva Voltage Stabilizer 110v 220v 50Hz 60Hz



1. Basic Information



Product name AC Power Stabilizer Product model TND-3KVA
Product brand Ewen Power Working capacity 3000VA
Input voltage range

150VAC-260VAC/

80VAC-130VAC

Rated output voltage 220V/110V or customized
Rated input current 13.7A Rated output current 13.7A
Rated frequency 50HZ/60HZ Power factor 98%
Product dimension

230mm*295mm

*250mm

Product Weight 12kg or so



2. Techincal Specifications



Insulation class F
Insulation resistance ≥2 MΩ
Ambient temperature -15~45℃
Ambient relative humidity 20%-90%
Ambient altitude <2000M
Temperature rise Less than 80℃
Dielectrical strength 2000VAC/MIN
Protections Over-voltage, over-load, under-voltage, over-current, time delay etc.
Load-bearing capability Double load for 30s
Constant working for 80% load
Two hours for full load



3. Main Features



① High voltage stabilization precision;

② Quick response speed;

③ Portability;

④ Small dimension and light weight;

⑤ No waveform distortion;

⑥ Clear display of input and output voltage;

⑦ Dual output voltage terminals;

⑧ Strong electricity inductiveness



4. TND Series AC Power Stabilizer



Model Phase Power Input voltage Output voltage
TND(SVC)-0.5KVA Single Phase 500VA

150-260VAC/

80VAC-110VAC

or tailored according

to your needs

220VAC/110VAC

or customized according

to your needs

TND(SVC)-1KVA 1000VA
TND(SVC)-1.5KVA 1500VA
TND(SVC)-2KVA 2000VA
TND(SVC)-2.5KVA 2500VA
TND(SVC)-3KVA 3000VA
TND(SVC)-5KVA 5000VA
TND(SVC)-7KVA 7000VA
TND(SVC)-10KVA 10KVA
TND(SVC)-15KVA 15KVA
TND(SVC)-20KVA 20KVA
TND(SVC)-30KVA 30KVA
TND(SVC)-40KVA 40KVA


5. FAQ



① What is the Minimum of quantity ?

One unit is acceptable.



②Is OEM/ODM acceptable?

Yes, we could put your logo on the product. The product could be customized according to your requirements.



③ What about the payment terms?

T/T, L/C, and and other payment terms etc. Besides, 30% advance payment and 70% balance payment for normal products while at least 50% advance payment and 50% balance payment for customized product.



④ How long is the lead time?

Five to twenty days normally.



⑤ What about the warranty?

We provide one-year warranty for our customers.



⑥ How about the related documents and parts?

We provide you with product mannual, certificates, warranty card, and other related documents. Besides, we would put some wearing parts in the product in case you need to change some parts of the product after you use it for a long time.

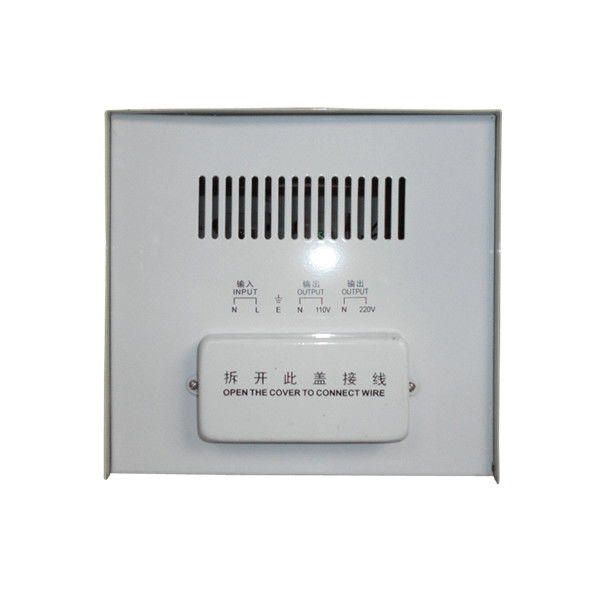

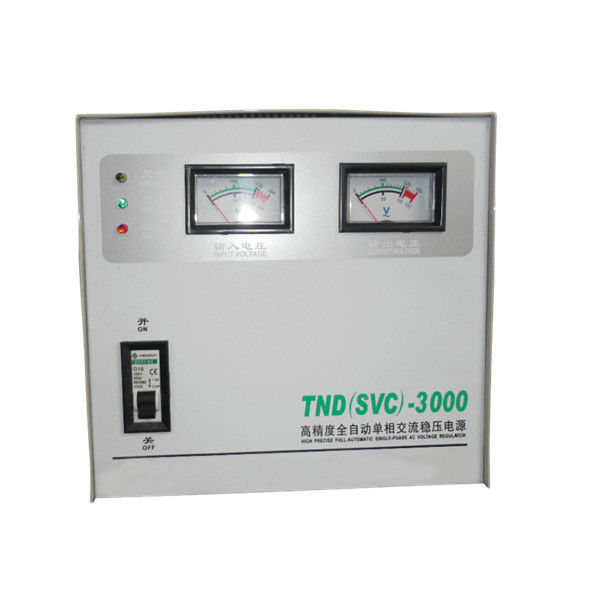

6. Product Pictures

Single Phase Ac Voltage Regulator 3kva Voltage Stabilizer 110v 220v 50Hz 60Hz 0
