5KVA Auto Voltage Regulator 220V AC Avr For Air Conditioner / Computers

5KVA Auto Voltage Regulator 220V AC Avr For Air Conditioner / Computers

automatic voltage stabiliser

automatic voltage stabilizer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power


CE, ISO: 9001

Model Number:


Contact Us
Request A Quote
Product Details
Single Phase Automatic Voltage Regulator
220V/110V±20% Or Customized
220V/110V Or Tailored
Computer/Home Appliance
Power Loss:
1% Of Rated Power
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Carton for Each Voltage Stabilizer
Delivery Time
According to Quantity
Payment Terms
Supply Ability
1000 Units per Month
Product Description

5KVA Auto Voltage Regulator 220V AC Avr For Air Conditioner / Computers


1. Product Specification


Product name Automatic voltage stabilizer Product model TND-5KVA
Product brand Ewen Power or OEM/ODM Place of origin Jiading, Shanghai, China
Current type AC Phase Single Phase
Rated capacity 5KVA/5000VA Working frequency 50Hz-60Hz
Input voltage range 220V/110V±20% or customized range Output voltage 220V/110V or customized
Rated current 22.7A for 220V output voltage; 45.5A for 110V output voltage
Power factor 98%
Protection class IP23
Output accuracy ±2%
Working efficiency 98%

copper coil for voltage regulation

Insulation class Class F
Temperature rise <85℃
Working temperature


Protection functions Under-voltage, over-voltage, over-current, over-load, time delay ect.
Enclosure Silver-grey color
Output voltage display pointer meters displaying input and output voltage
Dual output 220V/110V
Portable handle Two handles at the sides of the automatic voltage stabilizer


2. Major Selling Points


① Low power loss: it is very energy saving, which only consumes 1% of the rated power.


② Portability: two handles at the sides of this voltage regulator enables you to move it easily.


③ Multiple protections: under-voltage, over-voltage, over-load, over-current, time delay etc.


④ Strong electricity inductiveness: the copper material brings about high electricity inductiveness.


⑤ Low risk of malfunction: the parts and components are high quality, which has a low risk of malfunction.


⑥ Long service time of the product: the 5KVA automatic voltage regulator could be used for more than 10 years if it is maintained properly.


⑦ Sound voltage stabilization performance: the performance of this single phase voltage regulator is sound and stable.

3. Main Parts of the 5KVA Automatic Voltage Regulator


① Copper coil for voltage regulation: this part is a very crucial part for the stabilizer. It plays an important role in regulating the voltage.


② Carbon brush: it moves along the copper coil when the voltage changes, so as to regulate the voltage at 220V or 110V.


③ Circuit board: it is micro-computer programmed, which makes it features in high precision and fast response speed.


④ Copper wire: the copper wires connect the whole circuit, which strengthens the electrical inductiveness.


⑤ Enclosure: It protects all the parts of the stabilizer, protecting it from being damaged.


⑥ Pointer meters: the meters displays the electrical data clearly.

4. Trade Terms

MOQ One piece is the MOQ for you to buy the product.
Payment terms T/T, , L/C are all acceptable. 30% advance payment and 70% balance for normal goods, while at least 40% advance payment and 60% balance for customized goods.
Lead time 5-20 days are needed for normal orders. It depends on the quantity and the requests.
Shipping Port Shanghai port is the top priority. Certainly, other ports near Shanghai or the ports you designate are available for us.
Packing  Each 5KVA automatic voltage regulator is packaged by carton while there is a tray for all the products.

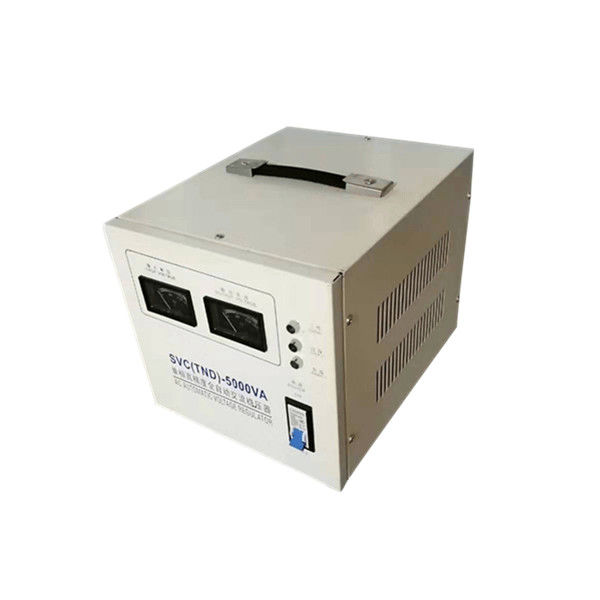

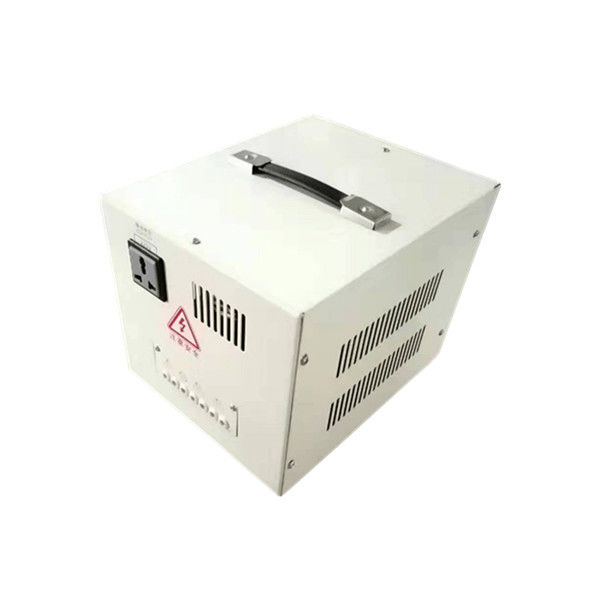

5. Product Show
5KVA Auto Voltage Regulator 220V AC Avr For Air Conditioner / Computers 0
