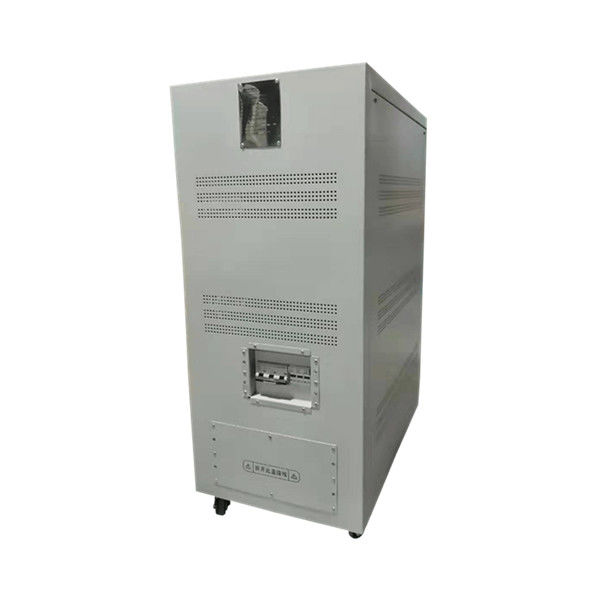

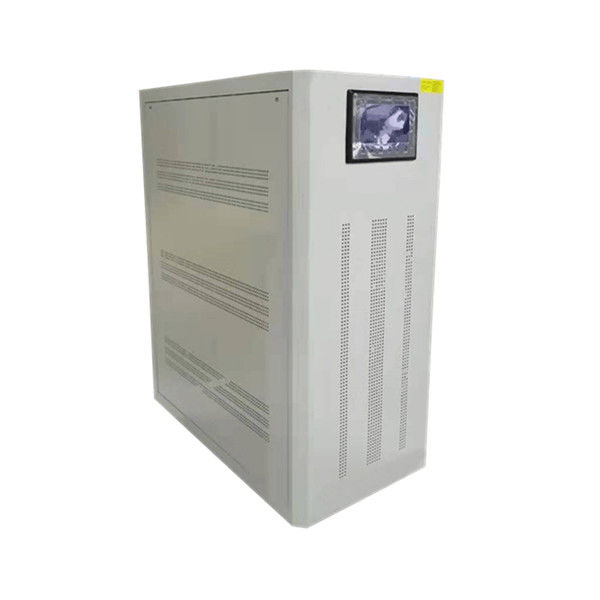

LCD Display Contactless AC Power Stabilizer 6kva 3 Phase Avr Voltage Regulator

LCD Display Contactless AC Power Stabilizer 6kva 3 Phase Avr Voltage Regulator
LCD Display Contactless AC Power Stabilizer 6kva 3 Phase Avr Voltage Regulator LCD Display Contactless AC Power Stabilizer 6kva 3 Phase Avr Voltage Regulator

Large Image :  LCD Display Contactless AC Power Stabilizer 6kva 3 Phase Avr Voltage Regulator

Product Details:
Place of Origin: Shanghai, China
Brand Name: Ewen Power
Certification: CE, ISO:9001
Model Number: ZPW-60KVA
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: According to Quantity
Payment Terms: T/T,
Supply Ability: 300 pcs per Month

LCD Display Contactless AC Power Stabilizer 6kva 3 Phase Avr Voltage Regulator

Description
Name: Contactless AC Power Stabilizer Phase: 3 Phase
Power: 60KVA Display: LCD
Frequency: 50Hz-60Hz Response Time: 30ms
Highlight:

ac automatic voltage stabilizer

,

adjustable ac voltage regulator

LCD Display Contactless AC Power Stabilizer 6kva 3 Phase Avr Voltage Regulator



1. Product Profile



The product introduced here is a contactless AC power stabilizer, with rated capacity of 60KVA. It's a three phase no-noise sillicon-controlled voltage stabilizer. The input voltage of this AC power stabilizer is 380V±20% while the output voltage is 380V±2%. Both the input and output could be customized.



This contactless AC power stabilizer features in no noise, fast reaction rate, high output precision, and strong load capability etc. It's often used with high-precision machines and device, which demand accurate output voltage to ensure the normal work of the electrical system.



2. Product Specifications



Product Model ZPW-60KVA
Rated Capacity 60KVA (10KVA, 20KVA, 30KVA,40KVA, 50KVA, 80KVA, 100KVA, 150KVA, 200KVA or larger could be customized)
Rated Input 3 Phase 380VAC (A B C + N)
Input Voltage Range 380V±20%
Rated Frequency 50Hz-60Hz
Rated Output Voltage 3 Phase 380VAC (a b c + N+ PE)
Output Precision ±2%
Power Factor 98%
Efficiency 98%
Response Time <30ms
Output Delay 5s
Waveform Distortion No additional waveform distortion



3. Product Protection Functions



① Under-voltage protection: when output voltage is 15% less than rated one, the stabilizer would power off automatically.

② Over-voltage protection: when output voltage is 10% more than rated one, the stabilizer would power off automatically.

③ Over load protection: when the working load is over the rated load, the stabilizer would stop working automatically.

④ Over-current protection: when output current is over the rated current, stabilizer would cut off the power automatically.

⑤ Short Circuit protection: when the load equipment is in a short circuit, the stabilizer would power off automatically to ensure the tacity of the stabilizer and the load equipment.



4. LCD Display



The displaying system is LCD display screen. It shows input voltage, output voltage, output current, working mode etc. You could see the description from the chart below:



Input Voltage Real-time display of the voltage of electrical power supply
Output Voltage Real-time dispaly of the output voltage of stabilizer
Output Current Real-time display of the output current of stabilizer
Working Mode Voltage Stabilization, bypass, over-voltage, under-voltage etc.





5. Main Components and Functions



Isolation transformers Nine isolation transformers play a significant role in compensating voltage automatically.
Circuit borads Advanced integrated circuits facilitate fast signal transmission and high precision.
Silicon-controlled modules Regulating the voltage with no noise.
AC Contactor Over-load or over-current function.
Painted iron enclosure Protecting the whole parts of this voltage stabilizer.



6. Detail Show

LCD Display Contactless AC Power Stabilizer 6kva 3 Phase Avr Voltage Regulator 0
