High Precision 3 Phase Ac Voltage Stabilizer Automatic Voltage Regulator 10kva

High Precision 3 Phase Ac Voltage Stabilizer Automatic Voltage Regulator 10kva

ac automatic voltage regulator

ac automatic voltage stabilizer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power

Certification:

CE, ISO: 9001

Model Number:

JSW-10KVA

Contact Us
Request A Quote
Product Details
Rated Cpacity:
30KVA
Rated Frequency:
50Hz/60Hz
Phase:
Three Phase
Name:
AC Power Stabilizer
Feature:
High Precision
Voltage:
380V 400V 420V 440V Etc.
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiation
Packaging Details
Standard Export Wooden Case
Delivery Time
Negotiation
Payment Terms
T/T,
Supply Ability
300 pcs per Month
Product Description

High Precision 3 Phase Ac Voltage Stabilizer Automatic Voltage Regulator 10kva



1. Quick Details



Product Name AC power stabilizer
Item Model JSW-10KVA
Phase Three phase
Product Brand Ewen (Shanghai) Electrical Equipment Co., Ltd./OEM/ODM
Rated Capacity 10KVA/10000VA
Input Voltage Range 380AC±20% (304AC~456AC) or customized voltage
Output 380VAC 400VAC 420VAC 440VAC or customized voltage
Input Current 15.19A (With 380V output votlage)
Output Current 15.19A (With 380V output votlage)
Temperature Rise <80℃
Response Speed < 30ms
Noise <60dB
Output Precision ±1%
Waveform Distortion No addtional waveform distortion
Working Temperature -10℃~45℃
Ambient Altitude <2000m
Relative Humidity 20%~90%
Insulation Class F
Dielectrical Strength 2000VAC/MIN
Display LCD Meters



2. Product Features



Features Description
Strong load bearing capability The load bearing capability of this AC power stabilizer is very strong.
No noise Due to the non-contactless sillicon controlled module, it is of no noise.
Automatic voltage regulation It regulates voltage automatically.
Strong anti-interference capability It has a characteristic of anti-interference.
Energy-saving characteristic The power loss is only 1% of the rated capacity.
Quick response time The reaction time is less than 1 second.
High working efficiency The working efficiency of the voltage stabilizer is up to 98%.
High output precision The output voltage could be ±1% of the rated one.



3. Case Sharing



The JSW Series AC power stabilizer is widely used in industrial areas. It's often used with high-precision electrical device. Many successful cases have been achieved with regard to this JSW-10KVA voltage stabilizer. Here is a classic case:



A buyer from Hangzhou City, Zhejiang Province, China found us through our official Chinese website. He was looking for an AC power stabilizer with high output precision because his equipment needs very precise voltage supply. After half-a-month's communication, he finally purchased from us five JSW-10KVA AC power stabilizer.



If you have the same idea to find a product with high precision and strong anti-interference.



4. After-sale Service



We provide comprehensive after-sale service, which includes one-year warranty, maintenence support, remote guide etc. If there is any problem with regard to the voltage stabilizer, we would make every endeavor to help you with the problem through phone calling or vedio calling.



We would follow the condition of the product you buy from us and tell you the things you need to pay attention to when you use the product.



5. Product Picture

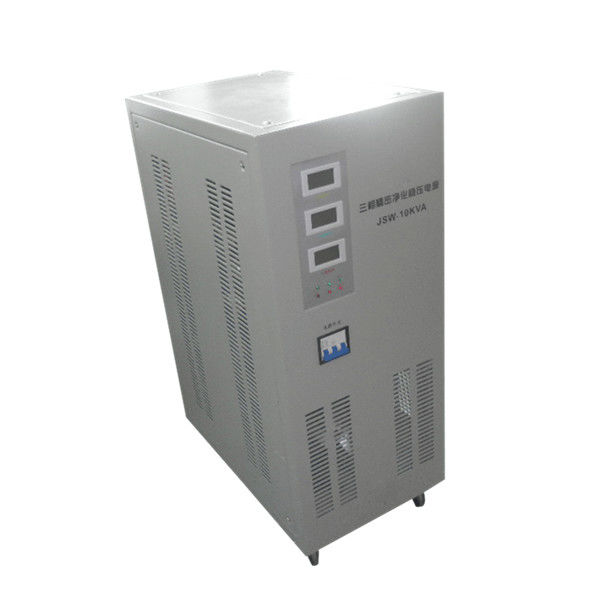

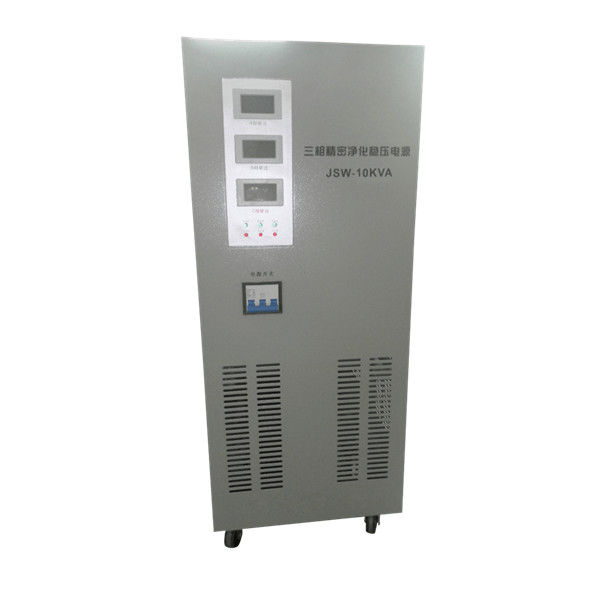

High Precision 3 Phase Ac Voltage Stabilizer Automatic Voltage Regulator 10kva 0
