3 Phase Voltage Stabilizer 380VAC 150KVA , High Power Voltage Regulator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItem Name | Automatic Voltage Regulator | Rated Power | 150KVA |
---|---|---|---|
Capacity | High Power | Voltage | 380VAC |
Phase | Three Phase | Temperature | -10℃~45℃ |
Highlight | automatic voltage stabiliser,voltage control stabilizer |
3 Phase Voltage Stabilizer 380VAC 150KVA , High Power Voltage Regulator
1. Product Specification
Item name: Automatic voltage regulator
Phase: Three phase
Model: SBW-150KVA
Capacity: 150KVA
Frequency: 50HZ-60HZ
Feature: Large capacity
Input voltage range: 304VAC-456VAC or customized
Output votlage: 380VAC or customized
Input current: 227.91A
Output current: 227.91A
Insulation class: F
Dielectrical strength: 2000VAC/MIN
Temperature rise: <80℃
Ventilation condition: sound ventilation required
If you have any question, please send us messages.
2. Product Introduction
The product decribed here is a three phase automatic voltage regulator. With rated power of 150KVA, it is an ideal power supply for many electrical equipment. The input voltage of this stabilizer could be 304VAC to 456VAC while the output voltage could be 380V. Both the input range and the output could be customized according to special needs.
It could be used in many ocassions. It could be used in factories and workshop as a power supply, Also, it could be used in places like schools, hospitals or other places that need stable voltage supply. Then, it could be applied with electrical equipment, including generator, pump, air compressor, and etc.
The function of this voltage stabilizer is to regulate voltage automatically and to provide a stable voltage supply all the time.
3. Product Features
① High output precision
② Changeble working models
③ Quick response speed
④ Strong load-bearing capability
⑤ Delicate design
⑥ Suitability for various loads
⑦ Stable performance
⑧ Automatic voltage regulation
4. Relative Product Recommended
Product Name | Capacity |
Input Voltage Range |
Output Voltage |
Rated Current |
Three phase automatic voltage regulator (high precision) |
15KVA |
380V±20% or customized |
380V or customized |
22A |
30KVA | 45A | |||
45KVA | 68A | |||
50KVA | 75A | |||
60KVA | 91A | |||
90KVA | 136A | |||
Three phase automatic voltage regulator (high power) |
50KVA |
380V±20% or customized |
380V or customized |
75A |
80KVA | 121A | |||
100KVA | 151A | |||
120KVA | 182A | |||
200KVA | 303A | |||
250KVA | 379A | |||
300KVA | 455A | |||
350KVA | 531A | |||
400KVA | 607A | |||
500KVA | 759A | |||
600KVA | 911A | |||
800KVA | 1215A | |||
1000KVA | 1519A | |||
Single phase voltage stabilizer (high precision ) |
10KVA |
220V±20% or customized |
220V or customized |
45A |
15KVA | 68A | |||
20KVA | 90A | |||
30KVA | 136A | |||
40KVA | 181A | |||
50KVA | 227A | |||
High power automatic voltage regulator (Single phase) |
50KVA |
220V±20% or customized |
220V or customized |
227A |
80KVA | 363A | |||
100KVA | 454A | |||
150KVA | 681A | |||
180KVA | 818A | |||
200KVA | 909A | |||
300KVA | 1363A |

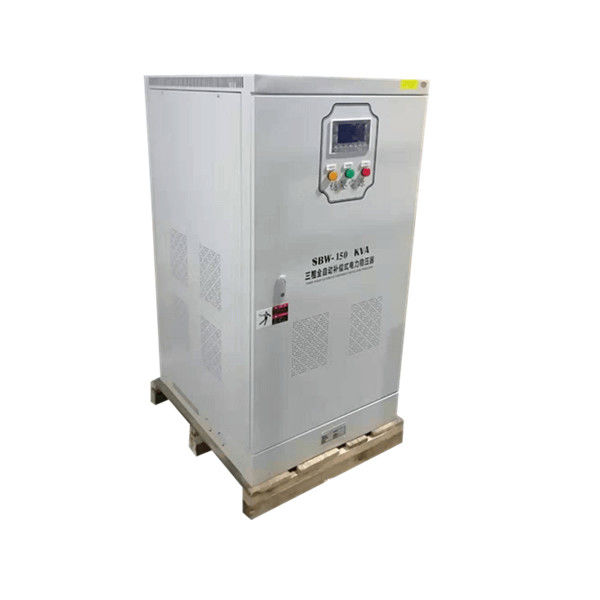

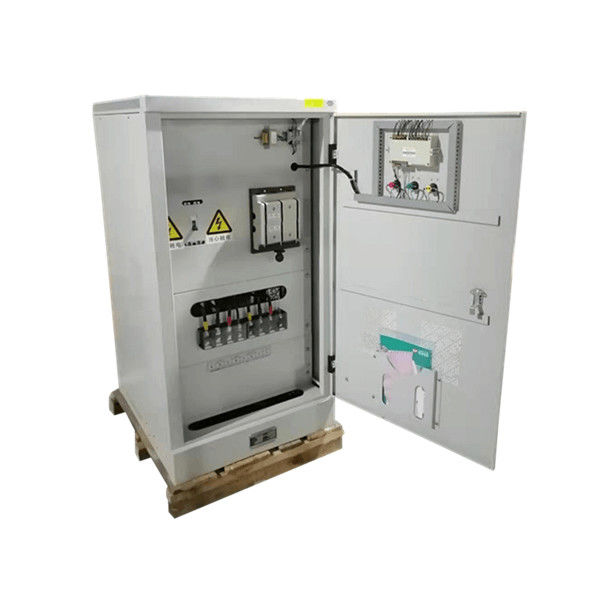

5. Product Pictures
