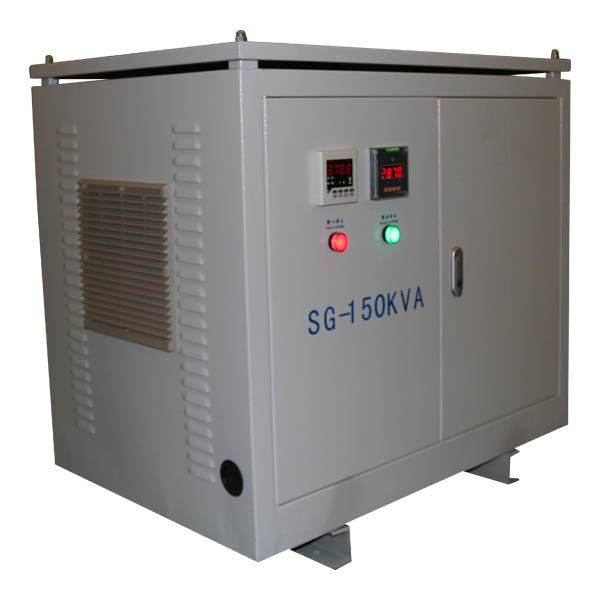

150 Kva Dry Type Transformer 380V 220V With Enclosure Isolation Function 50Hz 60Hz

  • 150 Kva Dry Type Transformer 380V 220V With Enclosure Isolation Function 50Hz 60Hz
  • 150 Kva Dry Type Transformer 380V 220V With Enclosure Isolation Function 50Hz 60Hz
Place of Origin Shanghai, China
Brand Name Ewen Power/OEM/ODM
Certification CE, ISO:9001
Model Number SG-150KVA
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Standard Export Packaging
Delivery Time 5-20 days
Payment Terms T/T,
Supply Ability 300 pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Dry Type Isolation Transformer Frequency 50Hz/60Hz
Power 150KVA Wire Material Copper
Input 380VAC Output 220VAC
Highlight

three phase dry type transformer

,

3 phase dry type transformer
Leave a Message
Product Description

150 Kva Dry Type Transformer 380V 220V With Enclosure Isolation Function 50Hz 60Hz



1.  Quick Details



Item: Dry type isolation transformer

Type: SG-150KVA

Brand: Ewen/OE,/ODM

Capacity: 150KVA

Phase: 3 Phase

Input Voltage: 380vac or customized

Output Voltage: 220vac or customized

Working frequency: 50Hz/60Hz

Working Efficiency: 98%

Output precision: ±2%

Wave Distortion: No additional waveform distortion

Insulation Class: Insulation Class

Insulation Resistance: ≥2 MΩ

Cooling Way: Air cooling

Ambient Temperature: -10~50℃

Ambient Relative Humidity: 20%~90%

Ambient Working Altitude: ＜3000m

Ventilation Condition: Sound ventilation required

Dielectrical Strength: 3000vac/min

Service life: more than 20 years under proper maintenance

Warranty: 12 months



These parameters are the basic information of this three phase 150KVA dry type isolation transformer. If your situation is different from the parameters mentioned above, please tell us so that we could recommend you a right product with sound performance.



2. Product Features



New raw metrial The core, silicon steel sheet, wire and other essential parts are made of brand new material, of which the quality is reliable.
Full capacity (100% power) The rated power of this transformer is 150KVA, which is full capacity.
Very low core loss The core of this large transformer is made of new material, which reduces the power loss greatly.
Static working condition The transformer works without noise.
Clear wiring indication The wiring indication is shown clearly in wiring board, according to which you could connect the wires.
Digital display of primary and secondary voltage There are two digital LCD displaying meters showing input and output voltage respectively.
Dust-resistant enclosure The enclosure is of IP23 protection class, which effectively protects the main body of the transformer.
Strong electrictity conductivity The windings of this transformer is made of copper, which strengthens the electricity conductivity.
Customization availability The rated capacity, input voltage, output voltage, enlosure, or other related parameters all could be customized according to your requirements. If you have any special request, you could put forward it.
Delicate design The exterior design and interior design is very delicate and user-friendly.



3. Usage and Maintenance



① Check the package first when you receive the product.



② Then disassemble the package and get the transformer out.



③ Check if the transformer is up to standard or not.



④ Cut off your power supply and then open the cabinet lock of the transformer.



⑤ Connect the wires according to wiring indication.



⑥ Check if the wiring is correct and then turn on the power.



⑦ After you use it for a period of time, dedust regularly and check the main body and parts of the transformer.



4. Produtc Show

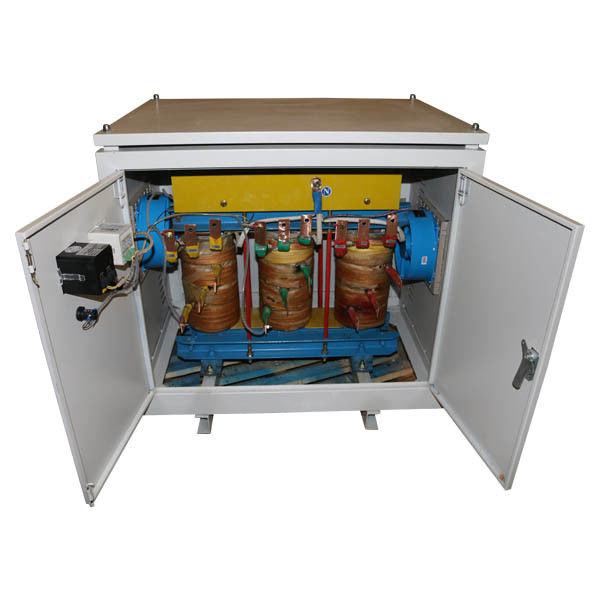

150 Kva Dry Type Transformer 380V 220V With Enclosure Isolation Function 50Hz 60Hz 0
