50Hz 240 Volt Ac To 12 Volt Dc Converter Universal Power Supply Energy Saving

50Hz 240 Volt Ac To 12 Volt Dc Converter Universal Power Supply Energy Saving

smps power supply

universal switching power supply

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power


CE, ISO:9001

Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
AC DC Switching Power Supply
Product Model:
Rated Capacity:
Output Voltage:
12V DC (could Be Customized)
Output Current:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
3 pc
Packaging Details
Delivery Time
According to Quantity
Payment Terms
Supply Ability
1500 pcs per Month
Product Description

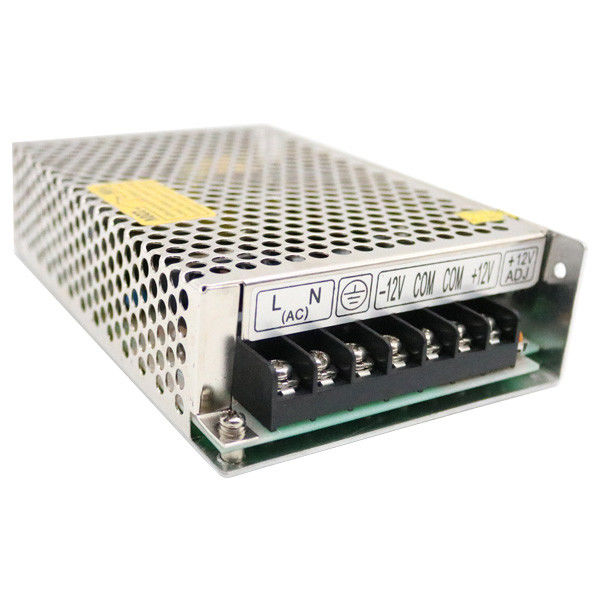

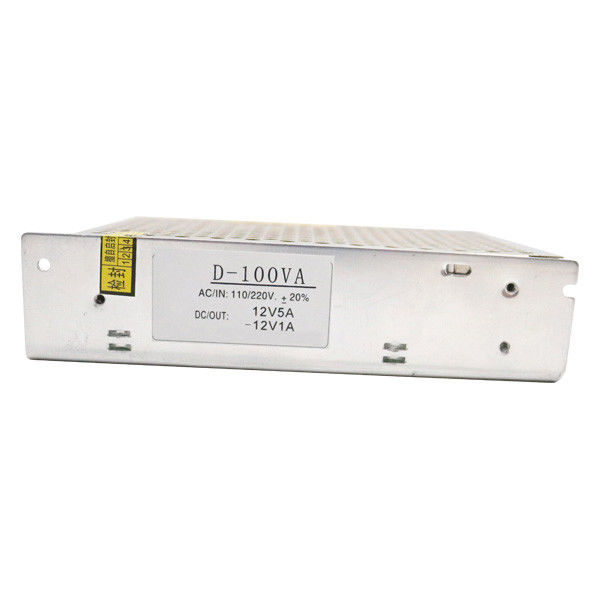

50Hz 240 Volt Ac To 12 Volt Dc Converter Universal Power Supply Energy Saving


1. Product Introduction


AC DC switching power supply is a light electronic equipment switching alternative current into direct current. This AC DC switching power supply's rated capacity is 100W, with input voltage 220VAC and output voltage 12VDC. The rated capacity, input voltage, and output voltage all could be customized according to your needs.


The rated capacity of this series product ranges from 50W to 3000W. The output voltage could be 12VDC, 24VDC, 36VDC, 48VDC, 110VDC etc.


2. Product Features


① Low power loss: the working efficiency is up to 98%, which brings about low power loss.


② Long lifetime: the capacitor of this product has a lifetime of 4 times of normal capacitors. So the AC DC switching power supply could work for more than 600,000 hours normally.


③ Energy-saving characteristic:  the maximum working efficiency is 98%, which facilitates low power loss.


④ High voltage resistance: 3000VAC/min.


⑤ High surging resistance: 300VAC surging resistance. This series of product could undergo 300VAC for 5 seconds.


⑥ Small size and light weight: the size is very tiny and the weight is light, facilitating easier installation and maintenance.


⑦ Wide applications: plating, CCTV camera, LEDs, electronic product, SMPS, and etc.


3. Product Parameters


Product name AC DC switching power supply Product brand Ewen Power/OEM/ODM
Product model LS-100-12 Rated capacity 100W
Working frequency 50Hz-60Hz Working efficiency 98%
Input voltage 180VAC-264VAC Output voltage 12VDC
Output voltage 12VDC Output precision ±2%
Input current 0.45A Output current 8.3A
Dielectrical strength 3000vac/min Insulation class F
Ambient working temperature -10~55℃ Ambient working humidity 20%~90%
Ambient working altitude <3000m Ambient storage temperature -20~85℃
Ambient storage humidity 10%~90% Ambient storage altitude <5000m
Protection functions Over-voltage, over-temperature, over-current, over-load, short circuit etc.


4. FAQ


Q1: How long is the warranty?

A1: One year since the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period.

Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a little bit big.


Q3: Is OEM/ODM acceptable?
A3: Yes, it is. Our products can be customized according to your needs. We have special design staff responsible for customized products.


Q4: What is the MOQ?
A4: For the small capacity products of default configuration, it is 3 sets.


Q5: What kind of certificates do you have?
A5: CE and ISO9001.


Q6: What is the Terms of Payment?
A6: L/C, T/T, and .
