Voltage Regulation 50KVA LCD 3 Phase Stabilizer

Voltage Regulation 50KVA LCD 3 Phase Stabilizer

50KVA 3 Phase Stabilizer

LCD 3 Phase Stabilizer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power/OEM/ODM


CE, ISO:9001

Model Number:


Contact Us
Request A Quote
Product Details
Item Name:
Automatic Voltage Regulator
Item Model:
3 Phase
Cabinet Color:
RAL 7035
Insulation Class:
Class F
Working Frequency:
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Standard Export Wooden Case
Delivery Time
According to Quantity
Payment Terms
Supply Ability
400 pcs per Month
Product Description




Automatic Voltage Regulator 3 Phase Stabilizer with Intelligent LCD Displaying Screen



1. Product Specifications



Item Automatic Voltage Regulator
Type SBW-50KVA


Capacity 50KVA
Frequency 50Hz-60Hz
Efficiency 80%-90%
Input voltage


Output voltage 380VAC 3P
Output precision ±2%
Regulation way Auto regulation
Input current 75A
Output current 75A

Insulation class

Di-electrical strength 2000vac/min
Size 550*750*1250mm
Weight 245kg for reference
Ambient temperature -10~50℃
Ambient altitude <2000 meters
Ambient humidity 20%~90%


If you have further question, please feel free to contact us. We would respond within 24 hours.

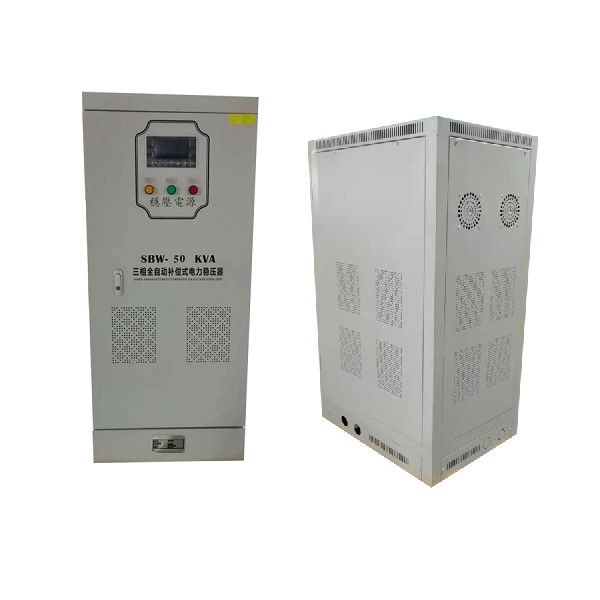

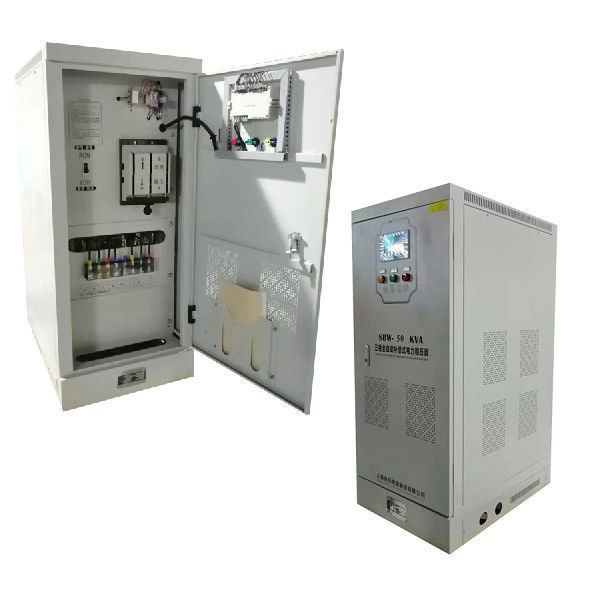

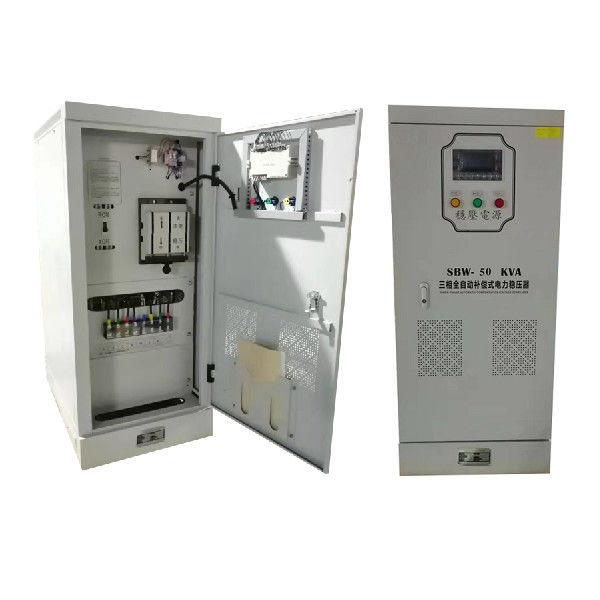

2. Product Show


Voltage Regulation 50KVA LCD 3 Phase Stabilizer 0


Voltage Regulation 50KVA LCD 3 Phase Stabilizer 1





3. Product Advantages


There are many advantages of this SBW-50KVA automatic voltage regulator.


First, it has relatively large capacity compared with small capacity voltage stabilizer.


Second, it reacts quickly to voltage fluctuation, normally one second to two second, depending on the voltage fluctuation degree.


Third, it helps providing a stable voltage supply for you continuously.


Fourth, its output voltage precision is very high. The figure is ±2% of the rated one.



Fifth, it is composed of durable components, including copper column for voltage regulation and copper transformer for voltage compensation.


Sixth, it is easy for customers to install and maintain the product. It’s very user-friendly.



4. Relevant Products


There are similar products which are worthwhile to be recommended:


Three phase high precision voltage stabilizer/regulator: TNS (SVC)-50KVA;


Three phase purified voltage stabilizer/regulator: JSW-50KVA;


Three phase no-contact voltage stabilizer/regulator: ZBW-50KVA;



5. FAQs



Q: How long is the lead time?


A: It's normally five to ten days. Certainly it depends on the quantity and product requirements. If the quantity is not that large, 10 days or so. If it’s normal products, it takes us less than 10 days to produce it. For large quantity and customized products, it needs 20 to 30 days.


Q: How do you control the product quality?


A: From material coming to product manufacturing, we have professional staff who are responsible for quality inspection. Only the product is up to standard, can we ship it to our customers.



Q: What is the payment terms?


A: FOB/CIF/CFR, normally with 30% deposit for normal products and at least 50% advance payment for tailored products and all balance paid before shipment.
