Place of Origin:
Shanghai, China
Brand Name:
Ewen Power/OEM/ODM
Certification:
CE, ISO:9001
Model Number:
TNS(SVC)-45KVA
AVR Automatic Voltage Regulator 45KVA with Digital Display System for Industrial Device
1. Product Parameters
| Product name | Automatic Voltage Regulator |
| Product model | TNS(SVC)-45KVA |
| Rated power | 45KVA/45KW |
| Phase | Three Phase |
| Rated frequency | 50Hz-60Hz |
| Rated input voltage | 380VAC±20% or customized |
| Rated output voltage | 380VAC or customized |
| Input current | 68A |
| Output current | 68A |
| Output precision | ±2% |
| Insulation class | F |
| Protection class | IP 20 |
| Di-electrical strength | 2500VAC/MIN |
| Working noise | ＜70db |
| Ambient working temperature | -10~45℃ |
| Ambient working altitude | ＜2000m |
| Ambient relative humidity | 20%-90% |
| Weight | 150kg |
| Protection functions | over-current, over-load, over-voltage, under-voltage, short circuit, phase failure etc. |
| Warranty | One year |
| Technical support | Yes |
2. Product Advantages
Brand-new material: all the parts are made of brand new material.
High precision: the output voltage precision is ±2%, which ensures sound performance of the load equipment.
New design: this 45KVA automatic voltage stabilizer/regulator is the latest one with new enclosure design,LCD display screen and new wiring design.
Fast response: this voltage stabilizer reacts fast to voltage change, within one to two seconds normally.
Strong load-bearing capability: with 45KVA rated capacity, it has a large load bearing capability, which could satisfy your needs of industrial use.
Easy installation, application and maintenance: A B C N and a b c PE to be connected before turn on the product. It's easy for you to use the product.

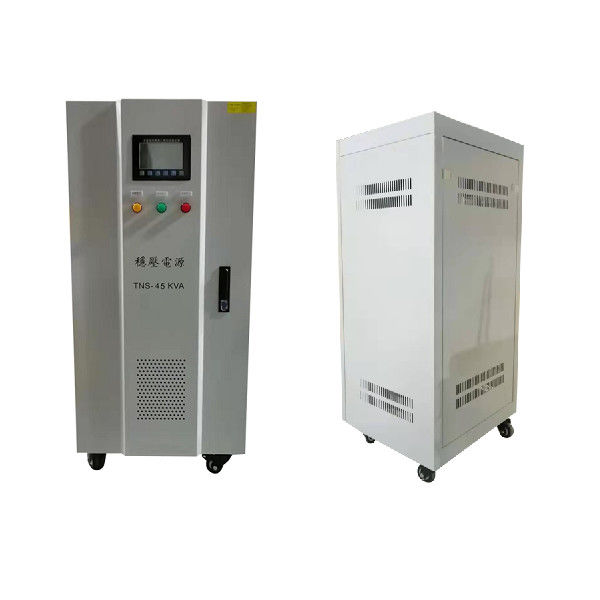

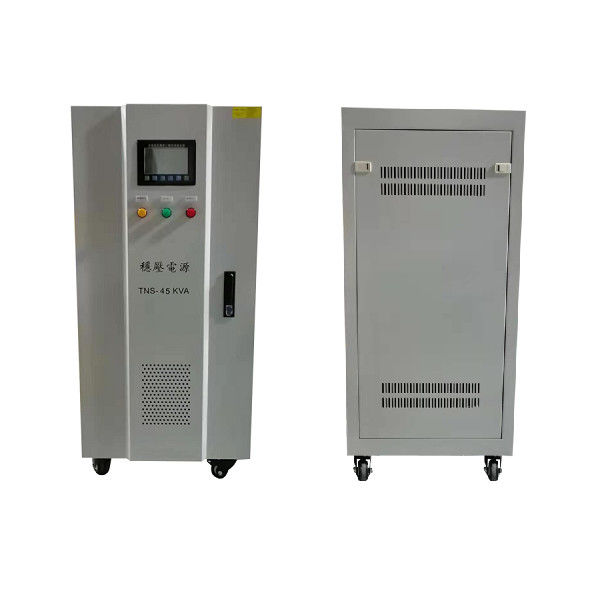

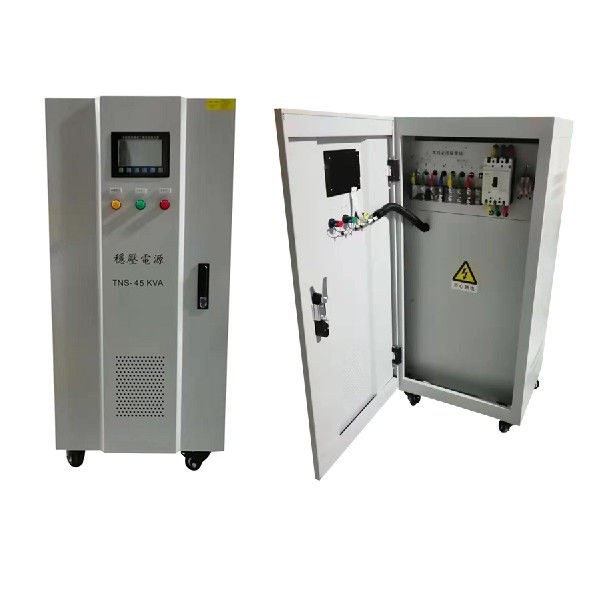

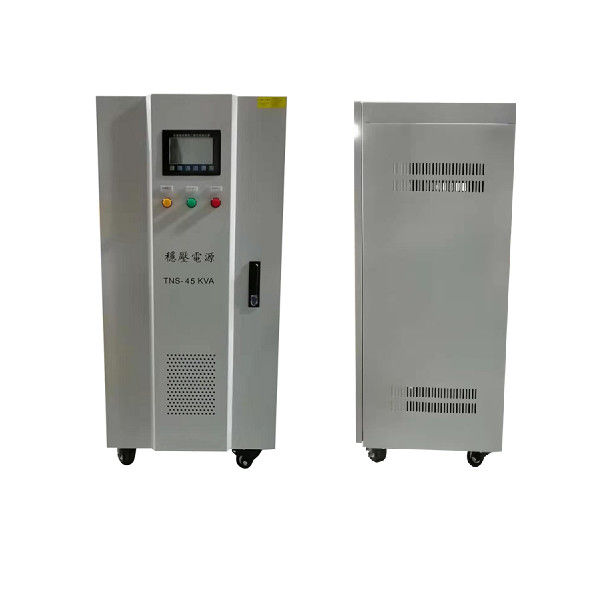

3. Product Display
4. Tests Before Shipment
Quality control and inspection is very important for manufacturing company. Our products would be inspected before shipment.
These following items would be examed carefully before delivery:
Product appearance
Product performance: including input voltage range, output voltage, LCD data display, load test, no-load test, insulation resistance test etc.
Related lables and instructions: all the lables and indications should be put at right places.
Product package: the package should be strong and tough enough to fit in long distance transportation.
5. Our Services
OEM/ODM services
Sampling services
Technical support services
Aftersale services
etc.
6. FAQs
How long is the delivery time?
It depends on the quantity of the product.
What certificates have you obtained?
CE and ISO:9001. We are trying to get more certificates.
How do you ensure product quality?
Every product would be tested before shipment to ensure sound performance of the product.
