High Efficiency AC DC Switching Power Supply Module 220VAC To 36VDC 20A

High Efficiency AC DC Switching Power Supply Module 220VAC To 36VDC 20A

smps power supply

universal switching power supply

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power


CE, ISO:9001

Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
AC DC Switching Power Supply
Product Model:
Rated Capacity:
Rated Frequency:
Input Voltage:
170-264V AC (could Be Customized)
Output Voltage:
36V DC (could Be Customized)
Output Current:
Output Type:
Payment & Shipping Terms
Minimum Order Quantity
3 pc
Packaging Details
Delivery Time
According to Quantity
Payment Terms
Supply Ability
1500 pcs per Month
Product Description

High Efficiency AC DC Switching Power Supply Module 220VAC To 36VDC 20A


1. Product Introduction


AC DC switching power supply is a light electronic equipment switching alternative current into direct current. It is widely used in different areas like industrial automation control, research and development appliance, LED lighting, communication equipment, electrical equipment, medical device, security and protection monitoring, digital products etc.


The input voltage could be 170VAC to 264VAC while the output could be 36VDC. Certainly, the input and output voltage could be tailored according to your requirements. The rated capacity of this AC DC switching power supply is 720W. If you want a different capacity product, it could be achieved.


2. Product Feature


① Low no-load loss: 0.2w-0.75w. Its no-load loss is very low, which meets the requirements of energy-saving.


② Long lifetime of capacitor: 4 times of normal capacitors. The power supply could be used for ten years or so even when it is applied to use under the circumstance of working constantly with full-load.


③ High efficiency of electric energy conversion: 88%-90% electric energy conversion, which generates only little heat loss.


④ High voltage resistance: 1500VAC, which could provide safety insurance for your product.


⑤ High surging resistance: 300VAC surging resistance. When voltage is not stable, high voltage might damage the power supply. This series of product could undergo 300VAC for 5 seconds.


⑥ Small size and light weight: which facilitates easier installation and maintenance.


3. Product Specifications

About Input
Input Voltage Range 180-264VAC/230-373VDC
Input Current 3.3A (220VAC)
Efficiency 88%-90%
Leak Current <3.5mA/240VAC


About Output

Output Voltage 36VDC (can be customized)
Output Precision ±2%
Rated Output Current 20A
Output Current Range 0-20A
Output Capacity 720W
Output Voltage Adjustment Range ±10%


About Protection Functions
Over-load Protection This function would work if the load is 105%-135% of rated capacity
Over-voltage Protection This function would work if the voltage is over the rated one
Over-temperature Protection If the temperature of rectifier tube is over 85℃±5%, the power would be cut off automatically
Short Circuit Protection When there happens short circut, the power would be cut off automatically


About Environment and Standard
Working Temperature -10℃~60℃
Storage Temperature -20℃~85℃
Working Humidity 20%~90%
Storage Humidity 10%~90%
Safety Standard UL1012
EMC Standard EN55022, CLASSA


About Size and Weight
Size 238*124*65MM
Weight 1.5kg

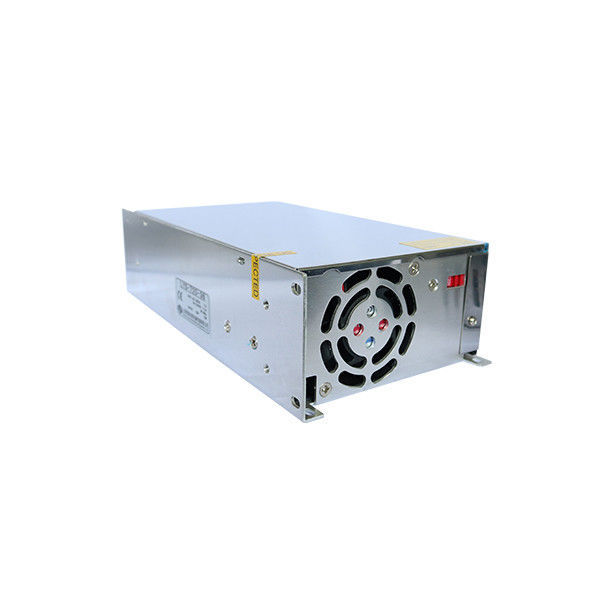

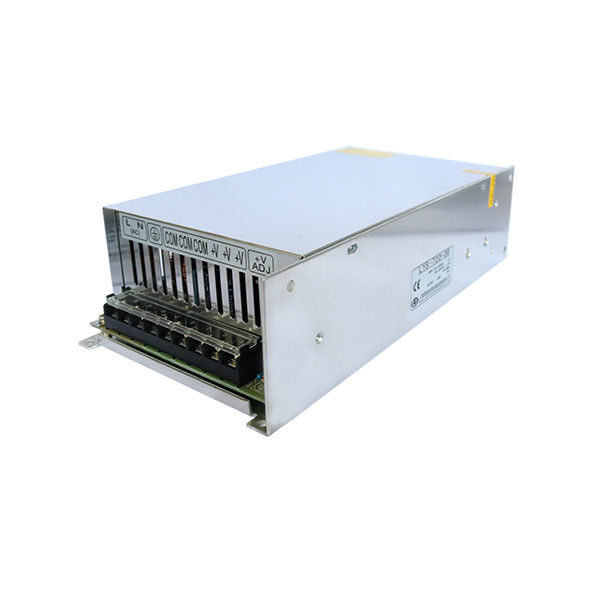

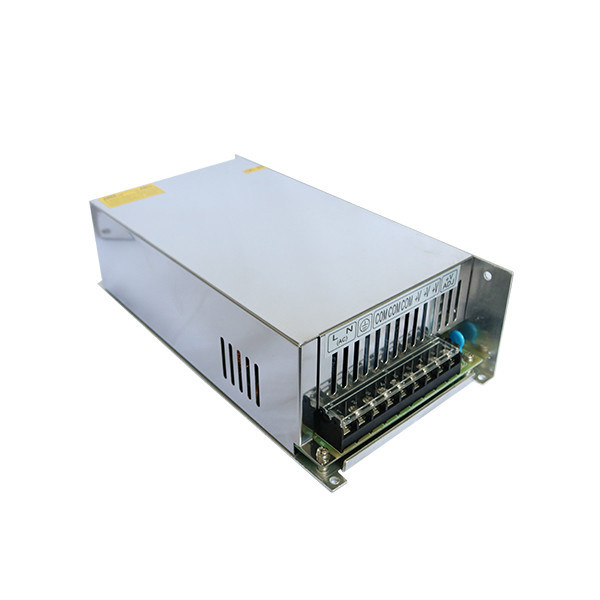

4. Product Show


High Efficiency AC DC Switching Power Supply Module 220VAC To 36VDC 20A 0
