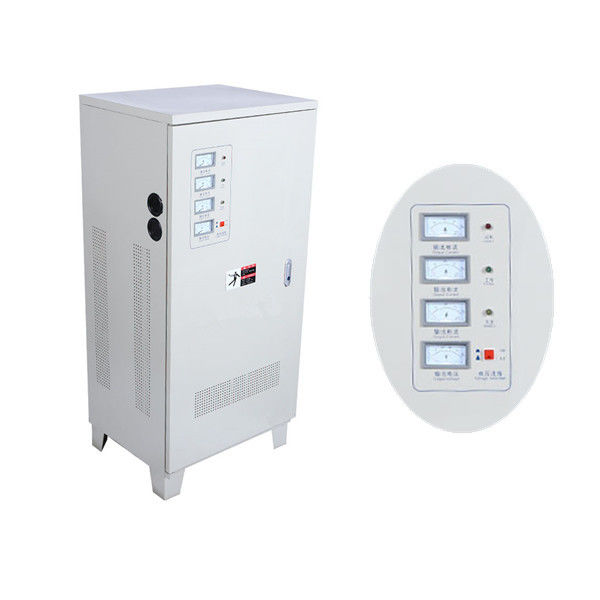

Three Phase Vertical Volt Stabilizer 60KVA 50Hz 60Hz With Meter Dispalys

Three Phase Vertical Volt Stabilizer 60KVA 50Hz 60Hz With Meter Dispalys

auto voltage regulator

auto voltage stabilizer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power


CE, ISO: 9001

Model Number:


Contact Us
Request A Quote
Product Details
Three Phase AVR Voltage Stabilizer
170kg For Reference
Input Voltage:
Output Voltage:
380V ±2%, ±3% Or Tailored
Installation Way:
Power Factor:
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Wooden Case
Delivery Time
Payment Terms
Supply Ability
200 pcs per Month
Product Description

Three Phase Vertical Volt Stabilizer 60KVA 50Hz 60Hz With Meter Dispalys


1. Quick Details


AVR voltage stabilizer: Automatic Voltage Regulator Voltage Stabilizer

Model: TNS(SVC)-60KVA

Rated power capacity: 60KVA

Rated working frequency: 50Hz or 60Hz is acceptable

Input voltage: 380V±20% (could be tailored according to customers' demand)

Output voltage: 380V±2% (could be tailored according to customers' request)

Place of origin: Shanghai, China

Brand name: Ewen Electrical

Phase: three phase

Current type: AC

Color: silver encclosure or customized according to your demand

Language: English, Chinese or other languages


2. Working Theory


This AVR voltage stabilizer's major components are servo motors, copper regulating coils, compensating coils, automatic control circuit, carbon brush, enclosure and other important and necessary parts.


The working theory of the stabilizer is as follows:


When the voltage fluctuates or the load varies, the automatic control circuit would give out signals to the servo motors. Thus the servo motors would drive the carbon brush to adjust its position to maintain stable output voltage.


3. Competitive Advantages


① High Efficiency ② High Power Factor
③ High Precision ④ Full automatic
⑤ Distortionless Waveform ⑥ Sound Performance
⑦ Over-voltage Protection ⑧ Under-voltage Protection
⑨ Short Circuit Protection ⑩ Strong Load-bearing Capability


4. Applications


① Factory workshops: it's very common that the voltage is not stable in a factory with many electrical equipments and appliance. So AVR voltage stabilizer is often used in factory workshops to ensure the normal performance of the electrical equipments.


② Medical device: in hospital, the voltage stability is crucial for some medical device. So when the voltage is not steady, a voltage stabilizer should be applied to facilitate the normal work of the device.


③ Large shopping malls: in those shooping centers, there are many stores which needs large electricity-consumption. As a result, the voltage fluctuation often happens suddenly. To ensure the normal lighting and normal performance of the equipment inside the shopping mall, an AVR voltage stabilizer is necessary.


④ Fast-speed railway: the voltage often fluctuates in these areas, which make an AVR voltage stabilizer is a necessity.


5. Products Recommendation


Three phase high precision voltage stabilizer

Single phase voltage stabilizer for household appliances

AVR voltage stabilizer for air conditioner

AVR voltage stabilizer for refrigerator

AVR voltage stabilizer for industrial use

High power compensation voltage stabilizer

Full automatic voltage regulator

Silicon-controlled voltage stabilizer with no noise and high accuracy

Static voltage stabilizer

AC power voltage stabilizer

Automatic voltage regulator

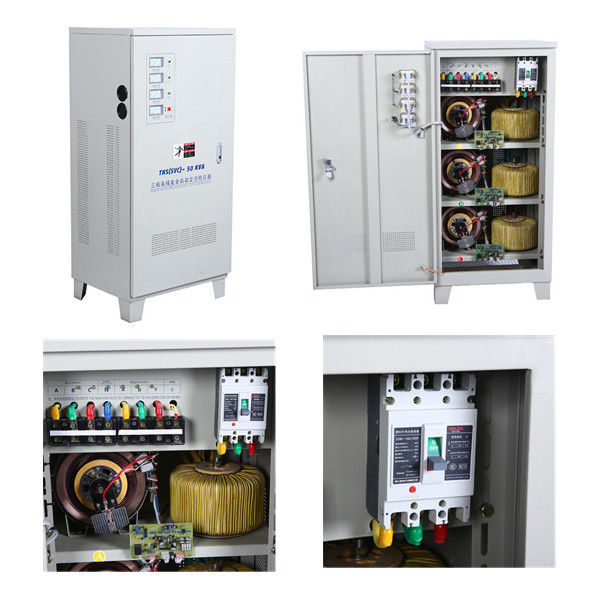

6. Details show


Three Phase Vertical Volt Stabilizer 60KVA 50Hz 60Hz With Meter Dispalys 0

 See this moulded case circuit breaker, it could protect the stabilizer from damages. It would cut off the current flow if the current exceeds the tripping volume set by us.
