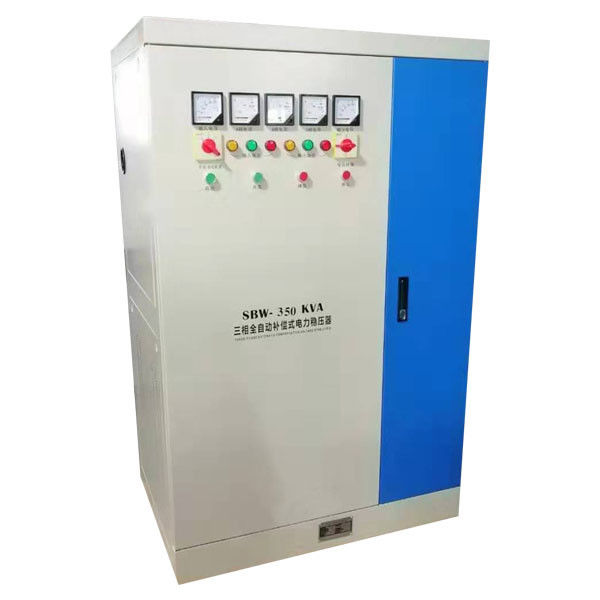

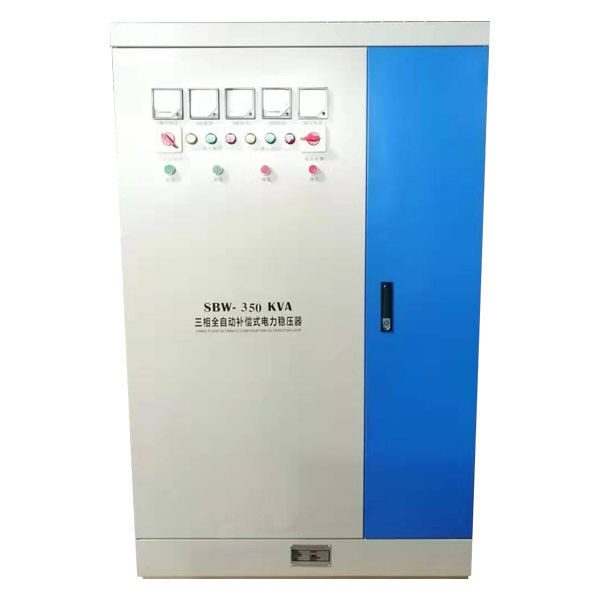

350KVA 380V AVR Voltage Stabilizer Three Phase Automatic Regulator 50Hz

350KVA 380V AVR Voltage Stabilizer Three Phase Automatic Regulator 50Hz

auto voltage regulator

avr voltage regulator

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power/OEM/ODM

Certification:

CE, ISO:9001

Model Number:

SBW-350KVA

Contact Us
Request A Quote
Product Details
Item:
AVR Voltage Stabilizer
Power:
350KVA
Phase:
Three Phase
Feature:
Full Automatic
Frequency:
50Hz
Output:
380V/AC
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Standard Export Wooden Case
Delivery Time
According to Quantity
Payment Terms
T/T,
Supply Ability
200 pcs per Month
Product Description







AVR Voltage Stabilizer 350KVA 380V Three Phase Automatic Regulator 50Hz





1. Product Introduction



The 350KVA AVR voltage stabilizer described here is also referred to as AVR voltage regulator or high power voltage stabilizer. The input and output voltage could be customized according to your needs. Also, the appearance including the size, the color of the enclosure, the design of the enclosure, and the thickness of the enclosure all could be tailored according to customers’ needs.



Except these points mentioned above, the brand of electronic components and the major material could be designated by customers.





2. Product Parameters



Please know more about the product through the detailed parameters listed below:



Product name AVR voltage stabilizer Product model SBW-350KVA
Product capacity 350KVA Phase 350KVA
Working frequency 50Hz/60Hz Working efficiency 80%-90%
Working temperature -15~45℃ Working altitude <2000m
Insulation class Class F Di-electrical strength 2000VAC/MIN
Size 1100*850*1800mm Weight 700kg
Working noise <60db Working humidity 20%-90%
Protection functions designed Over-voltage, over-current, over-load, under-voltage, phase failure etc.
Load bearing ability 120% of rated capacity/15 seconds
Features High accuracy, full automatic operation, fast reaction speed, strong load bearing capability, brand-new components, strong electricity conductivity, easy maintenance, long lifetime etc.





3. Product Applications



Three phase high power AVR voltage stabilizer is mainly used for large-capacity electrical equipment. It could be applied in any country, no matter what the three phase voltage is (It could be customized according to the voltage at spot).



It could be applied with various electrical equipment, including high power printing machine, large motor, large lifter, large-power laser-cutting machine, air compressor, and any electrical equipment that needs stable voltage supply for it to work normally.



It also could be used as a general power supply to provide stable voltage for many electrical equipment, not single one machine. When there are many electrical equipment, you need to calculate all the loads together and purchase a stabilizer with large capacity to bear all the loads.





4. Product Display



The pictures below show different parts of the voltage stabilizer.



350KVA 380V AVR Voltage Stabilizer Three Phase Automatic Regulator 50Hz 0



This picture show two major components of this voltage stabilizer: voltage regulation copper column and voltage compensation transformer.



350KVA 380V AVR Voltage Stabilizer Three Phase Automatic Regulator 50Hz 1



The copper column for voltage regulation.



350KVA 380V AVR Voltage Stabilizer Three Phase Automatic Regulator 50Hz 2



The transformer for voltage compensation.



350KVA 380V AVR Voltage Stabilizer Three Phase Automatic Regulator 50Hz 3



The servo motor and the drive chain to suppot the movement of carbon brush along the surface on the copper column.



350KVA 380V AVR Voltage Stabilizer Three Phase Automatic Regulator 50Hz 4



The carbon brush moving along the copper column surface.



350KVA 380V AVR Voltage Stabilizer Three Phase Automatic Regulator 50Hz 5



Copper column, transformer, servo motor, drive chain, knife swith, circuit control board, displaying meters and indication lights.
