3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity

3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity

auto voltage regulator

avr voltage regulator

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power/OEM/ODM

Certification:

CE, ISO:9001

Model Number:

TNS(SVC)-45KVA

Contact Us
Request A Quote
Product Details
Item Name:
Voltage Stabilizer
Product Model:
TNS-45KVA
Rated Capacity:
45KVA
Voltage Stabilization:
380V 400V 415V 440V Etc.
Working Frequency:
50Hz
Regulation Method:
Automatic
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Standard Export Wooden Case
Delivery Time
According to Quantity
Payment Terms
T/T,
Supply Ability
400 pcs per Month
Product Description







AVR 3 Phase Voltage Stabilizer Automatic Regulation 50Hz 380V 400V 415V 440V





1. Product Parameters



Product name AVR voltage stabilizer/Regulated Power Supply
Product model TNS-45KVA
Rated power 45KVA
Phase 3 Phase
Rated frequency 50Hz-60Hz
Rated input voltage 380VAC±20% or tailored
Rated output voltage 380VAC or tailored
Input current 68A (based on the voltage)
Output current 68A (based on the voltage)
Output precision ±2%
Insulation class F
Protection class IP 23 or higher class as you demanded
Di-electrical strength 2000VAC/MIN
Working noise <60db
Appropriate working temperature -15~45℃
Appropriate working altitude <2000m
Appropriate relative humidity 20%-90%
Weight 150kg
Protection functions over-current, over-load, over-voltage, under-voltage, short circuit etc.
Warranty One year
Technical support Yes





2. Product Advantages



Brand-new material: all the components are brand new material.



High precision: the output voltage precision is ±2% of the rated one.



New design: this 30KVA AVR voltage stabilizer is the latest one with new enclosure design,LCD display screen and new wiring design.



Fast response: this voltage stabilizer reacts quickly to voltage fluctuation, with one to two seconds normally.



Strong load-bearing capability: with 45KVA rated capacity, it has a large load bearing capability, which could satisfy your needs of industrial use.



Easy installation, application and maintenance: it's very convenient for you to install the product, use it and maintain it.





3. Product Display

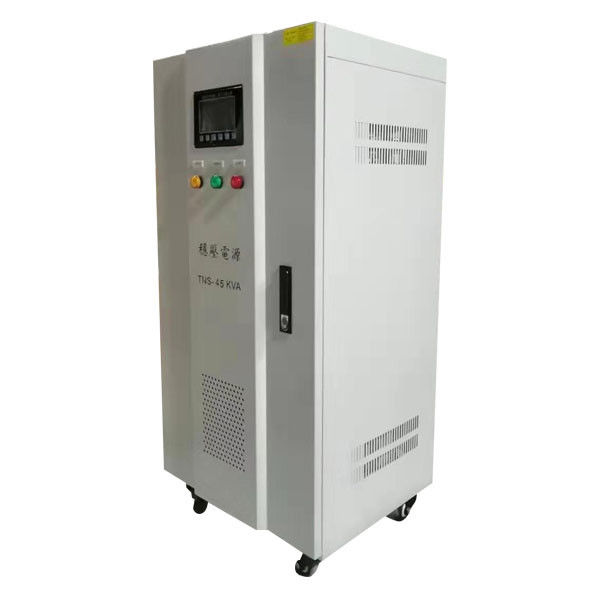

The following picture shows the external and internal design of this three phase 45KVA AVR voltage stabilizer:



3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity 0



3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity 1

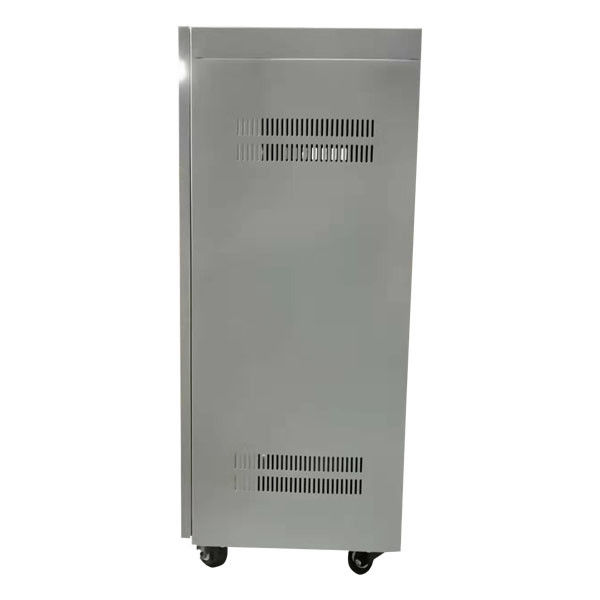

These two pictures show the back sides of this 45KVA voltage stabilizer. You could find that it's very easy for you to move this machine due to its omni-directional wheels. Besides, it's convenient to dismantle the back door because there are two buckles there. The buckles are shown on the floowing picture:



3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity 2



3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity 3

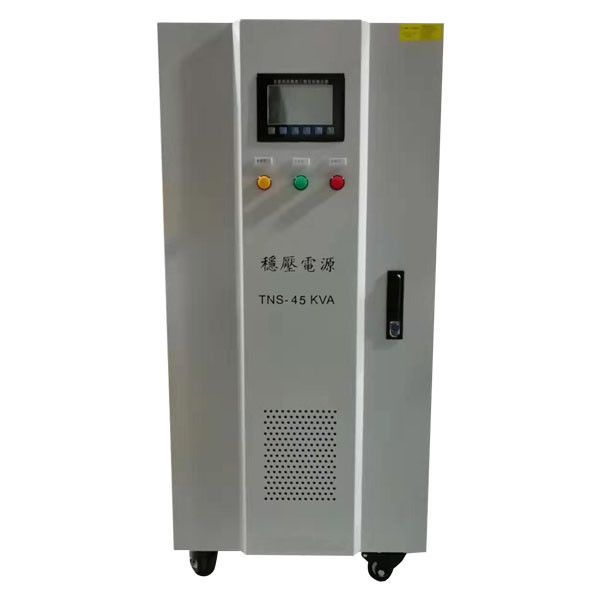

The product name and model here. English version could be printed.



3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity 4



The LCD display screen and the indication lights. It's very convenient for you to read data. English version could be provided.



3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity 5

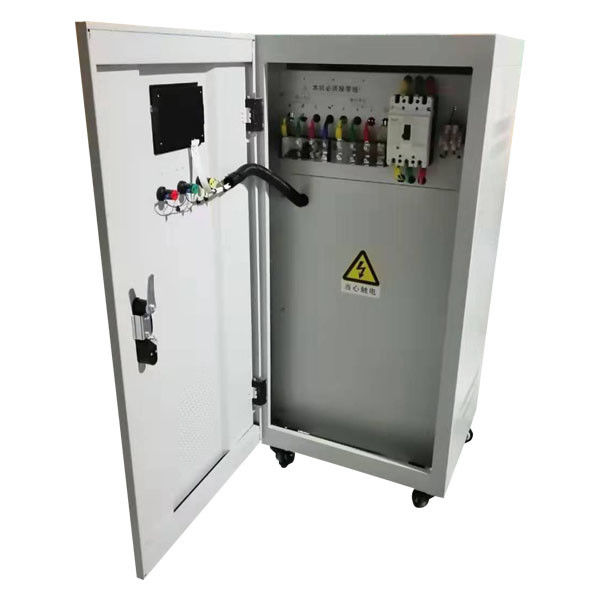

This picture shows the wiring position and wiring terminals, also the AC contactor.



3 Phase AVR Voltage Stabilizer Automatic Regulation 50Hz 45KVA Rated Capacity 6



The ventilation design on one cabinet door.



4. Tests Before Shipment



Quality control and inspection is very important for manufacturing company. Our products would be inspected before shipment. The following items would be examed carefully:



Product appearance



Product performance: including input voltage range, output voltage, LCD data dispaly, load test, no-load test, insulation resistance test etc.



Related lables and instructions



Product package
