150KVA 50HZ AVR Voltage Stabilizer Three Phase For Industrial Use Thailand

Place of Origin Shanghai, China
Brand Name Ewen Power
Certification CE, ISO:9001
Model Number SBW-150KVA
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Wooden Case
Delivery Time According to Quantity
Payment Terms T/T,
Supply Ability 200 pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name Three Phase AVR Voltage Stabilizer Item Model AVR-SBW-150KVA
Insulation Class F Insulation Resistance ≥2 MΩ
Power Factor 98% Working Mode Automatically Stabilizing Voltage
Highlight

auto voltage regulator

,

avr voltage regulator

Leave a Message
Product Description

150KVA 50HZ AVR Voltage Stabilizer Three Phase For Industrial Use Thailand



1. Basic Parameters



Item name: Three phase high power AVR voltage stabilizer

Item model: AVR-SBW-150KVA

Product brand: Ewen

Input voltage: 304V to 456V or tailored

Output voltage: 380V±2%

Output accuracy: ±2% or customized if higher accuracy is needed

Input current: 227A

Output current: 227A

Power factor: 98%

Rated frequency: 50Hz

Ambient temperature: -15℃~45℃

Insulation Class: F

Protection Class: IP20 or higher if needed

Function: stabilizing voltage at 380V for industrial use in Thailand



2. Product Introduction

AVR series AC three phase high power compensation voltage stabilizer is a power supply product. It is designed and developed by combining international advanced technology and our own conditions. It can keep the output voltage stabilized at 380V or a certain value while the input voltage changes.



This voltage stabilizer's rated capacity is 150KVA. It is designed for Thai's industrial factories and plants and relevant places where needs stable voltage. The input voltage ranges from 304V to 380V while the output voltage could be stabilized at 380V. The output accuracy is ±2% normally. Also, higher accuracy could be customized if needed.



3. Product Features


This AVR voltage stabilizer has a lot of competitve features. Please see them in the follwoing description:



① It has no addtional waveform distortion.

② It could bear any kind of loads, whether capacitive load or inductive load.

③ It has a very high working efficiency. It's up to 98%. The power factor of this stabilizer is very high.

④ Its output accuracy is very high. It could be ±2% or even better if needed.

⑤ It's full automatic. When the input voltage fluctuates, the output voltage could be stabilized at 380V automatically. You don't have to adjust it manually.

⑥ Multiple protection functions: over-voltage, under-voltage, short circuit, over-current, over-load, phase failure, and time delay etc.

⑦ LCD display is more convenient for you to get various data, like input and output voltage, the working current, the working conditions of the stabilzier etc.

⑧ Its maintenance cost is very low if you use it in a proper way. It could work normally for ten years or even longer time.



4. Product Recommendation



As for the stabilzier products, there are many kinds of types. Please get a product type profile through the following chart:



Product Type (Stabilizer) Rated Capacity
Three Phase Voltage Stabilizer TNS Series, 3KVA~100KVA
Three Phase High Power AVR Voltage Stabilzier SBW Series, 50KVA~3000KVA
Single Phase Voltage Stabilzier TND Series, 500VA~50KVA
Single Phase High Power AVR Voltage Stabilizer DBW Series, 50KVA~200KVA
Three Phase Purified Voltage Stabilizer JSW Series, 3KVA~125KVA
Single Phase Purified Voltage Stabilizer JJW Series, 1KVA~30KVA
Three Phase Non-contact Voltage Stabilizer ZBW Series, 10KVA~1000KVA
Single Phase Non-contact Voltage Stabilizer ZDW Series, 1KVA~60KVA
Single Phase Wall-mounted Voltage Stabilizer TSD Series, 3KVA~10KVA



Besides, there are some other products recommended except the stabilizer series: transformer series, AC DC swtiching power supply series, dry-type reactor series, and UPS series etc.



5. Why Choose Us



①High-quality products: with delicate components, this stabilizer is of high quality.

②Excellent performance: the output precision is ±2%; the response time is less than one second.

③Inexpensive price: we are manufacturer ourselves. So the price is relatively inexpensive compared to other suppliers.

④Comprehensive aftersale services: we provide a one-year warranty period for all customers. And also, we would respond to your questions within 48 hours as long as you put forward your questions.



6. Product Display

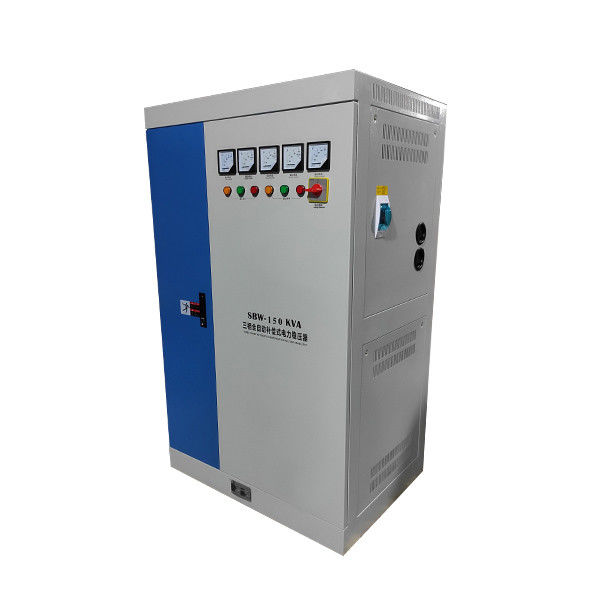

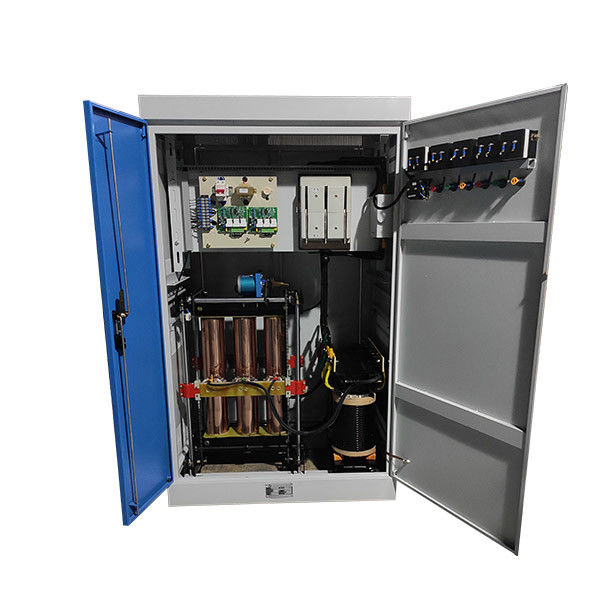

150KVA 50HZ AVR Voltage Stabilizer Three Phase For Industrial Use Thailand 0
