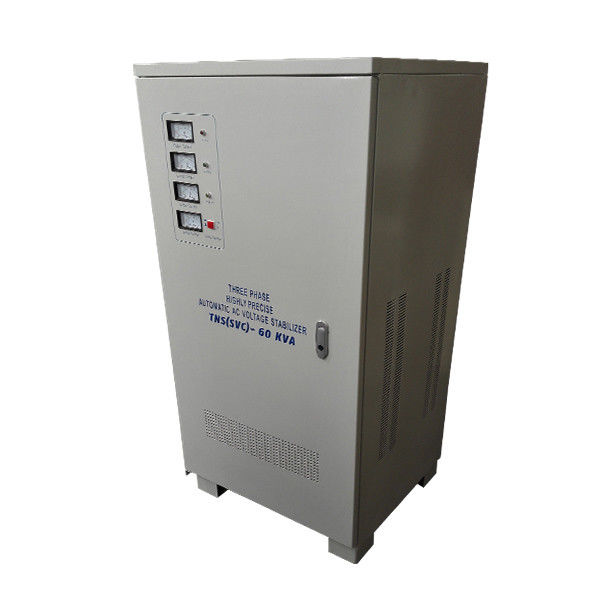

AC 3 Phase Voltage Stabilizer 60000VA For Printing Machine 47Hz - 63Hz

1 pc
MOQ
Negotiation
Price
AC 3 Phase Voltage Stabilizer 60000VA For Printing Machine 47Hz - 63Hz
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: Ewen Power
Rated Capacity: 60000VA
Response Time: <1s When Voltage Fluctuates Within 10%
Working Efficiency: 98%
Temperature Rise: Less Than 80℃
Display: Analog Meters
Highlight:

auto voltage regulator

,

auto voltage stabilizer

Basic Infomation
Place of Origin: Shanghai, China
Brand Name: Ewen Power
Certification: CE, ISO: 9001
Model Number: TNS(SVC)-60KVA
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: Negotiation
Payment Terms: T/T,
Supply Ability: 500 pcs per Month
Product Description

AC 3 Phase Voltage Stabilizer 60000VA For Printing Machine 47Hz - 63Hz

1. Product Parameters

In order to give you the best price, please kindly specify your requirements as clear as possible. OEM and ODM is welcome, we have professional and experienced engineer team for you.



Product Name Three Phase AVR Voltage Stabilizer Product Brand Ewen
Product Model TNS(SVC)-60KVA Voltage Phase

Three

Phase

Rated Capacity(KVA) 60 Rated Frequency(Hz) 47 to 63
Input Voltage Range 380V±20% or wider as your request Output Voltage(V) 380
Input Current(A) 91 Output Current(A) 91
Response Time(s) <1 Insulation Class F
Output Precision(%) ±2 Protection Class(IP) 20
Insulation Resistance(MΩ) ≥2  Product Efficiency(%) 98
Altitude(M) <1500 Temperature(℃) -10~40
Function Voltage Stabilization Waveform Distortion No
Weight 160kg Size(cm)

55*

46*

120

Loads Inductive, Capacitive, Resistant loads


2. Product Description:



This product, "60000VA Three Phase AVR Voltage Stabilizer for Printing Machine 47Hz to 63Hz" belongs to TNS Series. It's a three phase AVR AC voltage stabilizer. It is composed of regulator, servo motor, automatic control circuit, carbon brush, voltmeters, ampere meters, and enclosure etc. When the voltage of the power supply is not stable or the load varies, the automatic sampling control circuit gives out a signal to drive the servo motor to adjust the position of the carbon brush of the regulator so as to make the output voltage stable. This could ensure the normal function of the electrical equipment. It has various protection functions: over-voltage, short circuit, over-current, over-load, under-voltage, time delay etc.

3. Product Testing


Before the product leaves the factory and is shipped to the destination, every AVR voltage stabilizer must pass a series of rigorous tests performed with various relevant equipment.



① Checking appearance: this step is done through visual check.
② Input voltage regulation range, output voltage and output accuracy: this is done by regulating the input voltage while moderating the output voltage.
③ Insulation resistance and withstand voltage strength: this also be done before shipment.
④ Protection functions: over voltage, under voltage, short circuit, over load etc. would be tested accordingly.



4. Trade Terms



MOQ: 1 Unit

Design Capability: OEM and ODM are available

Certification: CE, ISO9001

Pakaging: Export Pakaging

Payment Terms: T/T, L/C, and so on.

Delivery Time: 7-10 days normally after receiving your order. If large quantity, it depends on the specifications of the product.

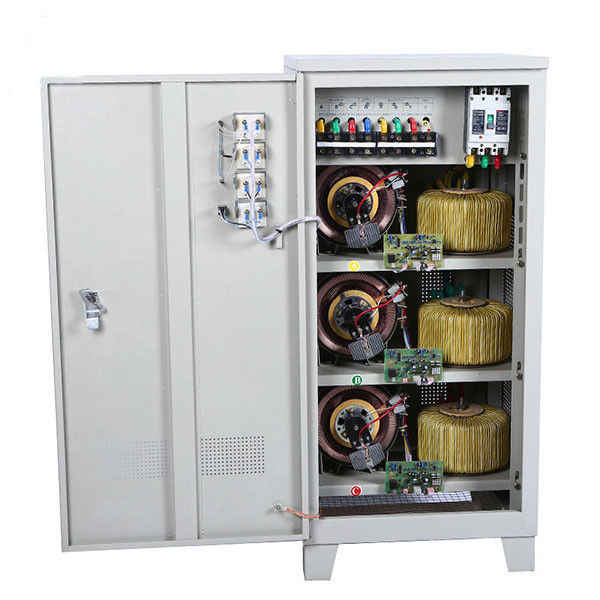

5. Components Diagram:
 AC 3 Phase Voltage Stabilizer 60000VA For Printing Machine 47Hz - 63Hz 0

Please get the different parts of the stabilizer through the picture above. If you have any question, please feel free to contact us.
